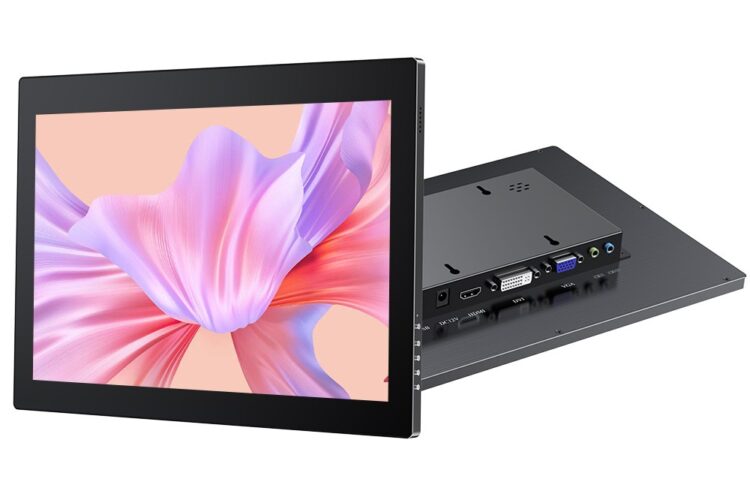

12″ to 13″ Portable VGA Monitor 3:2 DVI Touch Screen HDMI Compatible Display
With a 3:2 display ratio, this VGA Monitor has a 10-point Multi-Touch Capacitive Touchscreen, HDMI and DVI Input, a resolution of 1920×1280 in 12″, an IPS Screen, and Built-in Speakers. The portable monitor can be connected to many devices with HDMI, VGA, and DVI ports, including computers, laptops, Macs, game consoles, and raspberry pi.
It also works as UAV Monitor, SBC Monitor, CCTV Security Monitor, FPV Display, and Microscope Monitor. The function of touchscreen functions when the monitor is connected to your computer/laptop/raspberry pi via a USB cable. Slim and Lightweight monitor with a sleek and metallic finish. The monitor can be wall-mounted via 75mm×75mm VESA ports or settled on the desktop with the stand.
Specifications | ||
Brand | UPERFECT | UPERFECT |
SKU | 123B03 | 133B05 |
Item | 12.3 Inch Portable Monitor | 13.3 Inch Portable Monitor |
Screen | ||
Refresh Rate | 60Hz | 60Hz |
Screen Size | 12.3 inch | 13.3 inch |
Resolution | 1920*1280 | 1920*1080 |
Display Ratio | 3:2 | 16:9 |
Viewing Angle | 178° | 178° |
Panel Type | IPS | IPS |
Contrast Ratio | 1200:1 | 1000:1 |
Brightness | 400 cd/m² | 350 cd/m² |
Color Gamut | 100% sRGB | 100% sRGB |
Color Depth | 16.7M(8bit) | 1.07B(10bit) |
Viewable Area (mm) | 259.2 × 172.8 mm (10.2 × 6.8 inch) | 293.76 × 165.24 mm (11.57 × 6.51 inch) |
Physical | ||
Material | Aluminum | ABS |
Product Size | 293 × 207 × 30 mm (11.54 × 8.15 × 1.18 inch) | 304 × 193 × 26 mm (11.97 × 7.6 × 1.02 inch) |
Net Weight | 0.81 kg (1.79 lbs) | 0.49 kg (1.08 lbs) |
Rated Power | 10W | 10W |
Interface | 1 × HDMI for Audio & Video Input 1 × VGA for Video Input 1 × DVI for Video Input 1 × 12V 2A DC for Power Input 1 × Mirco USB for Touch Screen 1 × 3.5mm AUX for audio output |
1 × HDMI for Audio & Video Input 1 × VGA for Video Input 1 × DVI for Video Input 1 × 12V 2A DC for Power Input 1 × USB-B for Touch Screen 1 × 3.5mm AUX for audio output |
Advanced | ||
Touch Screen | Yes(10-Point Capacitive Touchscreen) | Yes(10-Point Capacitive Touchscreen) |
Built-in Battery | No | No |
Gravity Sensor | No | No |
Built-in Speakers | Yes, two speakers 8Ω 1W | Yes, two speakers 8Ω 1W |
Vesa | No, Mounting Hole | Yes(75*75mm@M3*6mm) |
Driver Free | Yes | Yes |
Stand Holder | Yes, Stand Holder | No |
Cover Case | No | No |
What’s in the box?
123B03:
1 × UPERFECT Portable Monitor
1 × HDMI to HDMI Cable
1 × Mirco USB Touch Cable
1 × Stand Holder & Screw
1 × Power Adapter
1 × Manual
133B05:
1 × UPERFECT Portable Monitor
1 × HDMI to HDMI Cable
1 × USB-A to USB-B Touch Cable
1 × VGA Cable
1 × Power Adapter
1 × Manual
