AIRLink 4G Enterprise – The Most Advanced AI Drone Flight Controller
The Most Advanced AI Drone Flight Controller. AIRLink stands for Artificial Intelligence & Remote Link. The unit includes cutting-edge drone autopilot, AI mission computer, and LTE connectivity. Start your enterprise drone operations with AIRLink and reduce the time to market from years and months to a few weeks.
Explore The Main Features
FPV Video in HD as Standard
AIRLink is equipped with a 1080p HDR camera providing exceptional image quality. FPV camera connector is exposed on the front side, making the integration and camera mounting quick and straightforward in even the most space-constricting UAV designs. Native CSI interface provides the minimum latency physically possible (typically less than one frame, equally 17 ms).
- 1080p HDR
- CSI interface
- FPV camera included
- Front-side camera connector
- Separate HDMI for payload camera

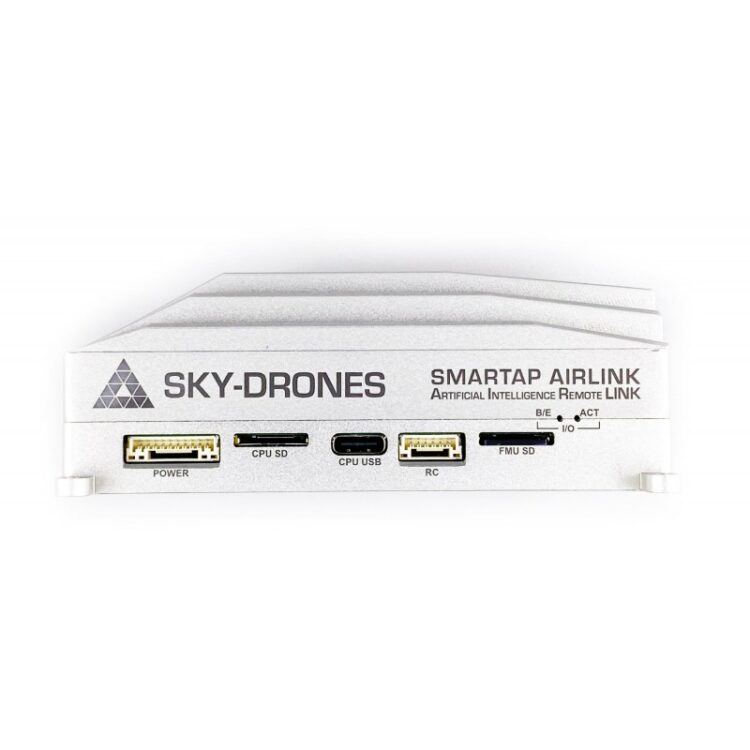

The Name Speaks For Itself – AIRLink – Artificial Intelligence & Remote Link with all interfaces exposed to all sides:
- Power input with voltage & current monitoring
- AI Mission Computer micro SD card
- Flight Controller micro SD card
- AI Mission Computer USB Type-C
- PPM Input, SBUS Output, RSSI monitor

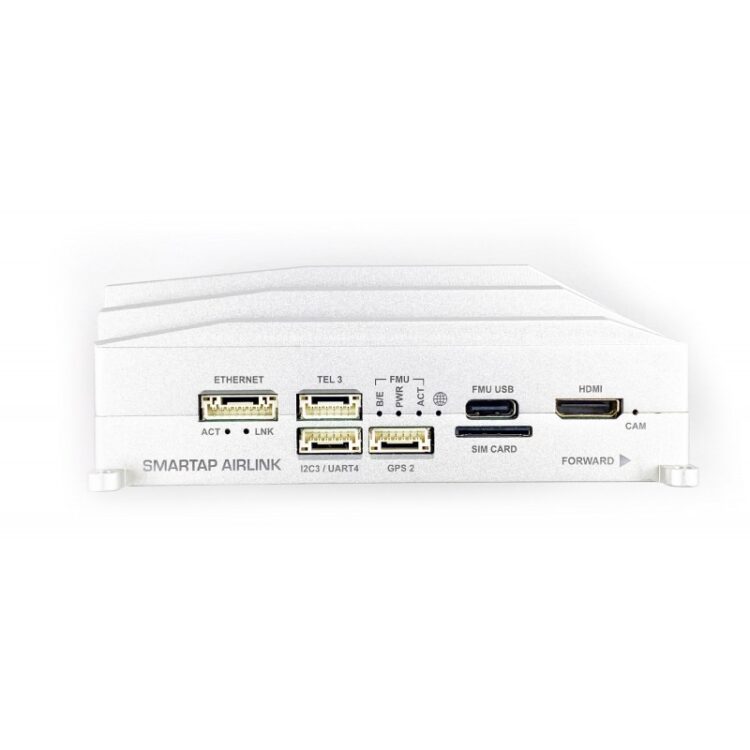

Connectivity And Video – AIRLink is continually connected to the internet but in more ways than one…
- Ethernet Port with a power output
- Telemetry port
- Second GPS port
- Spare I2C / UART port
- Flight Controller USB Type-C
- Micro SIM Card
- HDMI Input port (Payload camera)
Connect Anything – Direct HDR FPV camera connector (included)—redundant CAN bus for critical peripherals.
- Main GNSS and compass port
- Main telemetry port
- CSI camera input
- CAN 1
- CAN 2
Built-in LTE and wifi – Internet connectivity straight from the very first power-up.
- SBUS input
- 16 PWM output channels
- 2x LTE antenna sockets (MIMO)
- Wifi Antenna socket (AP & Station modes)
Detailed Specifications
Just in case you want to know absolutely everything about AIRLink
GENERAL | |
Navigation | Accelerometers, Gyroscopes, Magnetometer, GNSS, Rangefinders, Lidars, Optical Flow, Visual |
IMU | 3x-Redundant Vibration Dampened Temperature Stabilized |
GNSS | GPS, GLONASS, Galileo, BeiDou, RTK (option) |
Flight Modes | Manual, Stabilize, GNSS-Assisted, Autonomous Waypoints, Guided, Terrain Following |
Flight Logs | SD Card up to 256GB |
Temperature | Operating from -40°C up to +50°C |
ECCN | 7E994 |
SUPPORTED VEHICLE TYPES | |
Multirotor | Quad, Hex, Octo Dodeca, Coaxial, Y |
Fixed Wing | Ailerons, Flaps, Elevons V-Tail, H-Tail |
VTOL | Tailsitter Multicopter Planes Tiltrotor |
WEIGHT AND DIMENSIONS | |
Module Weight | 198g |
Module Dimensions | L103 x W61 x H37mm |
FLIGHT CONTROLLER | |
Processor | STM32F765 |
Frequency | 216 MHz |
Flash | 2MB |
RAM | 512 kB |
IMU | 3 Accelerometers, 3 Gyroscopes, 3 Magnetometers, 2 Barometers |
Ethernet | 10/100 Mbps LAN with AI Mission Computer |
UARTs | Telemetry 1, Telemetry 2 (AI Mission Computer), Telemetry 3, GPS 1, GPS 2, Extra UART, Serial Debug Console |
CAN | CAN 1, CAN 2 |
USB | MAVLink Serial Console |
RC Input | SBUS, RSSI, PPM, Spektrum |
PWM Out | 16 Channels |
CONNECTIVITY MODULE | |
Type | 4G UMTS/HSPA(+), GSM/GPRS/EDGE 5G available as an option |
SIM Cards | Integrated eSIM External MicroSIM card slot |
Antenna | 2×2 MIMO |
Bands | EMEA, North America, Australia, Japan, and Other |
DATA TRANSFER | |
Downlink | 150 Mbps |
Uplink | 50 Mbps |
AI MISSION COMPUTER | |
CPU | 6-Core: Dual-Core Cortex-A72 Quad-Core Cortex-A53 |
GPU | Mali-T864, OpenGL ES1.1/2.0/3.0/3.1 |
VPU | 4K VP8/9 4K 10bits H265/H264 60fps Decoding |
Power | Software Reset Power Down RTC Wake-Up Sleep Mode |
RAM | Dual-Channel 4GB LPDDR4 |
Storage | 16GB eMMC 5.1 Flash MicroSD up to 256GB |
Ethernet | 10/100/1000 Native Gigabit |
Wireless (wifi/BT) | 802.11a/b/g/n/ac Bluetooth 2×2 MIMO |
USB | USB 3.0 Type C |
Video | 4-Lane MIPI CSI (FPV Camera) 4-Lane MIPI CSI with HMDI Input (Payload Camera) |
VIDEO | |
Camera Interfaces | FPV MIPI-CSI Camera Input (included) Payload HDMI Camera Input Ethernet IP Based Cameras USB Cameras |
HDMI Input | Native Support with Integrated FPGA Converter |
Video Codec | 1080p 60fps H.264/265 VP8/VP9 |
