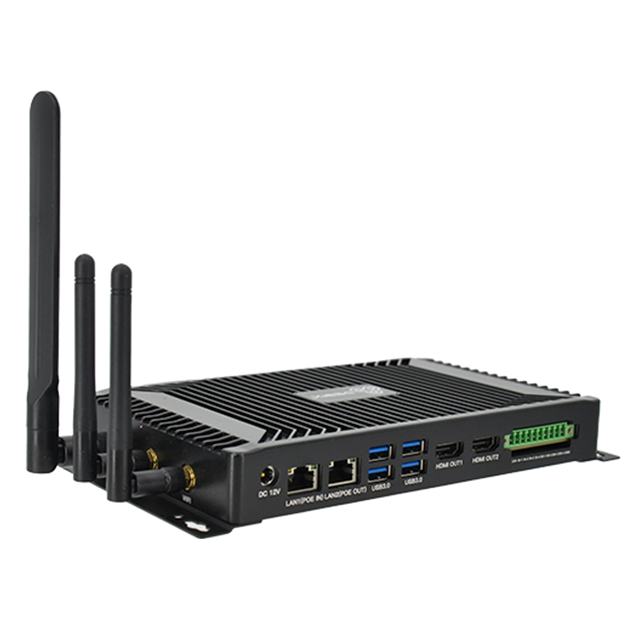

DEBIX BPC-iMX8MP-08 20℃~70℃ Industrial Gateway IPC Based On NXP i.MX8M Plus
BPC-iMX8MP-08 Industrial Computer comprises a DEBIX customized board and an aluminium enclosure. Engineered for industrial applications with a fanless design and compact appearance, it comes with rich isolated interfaces, including 4 x DI, 4 x DO, and 1 x CAN for improved safety. It has strong network connectivity with dual Gigabit Ethernet supporting IEEE 802.3 af POE PSE/PD, 2.4GHz & 5GHz WiFi, and Bluetooth 5.3. It also supports 4G/5G via Mini PCIe. Two HDMI OUT and one LVDS support 4K@30Hz + 1080P@60Hz dual-screen display.
Main Features
- NXP i.MX 8M Plus with 4x ARM Cortex-A53 cores and 2.3 TOPS NPU for AI tasks.
- Dual Gigabit Ethernet ports with PoE, WiFi, Bluetooth 5.3, a Mini PCIe slot for a 4G module, and various antenna options.
- Dual HDMI outputs and LVDS support are needed to connect displays.
- A rich set of I/O includes 6x USB 3.0 ports, a debug port, COM ports, CAN, I2C, SPI, and digital inputs/outputs.
- Fanless design with an aluminum enclosure for harsh industrial environments.
