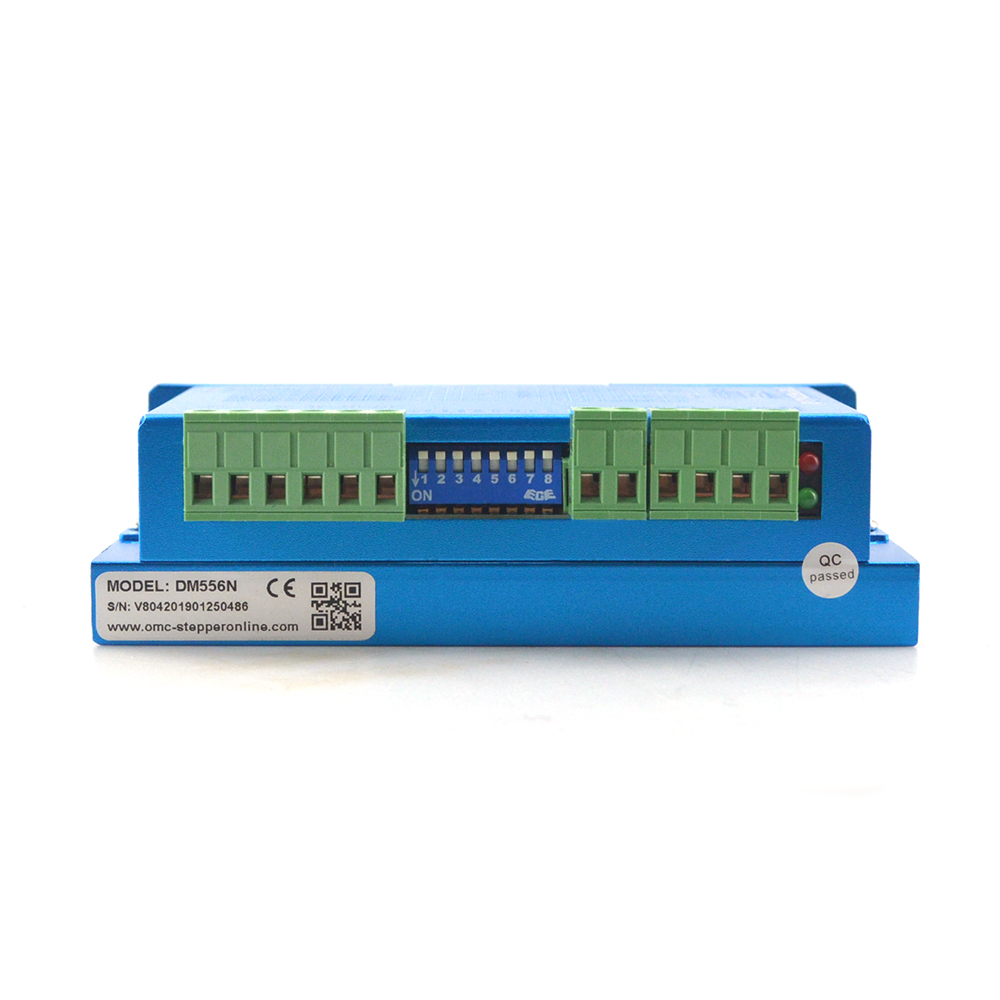

Digital Stepper Driver for Nema Stepper Motor

$43.99 $27.07

The DM556N is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It is especially effective in devices where users expect low cost, low noise. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors.


Made In: United States (US)

By: STEPPERONLINE
SKU: DM556N Categories: , , Tags: , , , , More From:

Digital Stepper Driver 5V-24V Current 1.4-5.6A 15-36VAC/20-50VDC for Nema 17, 23 Stepper Motor

Digital Stepper Driver Low Speed Low Noise Control Signal Voltage 5V-24V Current 1.4-5.6A 15-36VAC/20-50VDC for Nema 17, 23, 24 Stepper Motor
The DM556N is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It is especially effective in devices where users expect low cost, low noise. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors.

Key Features:

Wide control signal voltage range, from +5V to 24V. Can be used directly without any external circuit
Low noise, low motor speed
Average current control, two-phase sinusoidal current output
The servo microstep DSP algorithm, low noise, low vibration
The max. power supply voltage can be 40VAC/50VDC
Output peak current from 1.4A to 5.6A
The standstill current can be set to half
Can drive 4, 6 and 8 wire two-phase, four-phase stepper motors
High-speed optocoupler isolation signal input, pulse response frequency up to 200 kHz
Strong anti-high frequency interference ability
Easy to set output current
Microstep accuracy: 2, 4, 8, 16, 32, 64, 128, 5, 10, 20, 25, 40, 50, 100, 125
Overvoltage, undervoltage, overcurrent, and phase-to-phase short circuit protection
The max motor speed: 500RPM. (Recommend value: 200RPM). If you need higher motor speed, recommend DM556T

Electrical Specifications:

Input Voltage: 20V~50VDC/15~40VAC(Typical value: 36VDC/24VAC)
Output Peak Current: 1.4~5.6A
Max Signal Pulse Frequency: 200KHZ
Control Signal Voltage: +5~24VDC
Control Signal Current: 7~16mA
Isolation Resistance: 500MΩ

Operating Environment and other Specifications:

Cooling: Natural Cooling or Forced Cooling
Environment: Dustproof, anti-oil fog and corrosive gases
Ambient Temperature: 0℃ ~ +50℃
Humidity: 40~90% RH
Maximum Operating Temperature: 70℃
Vibration: 10~55Hz / 0.15mm
Storage Temperature: -20℃ ~ 125℃
Weight: Approx. 280g (9.88oz)
