Excellent Stability, Low Cost and Low Power Consumption Bluetooth Module TS-M1029D

Excellent Stability, Low Cost and Low Power Consumption Bluetooth Module TS-M1029D

Original price was: $30.00.Current price is: $2.66.

This module boasts excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for various customer development projects.


Ships From: China
Supplier: Tecksay SKU: TS-M1029D Categories: , , , Tags: , More From:

Excellent Stability, Low Cost, and Low Power Consumption Bluetooth Module TS-M1029D

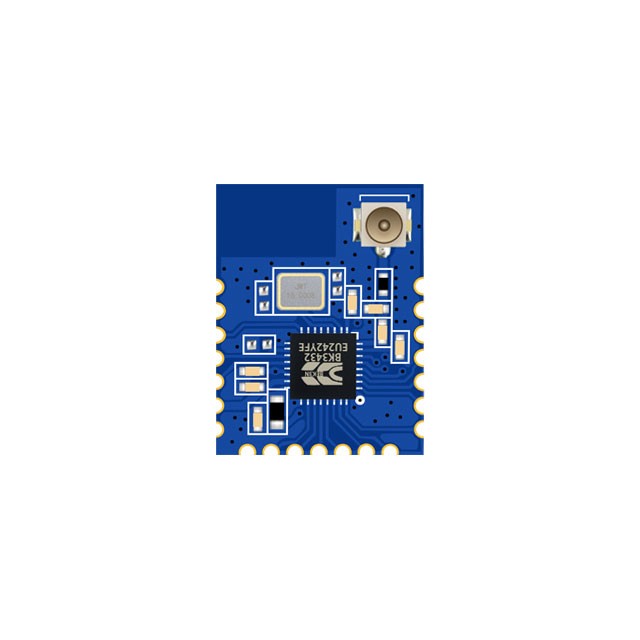

The TS-M1029 is a compact dual-mode Bluetooth module with a Bluetooth 5.0 chip supporting the Bluetooth BLE 4.2 protocol. The dual-mode firmware is compatible with BLE and SPP protocols and supports AT commands. Users can utilize the provided AT commands to customize serial port baud rates, device names, and other parameters. Additionally, the module’s IO ports can be controlled directly through an app by sending data, offering flexible operation and simple usage.

Features

  • Model No: TS-M1029D
  • Bluetooth Version: BLE 4.2 +SPP 3.0
  • Frequency Band: 2.402GHz-2.480GHz ISM band
  • TX Power: -20 dBm ~+4 dBm
  • Receive Sensitivity: -97 dBm
  • Air Rate: 250Kbps/1Mbps/2Mbps
  • Antenna: IPEX Antenna
  • Advise Range: 80m
  • Memory: 160KB FLASH+20KB RAM
  • Size: 17*13*1.5mm
  • Pin/GPIO: 21/16
  • Power Supply: 1.8~3.6V
  • Operating Temperature: -40℃~+85℃
  • Peripheral Interface: UART/SPI/I2C/ADC
  • Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s

Applications

  • Smart home
  • Location tracking
  • Intelligent educational equipment
  • Measurement and monitoring system
  • Industrial sensors and controls
  • Medical equipment monitoring and wireless control
