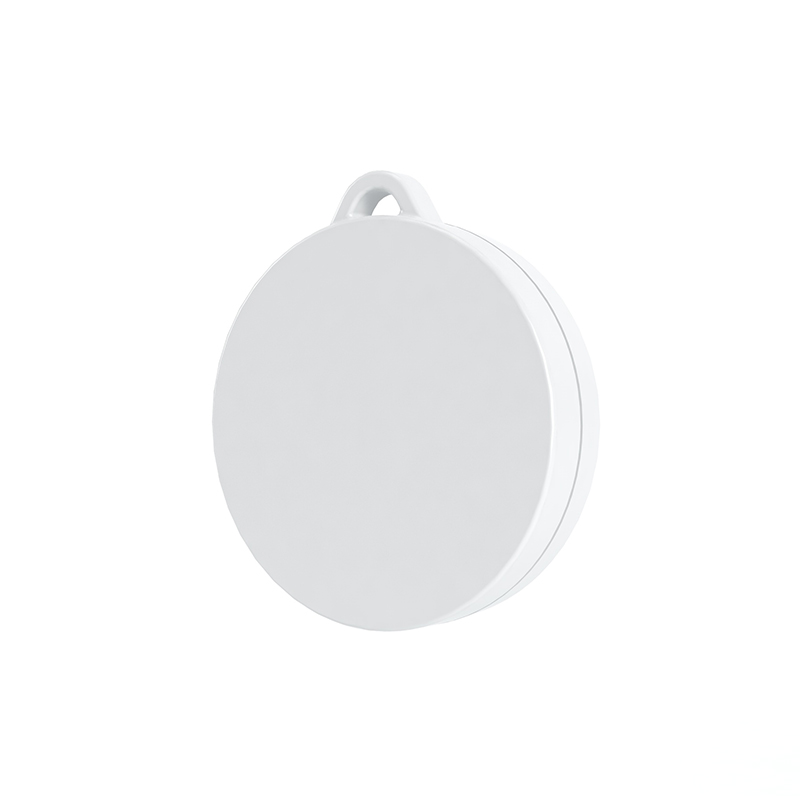

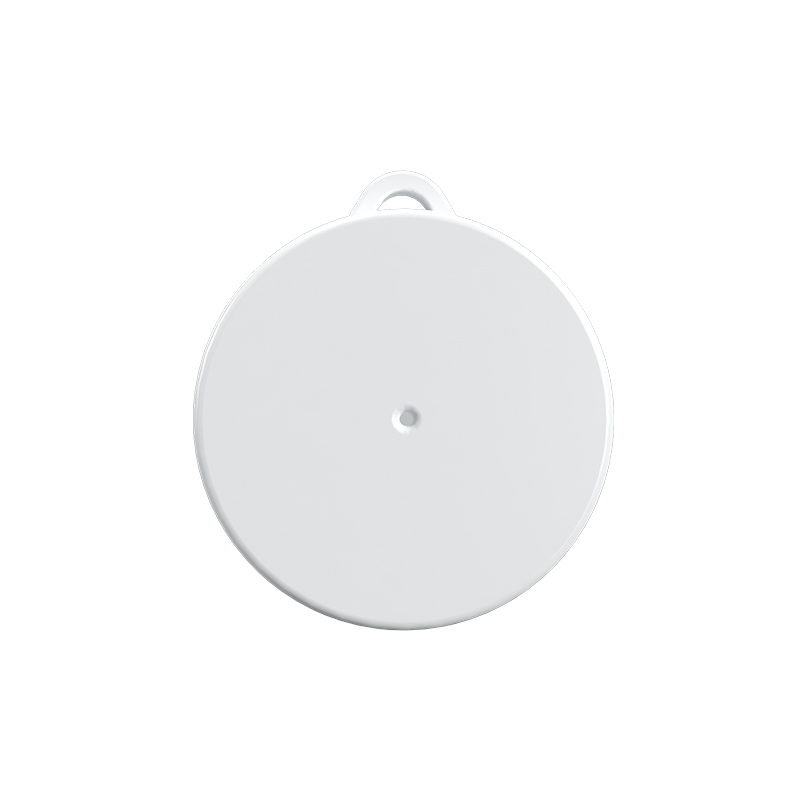

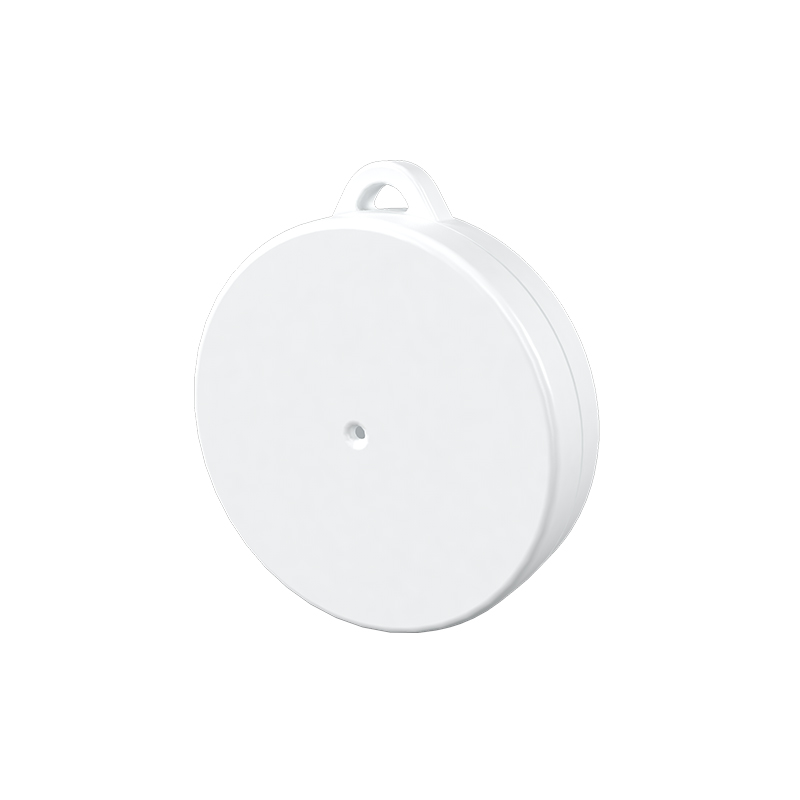

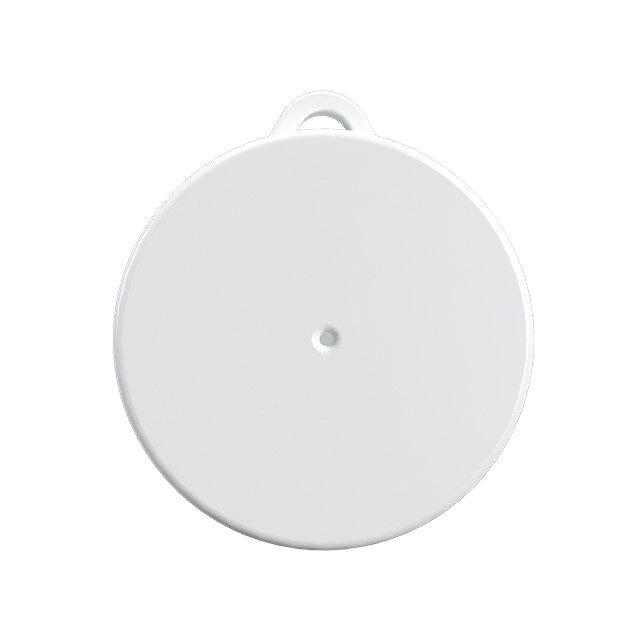

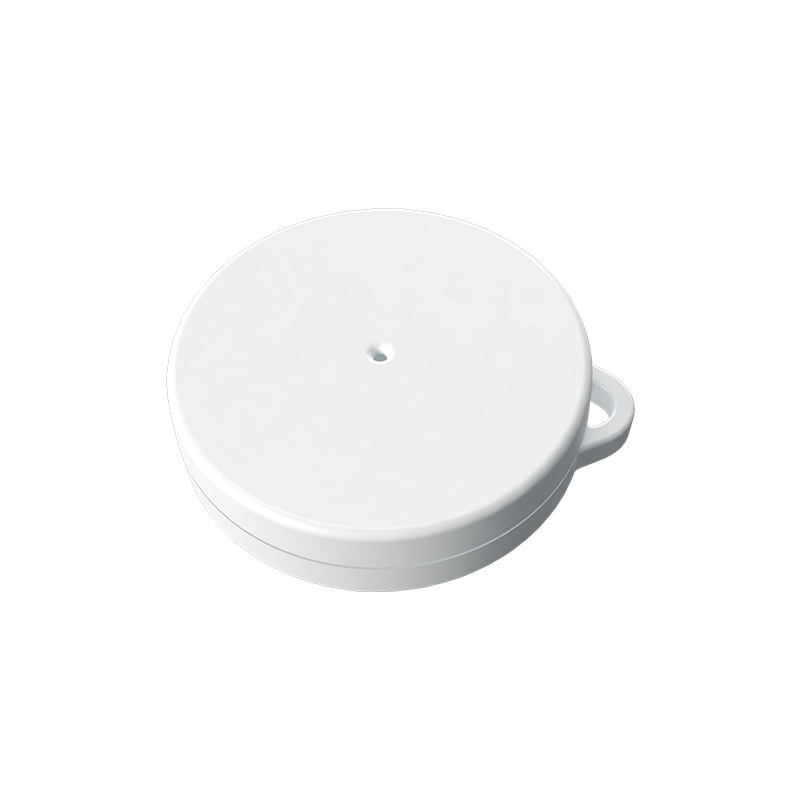

Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121
Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121 - Image 2
Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121 - Image 3
Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121 - Image 4
Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121 - Image 5

Feasycom BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121

$11.99

Temperature and Humidity Sensor Beacon


Ships From: China
Supplier: Feasycom SKU: FSC-BP121 Categories: , , , Tags: , , , , , , More From:

BLE 5.1 Temperature and Humidity Sensor Beacon DA14531 chip FSC-BP121

FSC-BP121 is an IP66 waterproof Bluetooth 5.1 temperature and humidity sensor beacon. It enables real-time monitoring of environmental temperature and humidity near the beacon, with a battery life of up to 280 days. Additionally, it serves as a Bluetooth beacon supporting iBeacon, Eddystone, and AltBeacon profiles. Users can easily configure broadcast data, interval, and transmit power using the FeasyBeacon app. With the free FeasyBeacon SDK, users can effortlessly develop their own applications.

Features

  • Temperature and humidity detection
  • IP66 waterproof protection
  • Renesas / Dialog DA14531 chip, Bluetooth 5.1 version
  • Small size, with push button and LED status light
  • CR3032 coin replaceable battery
  • Broadcast range up to 100m in an open area
  • Real-time detection and broadcast
  • Supports broadcasting iBeacon, Eddystone, AltBeacon, and sensor data simultaneously
  • Broadcast parameters configurable
  • Free App and SDK

Technical Specifications

Chipset Renesas / Dialog DA14531
Bluetooth Version Bluetooth Low Energy (BLE) 5.1
TX Power -19.5 dBm to +2.5 dBm
Temperature Range -20 °C to +60 °C
Humidity Range 0 to 100% RH
Typical Humidity Accuracy 2% RH
Typical Temperature Accuracy 0.2 ℃
LED optional
Button optional
Waterproofing Class IP66
Power Supply CR3032 (550 mAh)
Battery Life 280 days (ADV Interval = 1300 ms; TX Power = 0 dBm)
Material ABS plastic
Size Φ 38mm * H 9.3mm
Net Weight 8.45 g
