Technical Specifications
- Frameless Motor FLO-90-15
- Vacuum Potting Process
- Hall Sensor Incremental Encoder
- +Temperature Sensor
- Nominal Voltage(V):48
- Rated speed(RpM):1600
- Nominal Power(w):252
- Nominal Torque(N.M):1.
$180.00

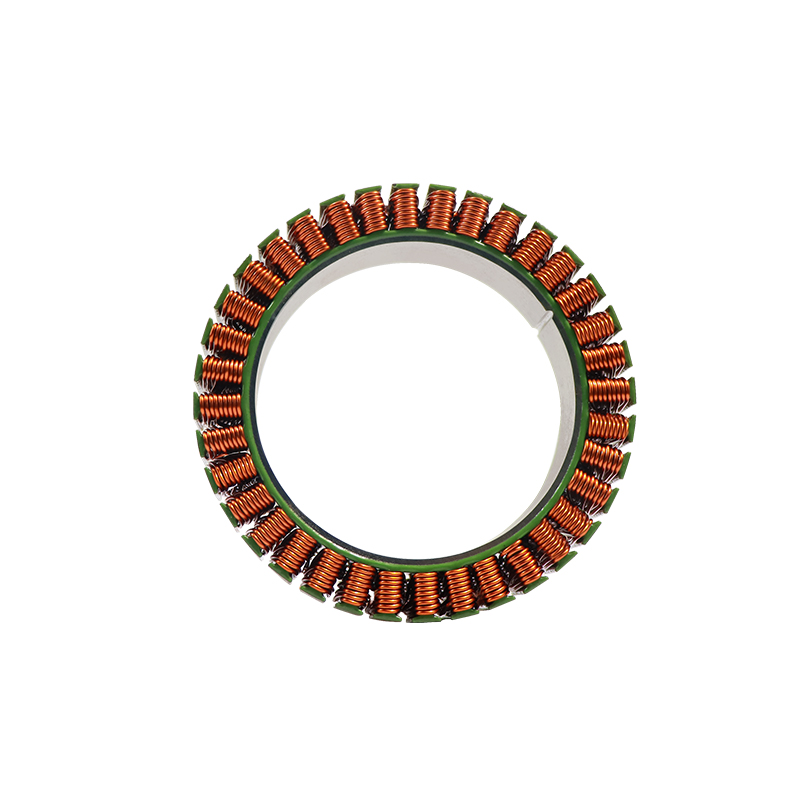

The stator core is integrally coated to improve the fit between the insulation layer and the core and increase the insulation performance of the motor; Integrated epoxy potting process, insulation >F Installation holes are reserved and with a hollow design to optimize the weight of the motor, improve the portability of the motor, and is more conducive to the heat dissipation performance of the motor: high accuracy digital hall semgor presice magnetic encoder embedded integrating sensor and temperature sensor, etc. multiple sensing devices, single-turn accuray of encoder up to 0.01°
Technical Specifications
Weight | 2.4 lbs |
---|---|
Dimensions | 3.9 × 3.9 × 1.9 in |
Only logged in customers who have purchased this product may leave a review.
Suzhou Micro Actuator Technology is an automation service provider that provides BLDC and PMSM motor and drive system solutions. Suzhou Micro Actuator Technology Co., LTD is located in Kunshan. The brand is MyActuator.We hope our motors will be more friendly to users with 3S, Smart, Stable, and Simple. We will try to make the motors for the customer as my actuator. That’s why we name it. MyActuator is a professional in robot actuator and control system design, simulation, development, production, etc. The company has a first-class research and development team and a high-level quality management system.
