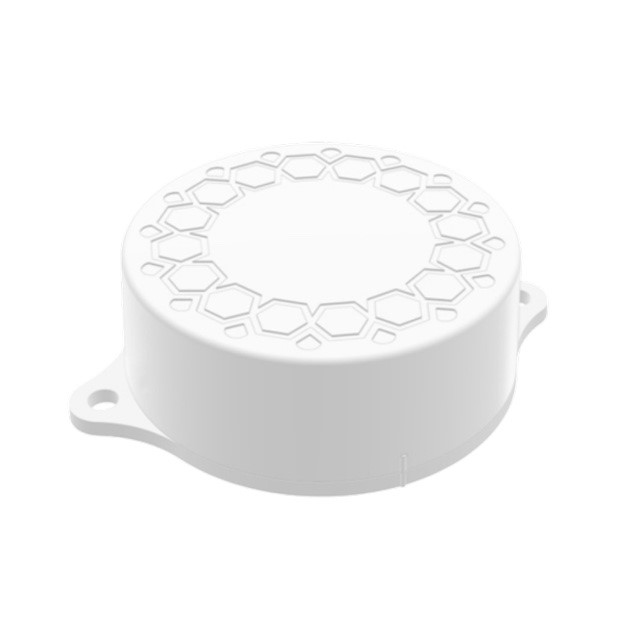

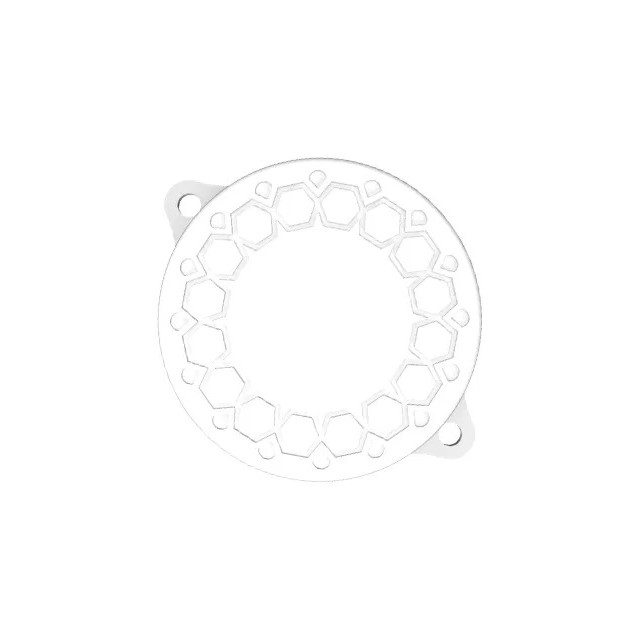

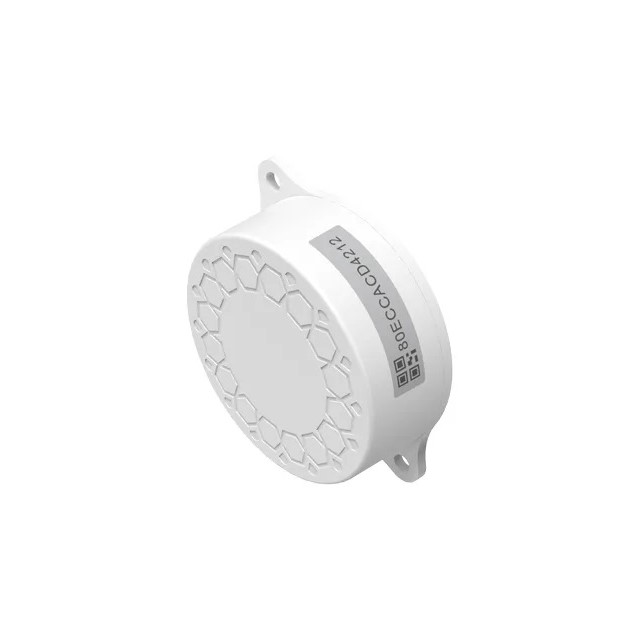

G-Sensor for Temperature and Supported Positioning Bluetooth 5.3 Beacon TS-1104H
The TS-1104H is a Bluetooth beacon that supports ibeacon, custom broadcast, Eddystone single-channel or multi-channel hybrid broadcast, and is IP67 waterproof. It can be used indoors and outdoors. TS-1104H has been redesigned to optimise power consumption, range, configuration, installation, and battery replacement. It offers multiple configuration options (temperature sensor, accelerometer, battery type), an extreme broadcast distance of 120m (open space), and a range of up to 8-10 years, which allows users to choose flexibly according to the scenarios and dramatically reduces the deployment and maintenance costs.
Model No. | TS-1104H |
Bluetooth Version | Bluetooth 5.3 |
Chipset | Nordic nRF52 Series |
TX Power | -19.5 -+2.5 dBm, Default +2.5 dBm |
OTA | YES |
Distance | 120m |
Battery | ER14250 / AAA (Optional, Replaceable) |
Battery Life | 4 Years |
Certification | BQB, FCC, CE, SRRC, RoHS, REACH |
Color | White |
Weight | 44.8g(ER14250*1)/ 54.6g(ER14250*2) |
Size | Φ59.2*21.8mm |
G-sensor | Optional |
Temperature Sensor | Optional |
OEM | Custom color, Print Logo, OEM Package, Software |
TS-1104H can be fixed by glue or screw, and is widely used in indoor positioning, indoor navigation, exhibition navigation, social check-in, advertising push, asset management, item tracking, patrol clock and other solutions.
Bluetooth Version | Bluetooth 5.3 |
Chipset | Nordic nRF52 Series |
TX Power | -19.5 -+2.5 dBm, Default +2.5 dBm |
OTA | YES |
Distance | 120m |
Battery | ER14250 / AAA (Optional, Replaceable) |
Battery Life | 4 Years |
Certification | BQB, FCC, CE, SRRC, RoHS, REACH |
Color | White |
Weight | 44.8g(ER14250*1)/ 54.6g(ER14250*2) |
Size | Φ59.2*21.8mm |
G-sensor | Optional |
Temperature Sensor | Optional |
OEM | Custom color, Print Logo, OEM Package, Software |
