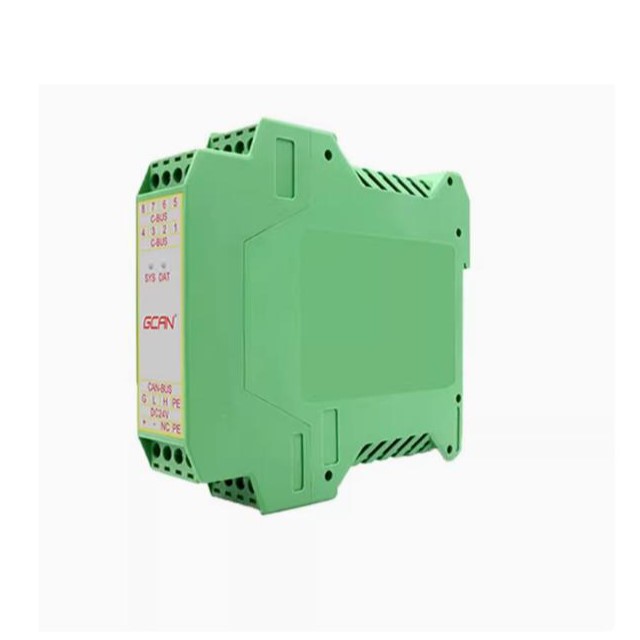

GCAN-204 Modbus RTU to CAN Converter CANBUS ModbusRTU to CAN
The GCAN-204 converter has one CAN-Bus interface and one serial interface. It integrates the Modbus RTU protocol. With the GCAN-204, the user can use the serial bus to connect to other equipment (with the Modbus RTU protocol) and access the CAN-Bus communication interface.GCAN-204 has an integrated isolation protection module. Using the fixed DIN railway, it can be easier to integrate into the control cabinet.
Properties at a Glance
- Modbus slave support function code: 03H, 04H, 06H, 16H
- Serial baud rate: 600bps ~ 115200bps
- CAN-Bus supports CAN2.0A and CAN2.0B frame format, confirm to ISO/DIS
- 11898 standards
- CAN baud rates: 5Kbps ~ 1Mbps
- CAN-Bus isolation module insulation voltage: DC 1500V
- Power supply: 9~30V (20mA,24V DC)
- Interface using terminal blocks
- Installation method: DIN rail
- Working temperature ranges from -40 to 85 °C
- Size: (L)113mm * (W)100mm * (H)21mm
