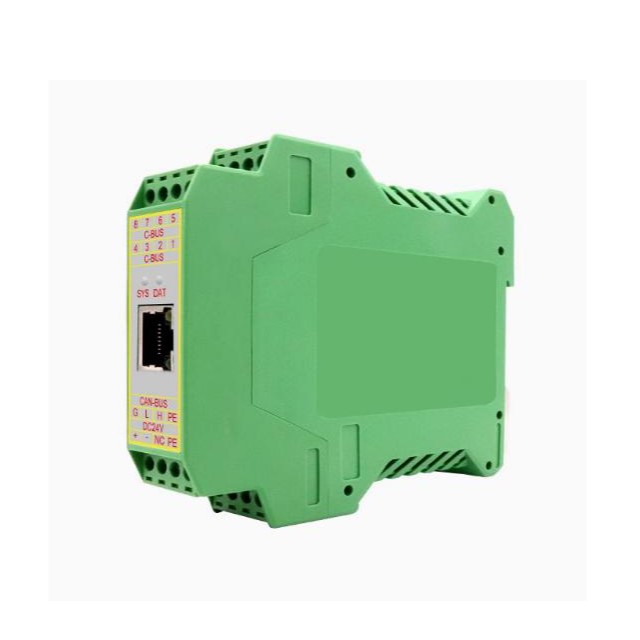

GCAN-205 Modbus TCP to CAN Converter ModbusTCP to CAN Module
The GCAN-205 is a CAN-Bus and ethernet converter. GCAN-205 converter ethernet-side integrated Modbus TCP protocol. GCAN-205 can convert the data between CAN-Bus and Modbus TCP. With this converter, equipment that uses Modbus TCP protocol can connect to CAN-Bus without changing the hardware structure; this makes multi-Bus interconnection very flexible and extends the application scope of CAN-Bus.
Properties at a Glance
Hardware
- High-speed 32-bit processor
- Embedded hardware watchdog timer
- Power supply voltage: DC 24V, maximum current: 40mA
- Electrostatic discharge immunity level: contact discharge ± 2KV, air discharge ±15KV
- Electrical fast transient burst immunity level: ± 1KV
- Surge immunity level: ± 1KV
- Operating temperature range: -40 ℃ ~ +85 ℃
- Operating humidity range: 5% to 95% RH, no condensation
- Dimensions:113mm * 100mm * 21mm
- Standard DIN rail mounting, designed for industrial design
- CAN Integrate 1 CAN-Bus interface with terminal
- CAN-Bus signals include: CAN_H, CAN_L, CAN_GND
- CAN-Bus supports CAN2.0A and CAN2.0B frame format, confirming ISO/DIS 11898 standards.
- CAN-Bus baud rates range from 5Kbps to 1Mbps
- CAN-Bus isolation converter insulation voltage: DC 1500V
Ethernet
- RJ45, support 10 / 100M adaptive
- Modbus slave support function code: 03H, 04H, 06H, 16H
- Support static or dynamic IP access
- Support heartbeat and timeout interrupt function
- The working port is fixed, the target IP and the target port can be set
- After the network is disconnected, the connection resource is automatically restored, and the TCP connection is established reliably
- Support protocols include Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
- Compatible with SOCKET work (TCP Server, TCP Client, UDP, etc.), the host computer communication software follows the standard SOCKET rules
