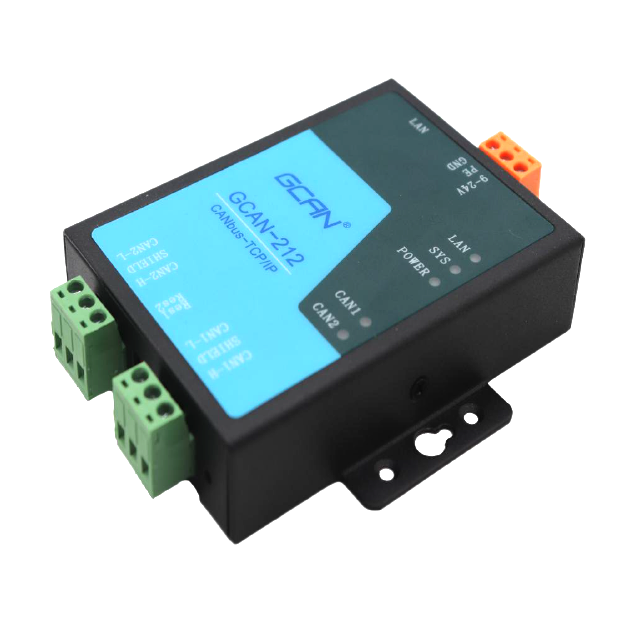

GCAN-212 Ethernet to CAN Gateway Ethernet to CAN Module
GCAN-212(CANET-II) is a high-performance CAN-bus bus communication interface card that integrates 2 CAN interfaces and 1 Ethernet interface. Using GCAN-212 high-performance CAN interface card, users can quickly complete the interconnection of the CAN-bus network and Ethernet network, further expanding the scope of the CAN-bus network. Guangcheng Technology GCAN-212 High-performance CAN interface card is a powerful tool for CAN-bus product development and CAN-bus data analysis. PCs can be quickly connected to a CAN-bus network through an Ethernet interface to form CAN-bus network control nodes for data processing and acquisition in fields such as fieldbus laboratory, industrial control, intelligent community, and automobile electronic network. At the same time, the device has small size and plug-and-play characteristics and is also the best choice for portable system users.
Guangcheng Technology GCAN-212 has integrated a CAN interface electrical isolation protection module to avoid damage to equipment due to instantaneous overcurrent/overvoltage and enhance the system’s reliability in harsh environments.
Performance Characteristics
- High-speed 32-bit industrial-grade processors;
- Embedded hardware watchdog timer;
- Module built-in FLASH memory, which can store parameters;
- Use external power supply (DC +9~24V)
- Supply current: 50mA(24V DC);
- Electrostatic discharge immunity level: contact discharge ± 2KV, air discharge ± 15KV;
- Electrical fast transient burst immunity level: ± 1KV;
- Surge immunity level: ± 1KV;
- Operating temperature range:-40 ℃ ~ +85 ℃;
- Working humidity range: 5% ~ 95% RH without condensation;
- The installation method of screw fixing is specially designed for industry.
- Integrated 2-way CAN-bus interface, using Phoenix terminal connection mode;
- CAN-bus signals include: CAN_H, CAN_L, CAN_GND;
- CAN-bus supports CAN2.0A and CAN2.0B frame formats and conforms to ISO/DIS 11898 specifications;
- CAN-bus communication baud rate between 5Kbps ~ 1Mbps arbitrary programmable;
- CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 1500V;
- 32 hardware FIFO receiving buffers, maximum sending data flow: 8000 frames/sec; Maximum receiving data flow: 14000 frames/sec;
- CAN end to receive the message timestamp accuracy of up to 1us.
- Use standard Ethernet interface, RJ45, support 10/100M adaptive;
- Support heartbeat and timeout disconnect function;
- The working port, target IP, and target port can be set;
- Automatic recovery of connection resources after network disconnection and reliable establishment of TCP connections;
- Compatible with SOCKET working methods (TCP Server, TCP Client, UDP, etc.), and the upper computer communication software is written to comply with standard SOCKET rules.
Typical Applications
- CAN-bus Network Diagnosis and Test
- Industrial Ethernet connection to CAN network
- Power communication network
- Industrial control equipment
- High-speed, large data communication
