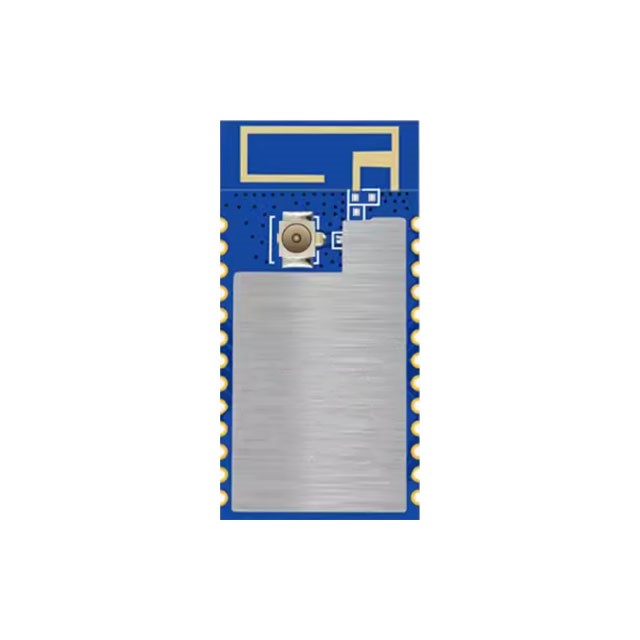

High-Speed Low-Power Master-Slave Integrated BLE 5.2 Bluetooth Module TS-M1037
The TS-M1037 is a high-speed, master-slave integrated BLE 5.2 Bluetooth module with exceptional stability and ultra-low power consumption. It features a default Bluetooth serial port transparent transmission mode, and users can easily modify parameters such as serial port baud rates and device names using the provided AT commands, ensuring flexible and straightforward operation. This module is distinguished by its excellent stability, ultra-low cost, high reception sensitivity, and minimal power consumption. It is available with a built-in or an external antenna option, catering to various project needs.
Features
- Model No.: TS-M1037
- Bluetooth Version: BLE 5.2
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20d Bm~+12 Bm
- Receive Sensitivity: -96 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: PCB Onboard / IPEX Antenna
- Advise Range: 100m
- Memory: 80KB RAM
- Size: 26.7*13*2.3mm
- Pin/GPIO: 21/13
- Power Supply: 2~3.6V
- Operating Temperature: -40℃~+85℃
- Peripheral Interface: UART/SPI/I2C/ADC
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart home
- Location tracking
- Intelligent educational equipment
- Measurement and monitoring system
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
