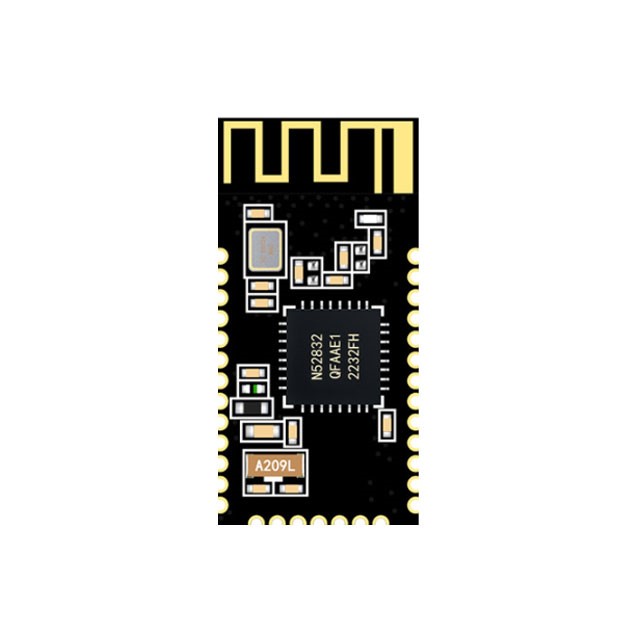

High-Speed, Master-Slave Integrated nRF52832 BLE 5.2 Bluetooth Module TS-M1052S
The TS-M1052S module is a state-of-the-art Bluetooth Low Energy (BLE) module powered by the nRF52832 system-on-chip from Nordic Semiconductor. This Bluetooth module is renowned for its high performance and low power consumption, making it an ideal choice for various IoT applications.
Features
- Model No.: TS-M1052S
- Chipset: nRF52832
- Bluetooth Version: BLE 5.0
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20 dBm~+4 dBm
- Receive Sensitivity: -96 dBm
- Air Rate: 1Mbps/2Mbps
- Antenna: PCB Onboard
- Advise Range: 50m
- Memory: 512KB Flash + 64KB RAM
- Size: 26.7*13*1.8mm
- Pin/GPIO: 34/27
- Power Supply: 1.7~3.6V
- Transmission Current: 5.4 mA peak RX, 5.3 mA peak TX
- Operating Temperature: -40℃~+125℃
- Peripheral Interface: UART/SPI/I2C/ADC/RTC
- Serial Transparent Transmission Rate: BLE 10KB/s
Applications
- Bluetooth wireless data transmission
- Industrial remote control and telemetry
- POS system
- Transportation and alarm systems
- Bluetooth electronic scale
- Bluetooth printer
- Automotive Diagnostics equipment
- Medical field
