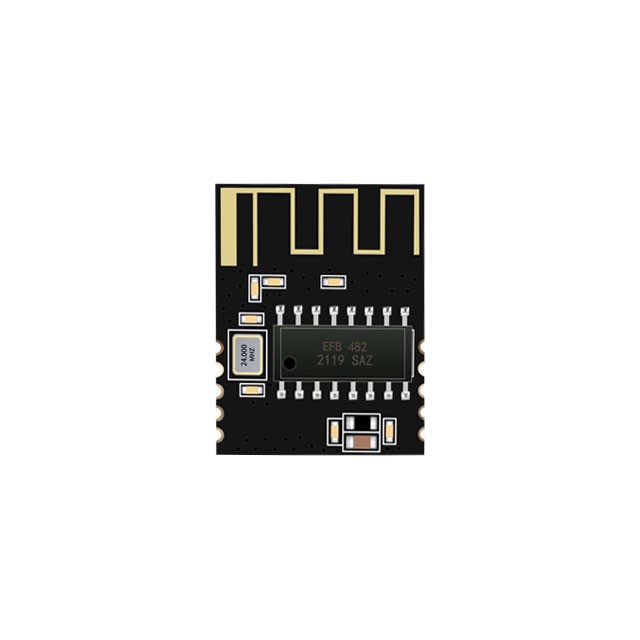

High Speed Master-Slave Supported BLE Bluetooth Module TS-M1033
The TS-M1033 is a high-speed BLE 5.1 Bluetooth module that supports serial port transparent transmission, master-slave mode, and AT commands. Users can modify parameters such as serial port baud rates and device names using the provided AT commands, offering flexible and easy operation. This module has excellent stability, ultra-low cost, and high reception sensitivity.
Features
- Model No: TS-M1033
- Bluetooth Version: BLE 5.1
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20 dBm -+8 dBm
- Receive Sensitivity: -92 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: PCB Onboard
- Advise Range: 60m
- CPU: Embedded 32-bit Processor
- Memory: 48KB RAM
- Size: 18.5*15*2.5mm
- Pin/GPIO: 10/5
- Power Supply: 2.5~4.3V
- Operating Temperature: -40℃~+105℃
- Peripheral Interface: UART/SPI/I2C/ADC
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart home
- Location tracking
- Bluetooth electronic scale
- Intelligent educational equipment
- Vehicle testing equipment
- Measurement and monitoring system
- Bluetooth wireless data transmission
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
