Inline Stealth Micro Linear Actuator

$68.99

Inline Stealth Micro Linear Actuator. Popular in manufacturing automation, robotics and hobby applications.


Made In: United States (US)

By: MoraiMotion Store
SKU: Inline-Stealth-Micro-Linear-Actuator Categories: , Tags: , , , , More From:

The Stealth electric micro linear actuator has a dual planetary gearbox which allows ultra-quiet and efficient motion. Streamline design with solid attached mount for secure installation and precise motion. This design accelerates quickly to high speeds, offers high torque in a compact frame and provides maximum torque at stall. Popular in manufacturing automation, robotics and hobby applications.

Weight: 1 lbs
Dimensions: 4 × 4 × 4 in
Stroke: 100mm, 125mm, 150mm, 175mm, 200mm, 25mm, 50mm, 75mm

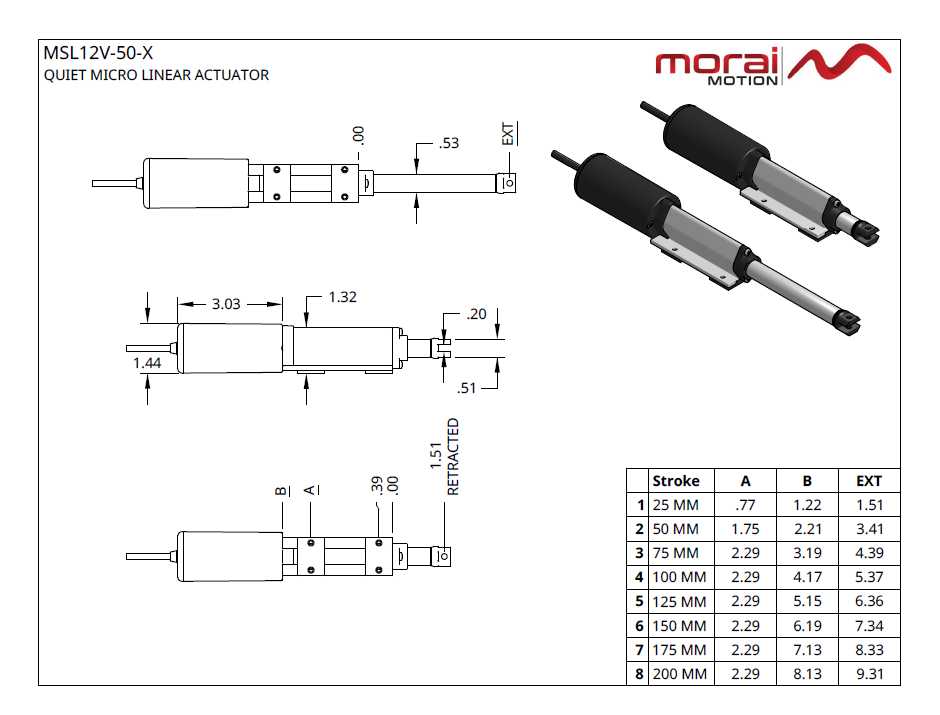

Technical Drawings

Specifications

SPECIFICATIONS
Model No. MSL12V-50-X
Input Voltage 12v DC
Stroke 25mm – 200mm
Speed 7mm at full load
Push Force 100N / 22 lbs.
Pull Force 50N / 11 lbs.
Static Load 50N / 11 lbs.
No-load Current ≤ 0.1A
Current at Full Load ≤0.3A
Back Drive Force 11 lbs. / 50N
Mechanical Backlash ≤0.2mm
Feedback No
Stall Current 0.4A ≤I≤0.5A
Protection Class IP54
Operation Temperature +5 °C ~ + 40 °C
Noise 4 dB above ambient
Duty Cycle 30%, Max 5 min.
Limit Switch No
Screw Type Trapezoidal Screw
Clevis Holes 4.2mm
Mounting Holes M4
Housing Material Aluminum 6063
Inner Tube Aluminum 6063
Wire Length 0.3m

Specifications

Weight 1 lbs
Dimensions 4 × 4 × 4 in
Stroke

25mm, 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm
