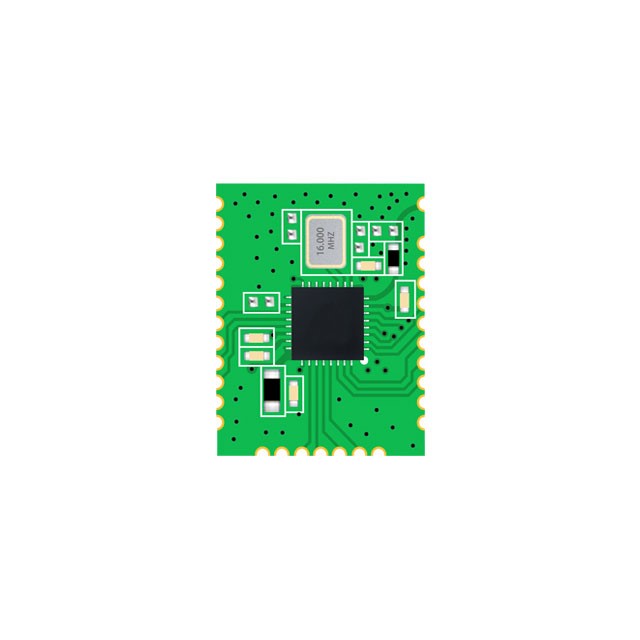

Low Cost Dual-Mode Bluetooth Module TS-M1031D
The TS-M1031D is a compact dual-mode Bluetooth module that supports the Bluetooth BLE 5.0 protocol and integrates a high-performance 2.4GHz RF transceiver, a feature-rich baseband processor, an ARM968E-MCU, and various peripheral interfaces, supporting programmable protocols. This module boasts excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for various customer development projects.
Features
- Model No: TS-M1031D
- Bluetooth Version: BLE 4.2+ SPP 3.0
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20 dBm~+4 dBm
- Receive Sensitivity: -97 dBm
- Air Rate: 250Kbps/1Mbps
- Antenna: External Antenna
- Advise Range: 80m
- CPU: ARM968E-S
- Size: 15*12*1.5mm
- Pin/GPIO: 30/11
- Power Supply: 1.8~3.6V
- Operating Temperature: -40℃~+85℃
- Peripheral Interface: UART/SPI/I2C/ADC, Built-in 10-bit High-Precision ADC
- Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
- Smart home
- Location tracking
- Intelligent educational equipment
- Measurement and monitoring system
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
