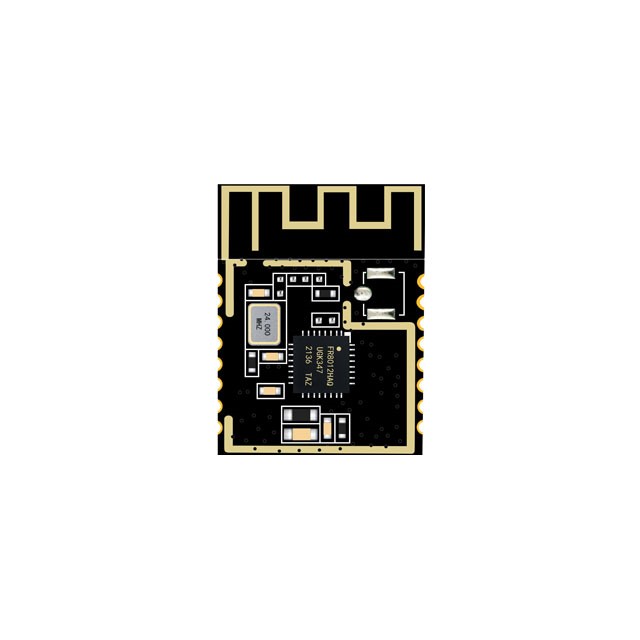

Low-Cost High-Speed Master-Slave Supported Bluetooth Module TS-M1035
The TS-M1035 is a high-speed BLE 5.1 Bluetooth module that supports serial port transparent transmission, master-slave mode, and AT commands. Using the provided AT commands, users can easily modify parameters such as serial port baud rates and device names, offering flexible and straightforward operation. This module boasts excellent stability, ultra-low cost, and high reception sensitivity. It is available with a built-in or external antenna option, catering to various project needs.
Features
- Model No.: TS-M1035
- Bluetooth Version: BLE 5.1
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20d Bm~+10 Bm
- Receive Sensitivity: -95 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: PCB Onboard / IPEX Antenna
- Advise Range: 80m
- Memory: 48KB RAM
- Size: 20*15*1.5mm
- Pin/GPIO: 16/12
- Power Supply: 2.5~4.3V
- Operating Temperature: -40℃~+105℃
- Peripheral Interface: UART/SPI/I2C/ADC
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart home
- Location tracking
- Bluetooth electronic scale
- Intelligent educational equipment
- Vehicle testing equipment
- Measurement and monitoring system
- Bluetooth wireless data transmission
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
