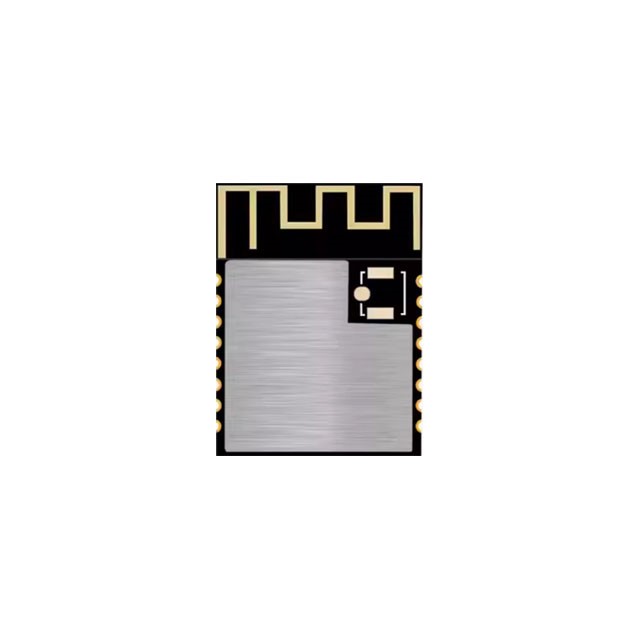

Low-Cost Low-Power Bluetooth Module Switch TS-M1050
The TS-M1050 is a low-power Bluetooth module that operates on the Bluetooth 5.1 protocol, offering excellent stability and compatibility. The module supports direct Bluetooth system connections with seamless automatic reconnection, eliminating the need for an app. It features both momentary and latching modes of operation. Whether you have a built-in or an external antenna option, it adapts to various project requirements.
Features
- Model No.: TS-M1050
- Bluetooth Version: BLE 5.1
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20dBm ~+10Bm
- Receive Sensitivity: -95 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: PCB Onboard / IPEX Antenna
- Advise Range: 50m
- Memory: 256KB FLASH+128KB RAM
- Size: 20*15*2.3mm
- Pin/GPIO: 21/13
- Power Supply: 2.5~4.3V
- Operating Temperature: -40℃~+105℃
- Peripheral Interface: UART/I2C/ADC
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart door lock
- Car keyless entry
- Automatic induction switch
