PICkit3 PIC KIT3 In-Circuit Debugger Programmer Clone
It is a clone kit that is 100% compatible with the original. The PICkit3 In-Circuit Debugger/Programmer, which is 100% compatible with microchips, uses in-circuit debugging logic incorporated into each chip with Flash memory to provide a low-cost hardware debugger and programmer. The MPLAB PICkit3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit3 is connected to the design engineer’s PC using a full-speed USB interface. It can be connected to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programmingâ„¢.
Features
- Full-speed USB support using Windows standard drivers
- Real-time execution
- Processors run at maximum speeds
- MPLAB IDE compatible (free copy included)
- Built-in over-voltage/short circuit monitor
- Firmware upgradeable from PC/web download
- Enclosed
- Supports low voltage to 5 volts (1.8v to 5.0v range)
- Diagnostic LEDs (power, active, status)
- Read/write program and data memory of microcontroller
- Erase all memory types (EEPROM, ID, configuration, and program) with verification
- Freeze-peripherals at breakpoint
- Program up to 512K byte flash with the Programmer-to-Go
Basic Debugger System:Â The debugger system can be configured using standard ICSP communication for programming and debugging functions.
CAUTION: Do not change hardware connections while the PICkit3 or target is powered.
Supported Devices:Â Refer to MPLAB IDE v8.76. The following devices are supported:
ICSP | PIC10F |
---|---|
PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222 | |
PIC12F | |
PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615PIC12F629, PIC12F635, PIC12F675, PIC12F683 | |
PIC16F | |
PIC16F505,PIC16F506,PIC16F526,PIC16F54,PIC16F57,PIC16F59,PIC16F610,PIC16FHV610,PIC16F616, PIC16FHV616PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636,PIC16F639,PIC16F676,PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689, PIC16F690,PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,PIC16F84A,PIC16F87,PIC16F88,PIC16F818,PIC16F819,PIC16F870,PIC16F871,PIC16F872, PIC16F873, PIC16F874,PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16LF1938, PIC16LF1939 | |
PIC18F | |
PIC18F242, PIC18F252, PIC18F442, PIC18F452,PIC18F248, PIC18F258, PIC18F448, PIC18F458 PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320,PIC18F1230, PIC18F1330,PIC18F2221, PIC18F2321 PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431,PIC18F2423,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480,PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523,PIC18F2525,PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585,PIC18F2610, PIC18F2620, PIC18F2680,PIC18F2682, PIC18F2685,PIC18F4220, PIC18F4221,PIC18F4320, PIC18F4321, PIC18F4331,PIC18F4410, PIC18F4420, PIC18F4423,PIC18F4431, PIC18F4450, PIC18F4455,PIC18F4458, PIC18F4480,PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523 PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580,PIC18F4585,PIC18F4610, PIC18F4620, PIC18F4680 PIC18F4682, PIC18F4685,PIC18F6310, PIC18F6390, PIC18F6393,PIC18F6410, PIC18F6490, PIC18F6493 PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585,PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627 PIC18F6628, PIC18F6680,PIC18F6720, PIC18F6722, PIC18F6723PIC18F8310, PIC18F8390, PIC18F8393 PIC18F8410, PIC18F8490, PIC18F8493,PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585,PIC18F8621, PIC18F8620,PIC18F8622,PIC18F8627,PIC18F8628,PIC18F8680,PIC18F8720,PIC18F8722,PIC18F8723,PIC18F24J10, F25J10, F44J10, F45J10,PIC18LF24J10, LF25J10, LF44J10, LF45J10,PIC18F24J11, F25J11, F44J11, F45J11 PIC18LF24J11, LF25J11, LF44J11, LF45J11,PIC18F26J11, F46J11,PIC18LF26J11, LF46J11,PIC18F24J50, F25J50, F44J50, F45J50,PIC18LF24J50, LF25J50, LF44J50, LF45J50,PIC18F26J50, F46J50,PIC18LF26J50, LF46J50 PIC18F63J11, 63J90, 64J11, 64J90PIC18F65J10, 65J11, 65J15PIC18F65J50, 65J90PIC18F66J10, 66J11, 66J15, 66J16,PIC18F66J50, 66J55, 66J60, 66J65,PIC18F66J90,PIC18F67J10, 67J11, 67J50, 67J60,PIC18F67J90,PIC18F83J11, 83J90, 84J11, 84J90,PIC18F85J10, 85J11, 85J15, 85J50,PIC18F85J90,PIC18F86J10, 86J11, 86J15, 86J16,PIC18F86J50, 86J55, 86J60, 86J65,PIC18F86J90,PIC18F87J10, 87J11, 87J50, 87J60,PIC18F86J90,PIC18F96J60, 96J65,PIC18F97J60, PIC18F13K22, LF13K22, F14K22, LF14K22PIC18F13K50,14K50,PIC18F23K20,24K20,25K20,26K20PIC18F43K20, 44K20, 45K20, 46K20 |
|
PIC24F | |
PIC24F04KA200, 04KA201,PIC24F08KA101, 08KA102,PIC24F16KA101, 16KA102,PIC24FJ16GA002, 16GA004,PIC24FJ32GA002, 32GA004,PIC24FJ32GA102, 32GA104,PIC24FJ32GB002, 32GB004,PIC24FJ48GA002, 48GA004,PIC24FJ64GA002, 64GA004,PIC24FJ64GA102, 64GA104,PIC24FJ64GB002, 64GB004,PIC24FJ64GA006, 64GA008, 64GA010,PIC24FJ64GB106, 64GB108, 64GB110,PIC24FJ96GA006, 96GA008, 96GA010,PIC24FJ128GA006, 128GA008, 128GA010,PIC24FJ128GA106, 128GA108, 128GA110,PIC24FJ128GB106, 128GB108, 128GB110,PIC24FJ192GA106, 192GA108, 192GA110,PIC24FJ192GB106, 192GB108, 192GB110,PIC24FJ256GA106, 256GA108, 256GA110,PIC24FJ256GB106, 256GB108, 256GB110 ,PIC24HJ12GP201, 12GP202,PIC24HJ16GP304,PIC24HJ32GP202, 32GP204,PIC24HJ32GP302, 32GP304 ,PIC24HJ64GP202, 64GP204,PIC24HJ64GP206, 64GP210, 64GP506,PIC24HJ64GP502, 64GP504, 64GP510 ,PIC24HJ128GP202, 128GP204,PIC24HJ128GP206, 128GP210, 128GP306,PIC24HJ128GP310,PIC24HJ128GP502, 128GP504,PIC24HJ128GP506, 128GP510,PIC24HJ256GP206, 256GP210, 256GP610 |
|
dsPIC30 | |
dsPIC30F1010,dsPIC30F2010, 2011, 2012,dsPIC30F2020, 2023,dsPIC30F 3010, 3011, 3012 dsPIC30F3013, 3014,dsPIC30F4011, 4012, 4013,dsPIC30F5011, 5013, 5015, 5016,dsPIC30F6010A, 6011A, 6012A |
|
dsPIC39 | |
dsPIC39F6013A, 6014A, 6015 | |
dsPIC33 | |
dsPIC33FJ12GP201, 12GP202,dsPIC33FJ16GP304,dsPIC33FJ32GP202, 32GP204,dsPIC33FJ32GP302, 32GP304 dsPIC33FJ64GP202, 64GP204,dsPIC33FJ64GP206, 64GP306, 64GP310,dsPIC33FJ64GP706, 64GP708, 64GP710 dsPIC33FJ64GP802, 64GP804,dsPIC33FJ128GP202, 128GP204,dsPIC33FJ128GP206, 128GP306, 128GP310,dsPIC33FJ128GP706, 128GP708, 128GP710,dsPIC33FJ128GP802, 128GP804,dsPIC33FJ256GP506, 256GP510, 256GP710 dsPIC33FJ06GS101, 06GS102, 06GS202,dsPIC33FJ16GS402, 16GS404,dsPIC33FJ16GS502, 16GS504dsPIC33FJ12MC201, 12MC202,dsPIC33FJ16MC304,dsPIC33FJ32MC202, 32MC204,dsPIC33FJ32MC302, 32MC304 dsPIC33FJ64MC202, 64MC204,dsPIC33FJ64MC506, 64MC508, 64MC510,dsPIC33FJ64MC706, 64MC710,dsPIC33FJ64MC802, 64MC804,dsPIC33FJ128MC202, 128MC204 dsPIC33FJ128MC506, 128MC510,dsPIC33FJ128MC706, 128MC708, 128MC710 dsPIC33FJ128MC802, 128MC804,dsPIC33FJ256MC510, 256MC710 |
|
dsPIC32 | |
PIC32MX320F032H, 320F064H,PIC32MX320F128H, 320F128L,PIC32MX340F128H, 340F128L,PIC32MX340F256H PIC32MX340F512H,PIC32MX360F256L, 360F512L,PIC32MX420F032H,PIC32MX440F128L, 440F128H PIC32MX440F256H,PIC32MX440F512H,PIC32MX460F256L, 460F512L |
|
11 Series Serial EEPROM Devices | |
11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160 | |
24 Series Serial EEPROM Devices | |
24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025 | |
25 Series Serial EEPROM Devices | |
25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024 | |
93 Series Serial EEPROM Devices | |
25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C ,25LC/AA/C48A, 86B, 86C |
|
MCP250xx CAN Devices | |
MCP25020, 25025,MCP25050, 25055 |
PICkit3 Status LEDs
The Status LEDs indicate the status of the PICkit3.
- Power (green) – Power is supplied to the PICkit3 via the USB port.
- Active (blue) – The PICkit3 connects to the PC USB port, and the communication link is active.
Status
- Busy (yellow) – The PICkit3 is busy with a function in progress, such as programming.
- Error (red) – The PICkit3 has encountered an error.

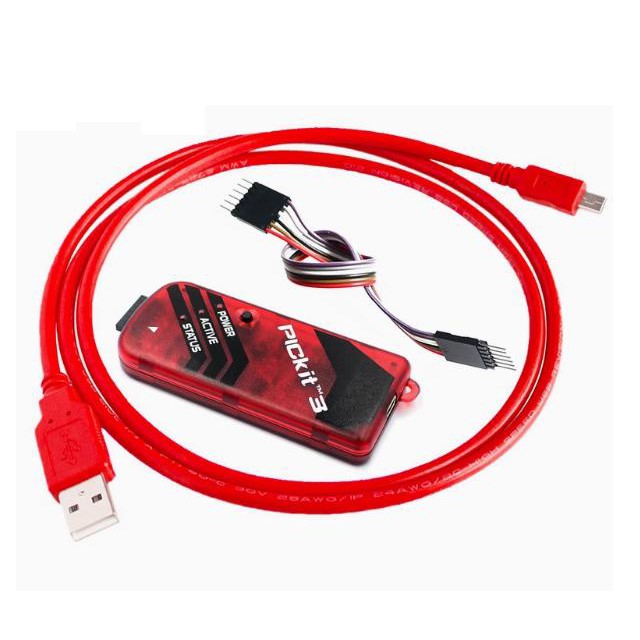

Package Contains
- PICkit3 × 1
- USB type A to Mini-B cable × 1
- 6-pin ICSP cable × 1
