Sale!

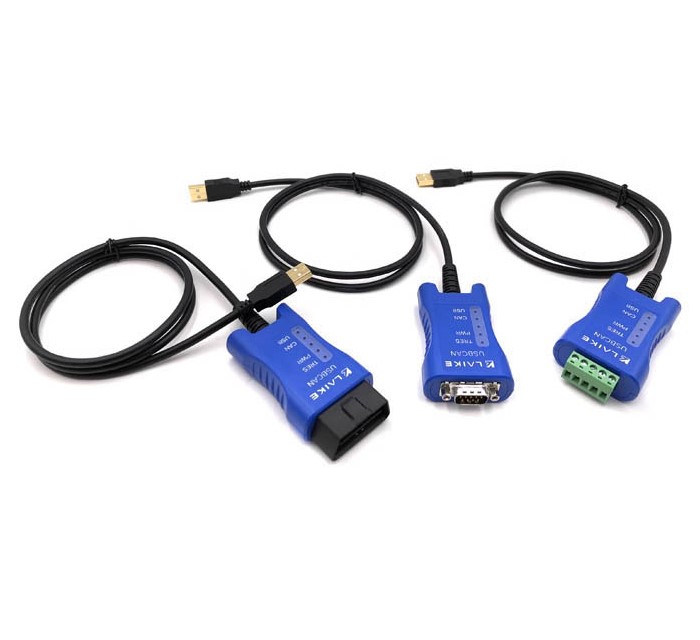

Portable USB to CAN Module Bus Analyzer USBCAN CANopen New Energy Vehicle CAN Debugging

$145.00$154.00

The supporting testing software LCANTest receives, sends, analyzes, records, and plays back CAN messages. It supports Windows or Linux drivers. The secondary development package includes dynamic libraries, library function call instructions, and rich routines. It also provides full-process expert guidance services.


Ships From: China

Supplier: MicroHello SKU: Portable-USBCAN Category: Tags: , , , , More From:

Portable USB to CAN Module Bus Analyzer USBCAN CANopen New Energy Vehicle CAN Debugging

The USBCAN series portable CAN analyzer quickly expands one CAN channel through a USB interface, making it easy to access the CAN network. It has an integrated and compact appearance, especially suitable for carrying around. The CAN interface adopts the Jinshengyang CAN isolation transceiver module to achieve 3000V DC Galvanic isolation and USB interface ESD static protection. It has excellent EMC performance and reliability testing projects: ESD contact discharge 8KV, surge ± 1KV, pulse group ± 2KV, industrial grade, certified by CE-EMC, FCC, and CNAS.

The supporting CAN&CANFD comprehensive testing and analysis software LKMaster has robust data analysis and protocol parsing functions supports parsing of j1939 protocol, canopen protocol, BMS protocol, and custom protocol, supports script editing and custom parsing rules, supports script sending, conditional script sending, DBC sending, manual/scheduled sending, supports grouping and filtering, supports search and data statistics, supports DBC parsing, curve and instrument analysis, It supports data playback, the use of event trigger scripts and condition trigger scripts to achieve Test automation, file format conversion, opening data in files and saving data to files, parameter configuration of recording devices, management and download of recording files, and bus utilization curve and incremental time curve.

Product characteristics

    • Integrated, compact and compact design, easy to carry
    • E341631 EU certified CAN-bus special shielded cable
    • Use high-quality brand gold plated connectors
    • Single or dual-channel options
    • Supports 5Kbps~1Mbps CAN Baud
    • Complies with CAN 2.0A/2.0B specifications
    • Complies with ISO/DIS 11898-1/2/3 standards
    • Maximum frame traffic up to 14000 frames/s
    • The timestamp resolution is about 1us
    • 1 channel CAN channel, CAN interface Galvanic isolation up to 3000VDC
    • DB9, wiring terminal, or OBDII interface options available
    • Built-in 120 ohm terminal resistor, software-enabled or disabled
    • Working temperature: -40 ℃ to+85 ℃
    • Interface anti-surge, anti-pulse group, ESD protection design
    • Certified by CE-EMC, FCC, CNAS
Selection USBCAN-01121/01122 USBCAN-02121/02122 USBCAN-03121/03122
Power supply USB PORT
PC Interface Full speed USB2.0,12Mbps,compatible with USB 1.1、3.0
CAN Interface DB9 Interface Open5/5Pin Interface OBDII Interface
CAN CH 1-CH/2-CH
CAN Baud Supports 5Kbps~1Mbps, Common Baud or user-defined Baud can be selected
Maximum frame traffic up to 14000 frames/s(1M Baud, standard remote frame)
CAN isolation 3000V DC Electrical isolation
CAN standard CAN 2.0A/2.0B, ISO/DIS 11898-1/2/3
Terminator Built-in 120 ohms, software-enabled or disabled, default off
application software LCANTest for Windows
OS Drive Windows/Linux(32/64bit)
Secondary development VB、VC、C#、Delphi、CVI、cb6、Labview、QT、MATLAB etc.
EMC ESD Contact discharge 8KV、surge ±1KV、BURST ±2KV
certification CE-EMC、FCC、certification
operation temperature -40~85℃
material ABS
USB cable 1M
Size (excluding USB cable) 79×48×23mm 83×48×23mm 88.5×48×23mm
On sale models CAN channel Interface method OS supported
USBCAN-01121 1 DB9 Interface Windows
USBCAN-02121 1 Open5/5Pin Interface Windows
USBCAN-03121 1 OBDII Interface Windows
USBCAN-01122 1 DB9 Interface Linux/Ubuntu
USBCAN-02122 1 Open5/5Pin Interface Linux/Ubuntu
USBCAN-03122 1 OBDII Interface Linux/Ubuntu
USBCAN-01221 2 DB9 Interface Windows
USBCAN-02221 2 Open5/5Pin Interface Windows
USBCAN-03221 2 OBDII Interface Windows
USBCAN-01222 2 DB9 Interface Linux/Ubuntu
USBCAN-02222 2 Open5/5Pin Interface Linux/Ubuntu
USBCAN-03222 2 OBDII Interface Linux/Ubuntu

Additional information

Weight 0.882 lbs
Dimensions 7 × 5 × 2.5 in
Options

USBCAN-01122(DB9 interface), USBCAN-02122(5Pin interface), USBCAN-03122(OBDII interface)
