Swellpro SplashDrone 4 Plus GC3-S Camera
SPLASH DRONE 4
The multi-functional waterproof flight platform
SplashDrone 4 is the 5th generation waterproof drone representing SwellPro’s 7 years of knowledge and understanding of drone waterproofing technology.
SplashDrone 4 is the all-new waterproof flight & float platform designed for multipurpose operation in any harsh environment.
A new benchmark for waterproof drones

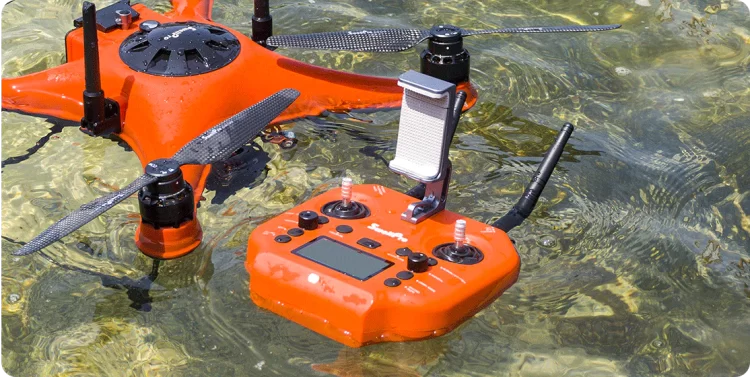

All-new IP66 Waterproof Remote Controller
The all-new SplashDrone 4 remote controller is now waterproof for your worry-free operation. You can even toss it on the water or rinse off the collected sand. The built-in GPS offers a variety of new features, including real-time tracking and dynamic return to pilot. The remote controller is now capable of offering multiple devices connection for a better collaborative operation.
Multi-functional Payload Options
With its modular multi-functional payload system and open interface design, the SplashDrone 4 can quickly adapt to different tasks in the field.
Waterproof 3-axis 4K camera
Capture smooth videos and crisp photos with the new, fully waterproof 4K camera stabilized by a 3-axis gimbal.GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in the water while taking underwater shots. GC3-S now has Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom.
Waterproof Payload Release
The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.
Innovative Smooth+ Flight Control
The patented “Smooth+” flight control allows the pilot to tune the Roll and Yaw of SplashDrone 4.Smooth+ finely makes professional, steady flight control easy as turning the knobs. Want to take a steady shot? Switch to Smooth+ control; together with our 4K 3-axis gimbal, you can take high-quality, ultra-smooth & steady shots effortlessly.
5KM Image Transmission
The latest 5.8GHz digital image transmitter and adjustable antennas ensure a clear and reliable image and control signal range to the SplashDrone 4 of over 5km while airborne.
Important: Due to the nature of radio waves, when flying just 0.5m above the water, the range is still up to 2.8km, and floating on the water surface, the transmission range is 500m
PowerflipWhen the drone turns upside down on the water for any reason; the Power-Flip feature turns the drone back to the normal state to take the control back.
Dynamic Return to pilot
The SplashDrone 4 constantly records the GPS position of the remote controller, allowing the aircraft to always return to the pilot‘s position even if they are on a moving boat far away from the original take-off point.
Intelligent Follow me
Actively track the pilot’s position at a constant angle from the front, side, and back with the camera always pointing to the subject.
Orbit Follow: Automatically follow and orbit around a moving object at a chosen radius.
Equipped with floating foams, the boat mode allows SplashDrone 4 to sail on the water just like a boat, providing great underwater shots while remains the water area uninterrupted. Caves and other overhead environments can now be accessed by SplashDrone 4 for research, exploration, and underwater photography.
Unrivalled-performance Propulsion System
The more powerful 740Kv Motor, 40A ESC, and optimized aerodynamic design allow for tight, responsive, and total control of SplashDrone 4 in any challenging weather conditions.
Wind resistance Beaufort force 7
(33 knots / 31 mph / 60 km/h)
2kg payload capacity
Smart BatteryThe new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health, safety, and a longer lifespan. The 6500mAh high-performance lithium technology cells provide up to 30 minutes of flight time.
The SwellPro Navifly APPThe newly-developed SwellPro Navifly APP enables logging, planning, recording of missions, and the control and parameter setting of cameras and other modules in flight.
Automatically fly at a designated speed and direction.
Tap to fly
Autonomously fly to a selected location on the map at a predetermined altitude and speed, and hover awaiting further commands.
Waypoint mission planning
Preplan a mission by selecting a series of waypoints on the map with adjustable speed, height, hover time, and camera angle at each point.
Grid mission planning
Connect up to 256 waypoints to form a mission area planning, and the drone will follow a uniform grid pattern flight path at the selected speed and interval.
SplashDrone 4 offers API for third-party software to gather data from sensors and configure its control of aircraft, gimbal, camera, and third-party add-ons.
SDK allows deep integration of third-party add-ons to SplashDrone 4.Together with API, SplashDrone 4 is truly a multi-purpose & multi-functional platform for your imagination.
Fly, float, film, fish, find… wherever.
