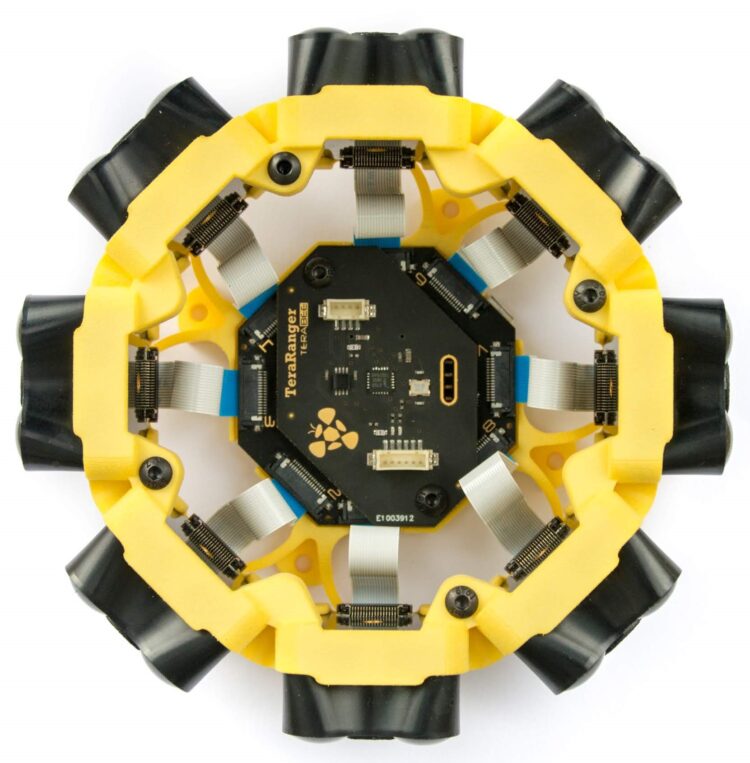

TeraRanger Tower Evo – Solid-state ToF LiDAR system, 4/8 detection zones, 92 grams.

TeraRanger Tower Evo is a solid-state LiDAR system. With zero moving parts, the product offers increased robustness and silent operation. At the same time, the compact and lightweight design make it ideal for fast-moving and lightweight robotic applications, both on the ground and airborne. In addition, TeraRanger Tower Evo is compatible with Pixhawk (APM) flight controllers. Choose between 4 versions with varying performance, including 4 or 8 detection zones.

Simultaneous monitoring of multiple axes

When mounted on a ground or airborne robot, the simultaneous data point acquisition of 4 or 8 axes at high speed, coupled to the natural movement of the robot (both translations and rotations), ensures the capture of features and data points around the robot, with a similar output to the laser scanners typically used in SLAM operations.

Technical Specifications

Principle: Infrared Time-of-Flight (ToF)
Range: *0.5m up to 60m
Update rate:

• up to 240Hz per sensor (4 sensor version)
• up to 120Hz per sensor (8 sensor version)

Output rate: Variable (given by update rate) or fixed at 50Hz, 100Hz, 250Hz, 500Hz, 600Hz
Output resolution: 0.5cm below 14m, 2cm from 14m
Accuracy: ±4cm in the first 14m, 1.5% above 14m
Field of view: Approx. 2° per sensor, 45°between each sensor axis
Supply voltage: 12V to 24V DC
Supply current @ 12V (8 sensors Tower mode): 1100mA (max)

Interfaces:

• USB 2.0 Micro-B
•  UART, +3.3V level, 115200,8,N,1
• WS2812B LED serial control output

Connectors:

• Micro USB
• 6pin Hirose DF13
•  4pin Hirose DF13

Onboard IMU:  Bosch BNO055

Weight:

• 135g (fully assembled with 8 sensors)
• 92g (fully assembled with 4 sensors)

Mounting: 4 mounting holes for M3 screws

Eye Safety: Yes (in accordance with IEC62471)

*Please note: Product performance, including maximum range, will vary according to the operating environment, surface reflectivity, direct sunlight, and other variables. Therefore, please test in your intended operating environment and conditions.
