Sale!

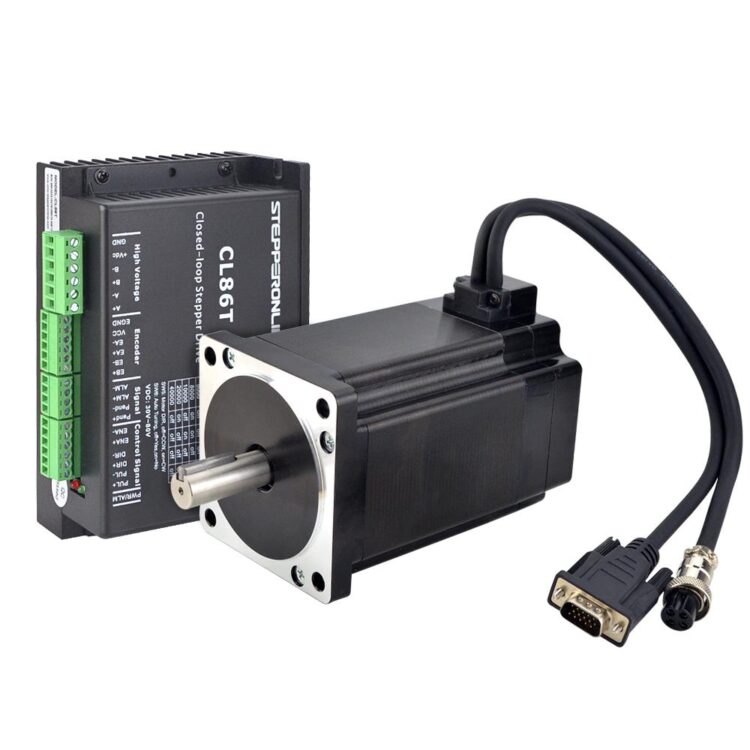

TS Series 4.8 Nm/679.87oz.in 1 Axis Closed Loop Stepper CNC Kit Nema 34 Motor & Driver w/ 2m Cable

$142.53

This CNC kit included:

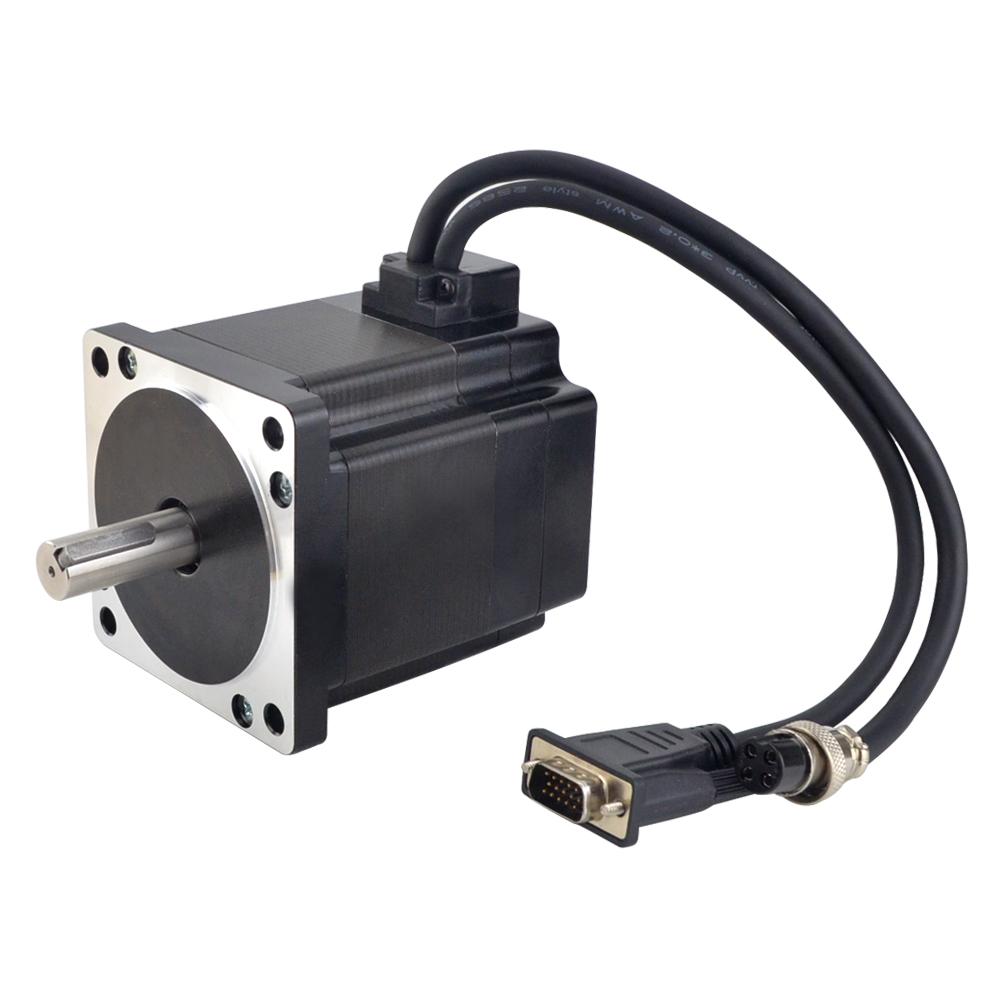

1 x S Series Nema 34 Closed Loop Stepper Motor 4.6Nm/651.54oz. in with Encoder 1000CPR

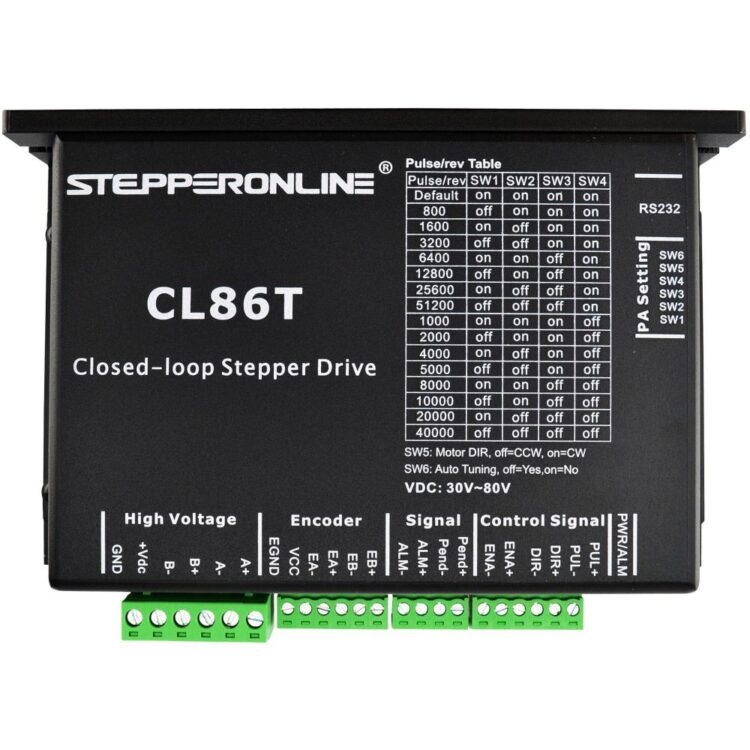

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
1 x 1.7 m(67″) Long Encoder Extension Cable for Closed Loop Stepper Driver
1 x AWG18 1.7 m(67″) Long Motor Extension Cable with GX16 Aviation Plug

In stock


Made In: United States (US)

By STEPPERONLINE SKU: 1-CL86T-S48 Category: Tags: , , , , , More From:

TS Series 4.8 Nm/679.87oz. in 1 Axis Closed Loop Stepper CNC Kit Nema 34 Motor & Driver w/ 2m Cable

Motor Specification:

Part Number: 34HS31-6004D-E1000
Number of phases: 2
Holding Torque: 4.6 Nm(651.54 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.3 ohms
Inductance: 2.3 mH ± 20%(1KHz)
Frame Size: 86 x 86 mm
Body Length: 79 mm
Shaft Diameter: Φ14 mm
Shaft Length: 40 mm
keyway Length: 25 mm
Number of Leads: 4
Lead Length: 300 mm
Encoder Specification
Output Circuit Type: Differential type
Encoder Resolution: 1000
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ
Driver Specification
Output Peak Current: 0~8.2A
Input Voltage: +24~80VDC (Typical 48VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Quick response, no delay, and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost

Reviews

There are no reviews yet.

Be the first to review “TS Series 4.8 Nm/679.87oz.in 1 Axis Closed Loop Stepper CNC Kit Nema 34 Motor & Driver w/ 2m Cable”

Product Manuals

If applicable, the Product Documentation, Reference Materials, CAD design(s),.STEP file(s) and/or other drawing files, Manuals, and Tutorials will be available for download upon purchase. The order confirmation email will include a downloadable link to the product file(s), which can also be downloaded from the My Account section if needed.
