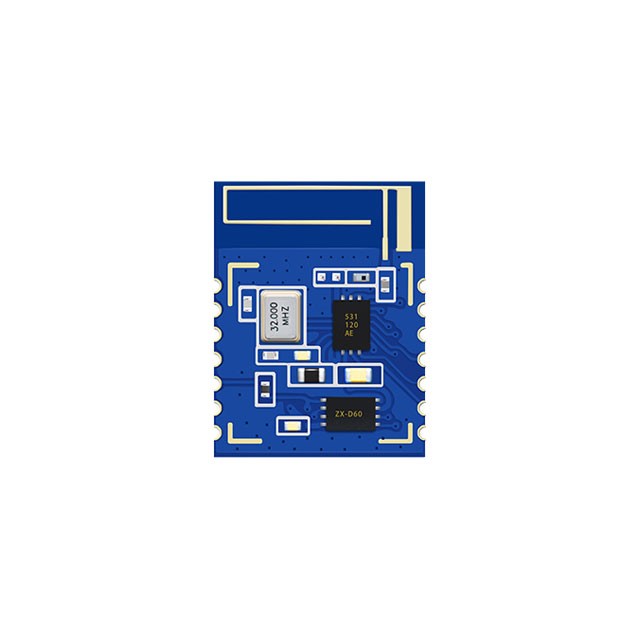

Ultra Low Cost, Low Power, Excellent Stability, Bluetooth Module TS-M1060
The TS-M1060 is a compact, low-power Bluetooth module featuring a Bluetooth 5.1 chip. It supports AT commands, allowing users to modify parameters such as serial port baud rates and device names using the provided AT instructions, ensuring flexible and straightforward operation. This module is praised for its excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for various customer development projects.
Features
- Model No: TS-M1060
- Chipset: DA14531
- Bluetooth Version: BLE 5.1
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20dBm -+2.5dBm
- Receive Sensitivity: -94 dBm
- Air Rate: 250Kbps/1Mbps
- Antenna: PCB Onboard
- Advise Range: 80m
- Memory: 48KB RAM
- Size: 17*13*1.5mm
- Pin/GPIO: 14/8
- Power Supply: 1.8~3.6V
- Operating Temperature: -40℃~+85℃
- Peripheral Interface: UART
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart home
- Location tracking
- Intelligent educational equipment
- Measurement and monitoring system
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
