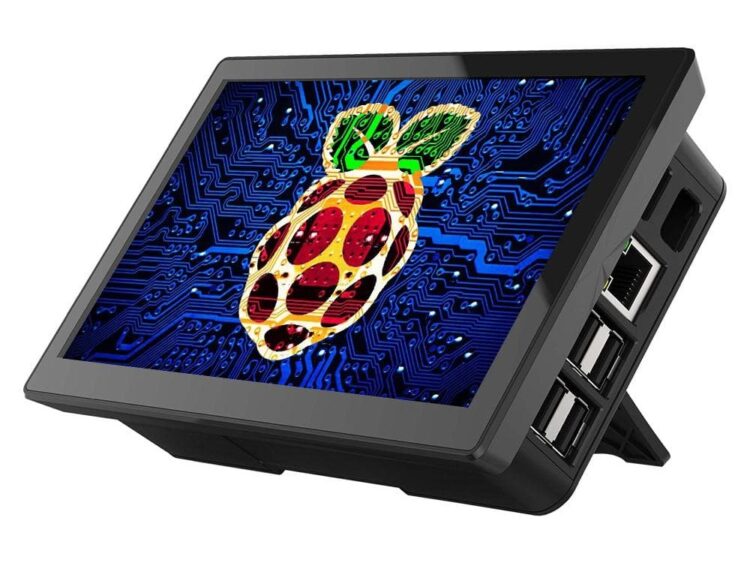

UPi – Raspberry Pi Case with Touchscreen 7 to 10 inches | UPERFECT – All-In-One Monitor for Raspberry Pi
This touchscreen monitor is designed for pi 3/ 3b/ 3b+/ 4/ 4b. You can directly mount the Pi board in this touchscreen case. It’s beautifully designed, incredibly intuitive, and packed with comprehensive tools that let you take any idea to the next level. This excellent monitor has a 10-Point touch-sensitive, touch rotation without displacing, a built-in case, a cooling fan and stand, and an even more stunning resolution of 1024*600 display.
Specifications | ||
---|---|---|
Brand | UPERFECT | UPERFECT |
Series | UPi | UPi |
SKU | M7B06 | M101B06 |
Item | Raspberry Pi Case with Touchscreen 7 inches | Raspberry Pi Case with Touchscreen 10.1 inches |
Screen | ||
Refresh Rate | 60Hz | 60Hz |
Screen Size | 7 inch | 10.1 inch |
Resolution | 1024 x 600 | 1280 × 800 /1366 × 768 / 1920 × 1200 (Optional) |
Display Ratio | 16:9 | 16:9 |
Viewing Angle | 178° | 178° |
Panel Type | IPS | IPS |
Contrast Ratio | 700:1 | 800:1 |
Brightness | 250 cd/m2 | 350 cd/m2 |
Color Gamut | 65% sRGB | 75% sRGB |
Color Depth | 252K(6bit) | 16.7M (8bit) |
Viewable Area (mm) | 149.98 × 86.97 ×  mm (5.9 × 3.42 inch) | 216.576 × 135.36 ×  mm (8.53 × 5.33 inch) |
Physical | ||
Material | ABS Plastic | ABS Plastic |
Product Size | 177.8 × 110 × 41 mm (7 × 4.33 × 1.61 inch) | 245 × 160 × 41 mm (9.65 × 6.3 × 1.61 inch) |
Net Weight | 0.38 kg (0.83 lbs) | 0.58 kg (1.28 lbs) |
Rated Power | 8W | 8W |
Interface | 1 × USB Type-C (for Audio&Video Input & Output & Touchscreen) / 1 × HDMI for Audio & Video Input /1 × DC port for Power Input / 1 × 3.5mm AUX for audio output / |
1 × USB Type-C (for Audio&Video Input & Output & Touchscreen) / 1 × HDMI for Audio & Video Input /1 × DC port for Power Input / 1 × 3.5mm AUX for audio output / |
Advanced | ||
Touch Screen | Yes, 10 points multi-touch capacitive screen | Yes, 10 points multi-touch capacitive screen |
Gravity Sensor | No | No |
Built-in Speakers | Yes, two speakers 8Ω 1W | Yes, two speakers 8Ω 1W |
Vesa | Yes, 75×75 M3×6mm | Yes, 75×75 M3×6mm |
Driver Free | Yes | Yes |
Stand Holder | No | No |
Cover Case | Yes, the protective stand cover case | Yes, the protective stand cover case |
Package | ||
Package Size | 297 × 213 × 67 mm (11.69 × 8.39 × 2.64 inch) | 276 × 210 × 56 mm (10.87 × 8.27 × 2.2 inch) |
Package Weight | 1.1 kg (2.43 lbs) | 1.33 kg (2.93 lbs) |
