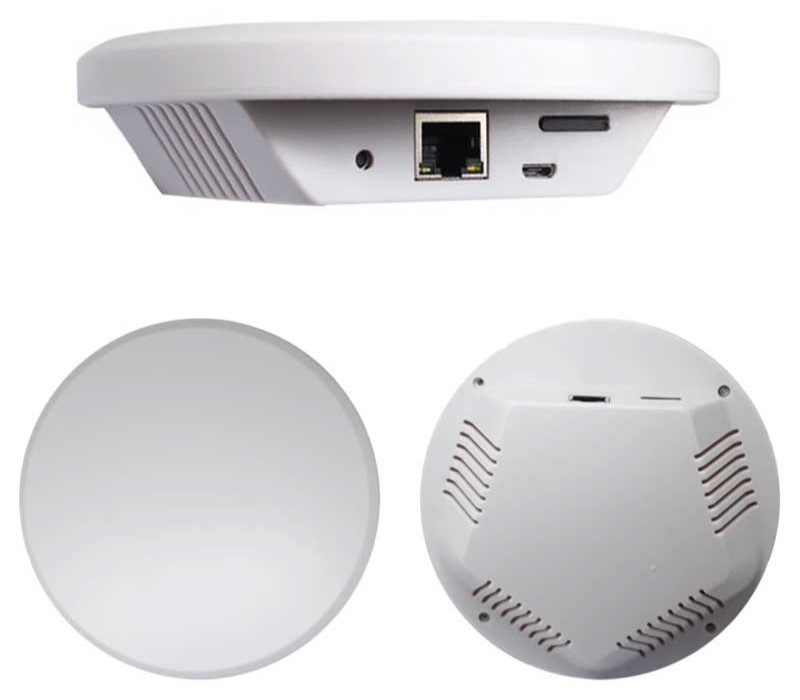

WiFi and Bluetooth Gateway Beacon Positioning Base Station iBeacon Signal Reception Data Collector
WiFi and Bluetooth Gateway Beacon Positioning Base Station iBeacon Signal Reception Data Collector - Image 2
WiFi and Bluetooth Gateway Beacon Positioning Base Station iBeacon Signal Reception Data Collector - Image 3

WiFi and Bluetooth Gateway Beacon Positioning Base Station iBeacon Signal Reception Data Collector

Original price was: $70.00.Current price is: $62.50.

WiFi and Bluetooth Gateway Beacon


Ships From: China
Supplier: Tecksay SKU: GW1 Bluetooth Gateway Categories: , , Tags: , , , , More From:

WiFi and Bluetooth Gateway Beacon Positioning Base Station iBeacon Signal Reception Data Collector

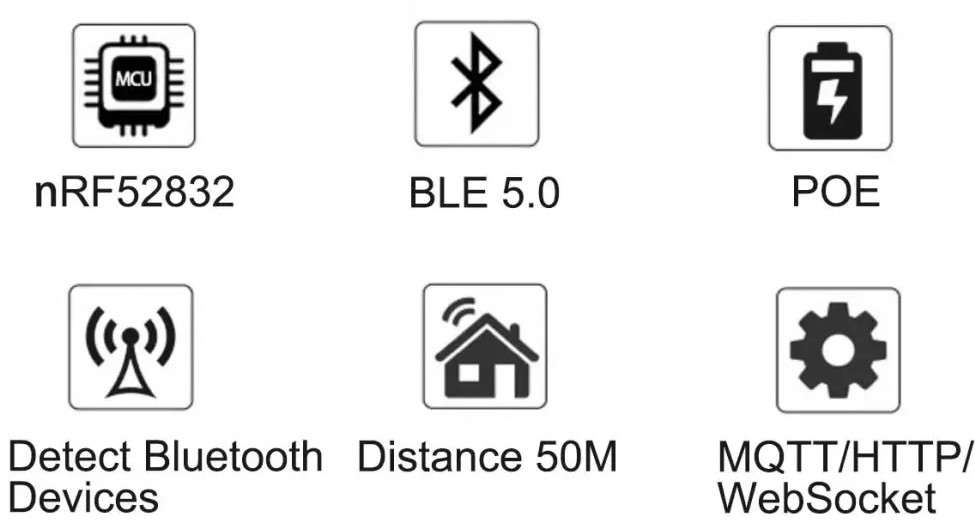

Using the nRF52832 Bluetooth chip, with ultra-high Bluetooth receiving sensitivity, to achieve large-scale monitoring, a Cortex-M4 microcontroller core, and ultra-high processing speed. Supports three data upload methods: MQTT, HTTP, and WebSocket. It can scan multiple types of BLE data (directed, non-directed, connectable, and unlinkable broadcast).

Features

  • Model No: GW1 Bluetooth Gateway
  • Can be filtered through RSSI
  • Read broadcast information from multiple BLE devices simultaneously and upload it to a remote server.
  • Built-in watchdog ensures product stability
  • Support software air upgrade

Parameters

  • Power supply: 5V/2A Micro USB or POE
  • Upload data: BLE Broadcast Data
  • Upload Protocol: MQTT, HTTP, Websocket
  • Upgrade: Aerial Upgrade
  • Size: Φ150mm*36mm
  • Working temperature -20 ℃~60 ℃

Bluetooth

  • Chipset: nRF52832
  • Working Voltage: 1.8- 3.6V
  • Working Frequency: 2402 – 2480MHz
  • Receiving Current: 5.4mA
  • Sleep Current: 0.3uA
  • Receiving Sensitivity: – 97 dBm
  • Speed: 1Mbps, 2Mbps
  • Scanning Distance: 50m

WiFi

  • Chipset: ESP32
  • Protocol: Supports 802.11 b/g/n/e/i (802.11n, speed 150 Mbps)
  • Frequency Band: 2.4 GHz frequency band
  • Transmission Power: @ 802.11dB + 20dBm, @ 802.11n + 14dBm
  • Speed: 150Mbps
  • Distance: Within a range of 100M in an open space

Ethernet

  • Working Mode: Full duplex 10-BASE-T 100BASE-TX transceiver, supporting
  • 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operations
  • POE: 15W Ethernet power supply complies with IEEE 802.3a specification

Application Scenarios

  • Warehouse Management
  • Asset Management
  • Parking Lots
  • Indoor Positioning
  • Industrial Automation
