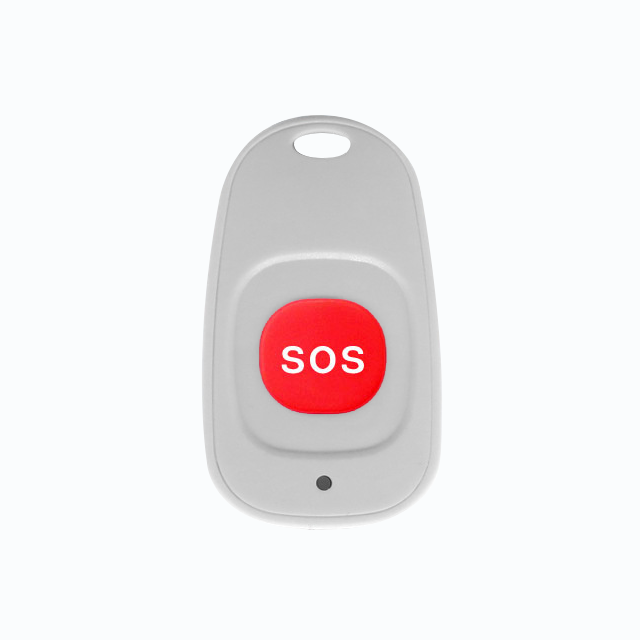

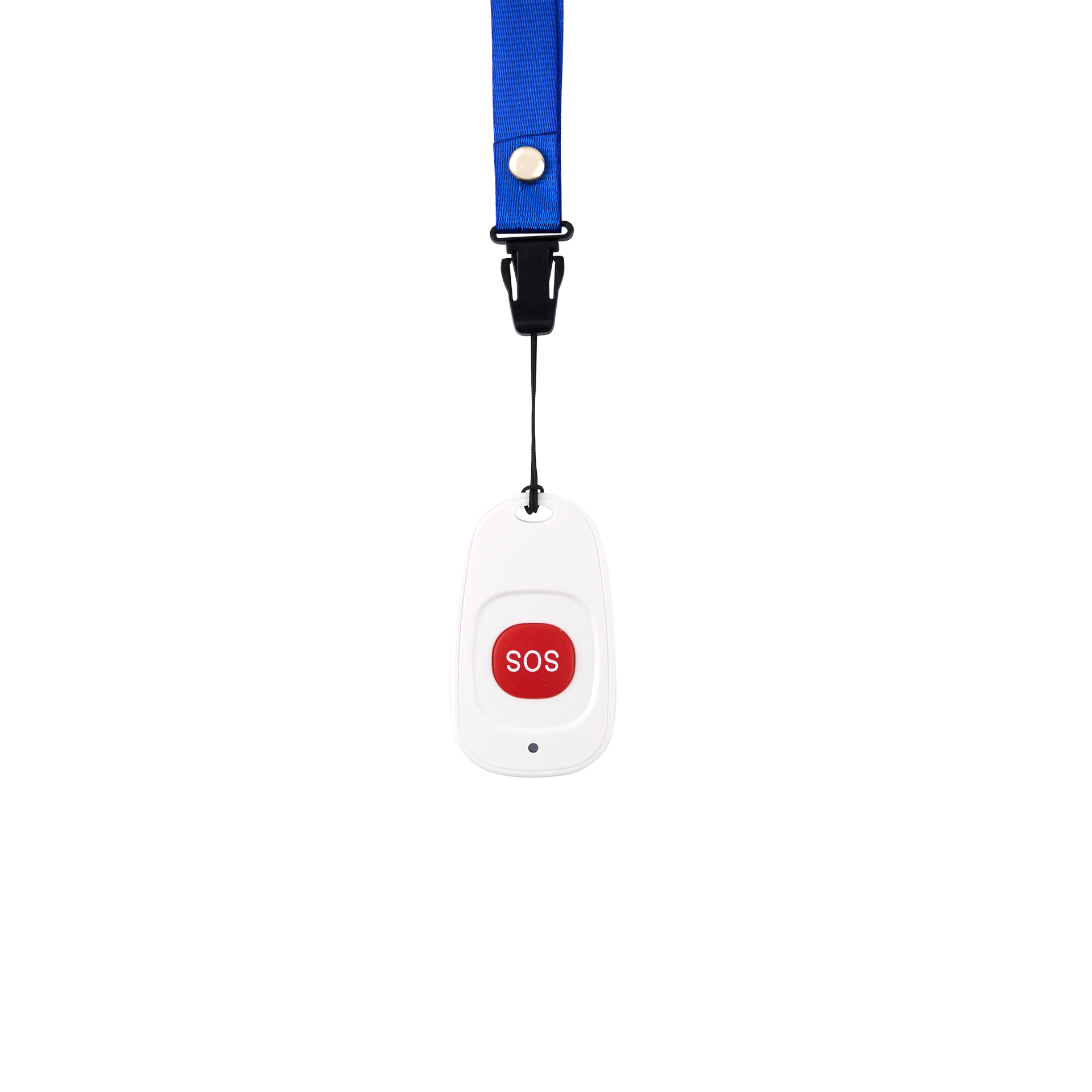

Ble 5.0 Wearable Programmable Personal Portable Location Panic Beacon Sensor With SOS Button
HCBB50 is a Bluetooth Beacon with an SOS button based on a low-power Bluetooth chip. A CR2032 replaceable battery powers it, and the battery life is up to 1 year (in the case of 0 dBm transmission power and 1s broadcast interval). HCBB50 can broadcast Bluetooth name, Bluetooth MAC address, UUID, Major, Minor, RSSI @ 1 m, battery level, and SOS information, where Bluetooth name, UUID, Major, Minor, transmission power, and broadcast interval can be set through the mobile phone APP (KTBB Connect). All broadcast content can be customized according to customer needs.
- HCBB50 broadcast distance is 100 meters (open space visual distance).
- HCBB50 is widely used in SOS alarms, nursing homes, elder care, and other application scenarios.
Features
- Ultra-low power consumption, with a battery life time of up to 1 year (0 dBm / 1s, ambient temperature of 25°C);
- The broadcast distance is up to 100 meters (open visual distance)
- The Beacon parameters can be flexibly configured through the mobile phone APP
- Support for Bluetooth BLE4.2/5.0 protocol
- SOS button
- A LAN ED light to indicate the SOS status
- Compliance with the RoSH certification
- Compliance with CE, FCC, and SRRC certification
Basic specifications | |
Product model | HCBB50 |
Product size | 59.3*34.3*12mm |
Case material | ABS |
Battery model | CR2032 |
Battery voltage | 3.0V |
Battery capacity | 220mAh |
Battery replaceable | Yes |
Configure APP | KTBB Connect |
Technical specifications | |
Bluetooth version | BLE4.2/5.0 |
Broadcast data format | iBeacon or customized |
Frequency range | 2400MHz~2483.5MHz |
Transmitting power | -40 dBm~+4 dBm (default zero dBm) |
Broadcast interval | 100ms~10s (default 1s) |
Receiving sensitivity | -95dBm |
Transmitting distance | 100 m (open visual distance) |
Average current | 18uA(0dBm/1s) |
Battery life span | 1 Years (0dBm/1s,Ambient temperature: 25°C) * |
Working temperature | -20ºC~70ºC |
Storage temperature | -40ºC~85ºC |
Working humidity | From 10% to 90% without condensation |
Storage humidity | 5%~90% with no condensation |
