UAV Monitoring Device for Drones and Pilot Real-Time Position Detection System 70MHz–6GHz Handheld

70MHz–6GHz Handheld Passive UAV Monitoring Detector, Full Compatibility with DJI, Autel, Hubsan, FPV Racing & DIY Drones, Supports ASTM F3411, EN 4709, GB42590 Global Remote ID (RID) Standards  This portable passive drone detector supports 70MHz-6GHz full frequency coverage, can locate both drone aircraft and pilot remote controller within 1-3km, built-in offline map, triple alarm, 5-6h long endurance, ideal for global low-altitude security scenarios.

Main Parameters

1. 70MHz-6GHz Ultra-Wide Full Band Coverage, 100% UAV Compatibility

• Covers all drone control & FPV video bands: 900M/1.2G/2.4G/5.2G/5.8G
• Compatible with DJI, Autel, FPV racing drones, DIY assembled UAVs
• Decode global RID standards: GB42590-2023, ASD-STAN prEN 4709-002, ASTM F3411
• Acquire complete data: drone ID, longitude & latitude of drones and operators, altitude, flight speed, distance, UAV bearing, real-time flight trajectories, etc.

2. Max 3km detection range

• Max 3km detection in open areas, stable 1km detection in a complex urban environment

3. Offline Independent Operation, No Network Limitation

• With a built-in offline map,  no 4G/5G or external base station required
• Stable positioning in border, mountain, oil field, and signal-free wild areas

4. Dual identification algorithm, comprehensive and accurate detection

• Spectrum analysis & data packet parsing, low false alarm rate, making the detection comprehensive and accurate

5. All-Weather Ultra-Long Endurance

• 8000mah built-in lithium battery, 5-6 hours of continuous working time
• Low power consumption ≤12W, supports all-day outdoor patrol
• Wide temperature range: -30℃ ~ +50℃, adapt cold, high temperature and rainy environment

6. Ultra-Light Handheld Design, Simple Operation & Data Export

• Compact size: ≤170×72×30mm (without antennas), only 320g weight, one-hand operation
• Touch screen Android system, boots within 30s, no professional training needed
• 3 reminder modes: screen pop-up text + buzzer + vibration
• Save 30 days of detection records, export all data via SD card for security evidence

Technical Specifications

Application Scenarios

• Suitable for all global low-altitude security fields:
• Aviation Security: Civil airports, cargo ports, high-speed railway stations
• Judicial Security: Prisons, detention centers, rehabilitation centers
• Government Core Zones: Government compounds, confidential research institutes
• Large Temporary Events: Sports games, concerts, summits, exhibitions
• Border & Energy Patrol: Border checkpoints, oil depots, chemical plants, mines
• Civil High-End Security: Scenic spots, large factories, high-end villa communities

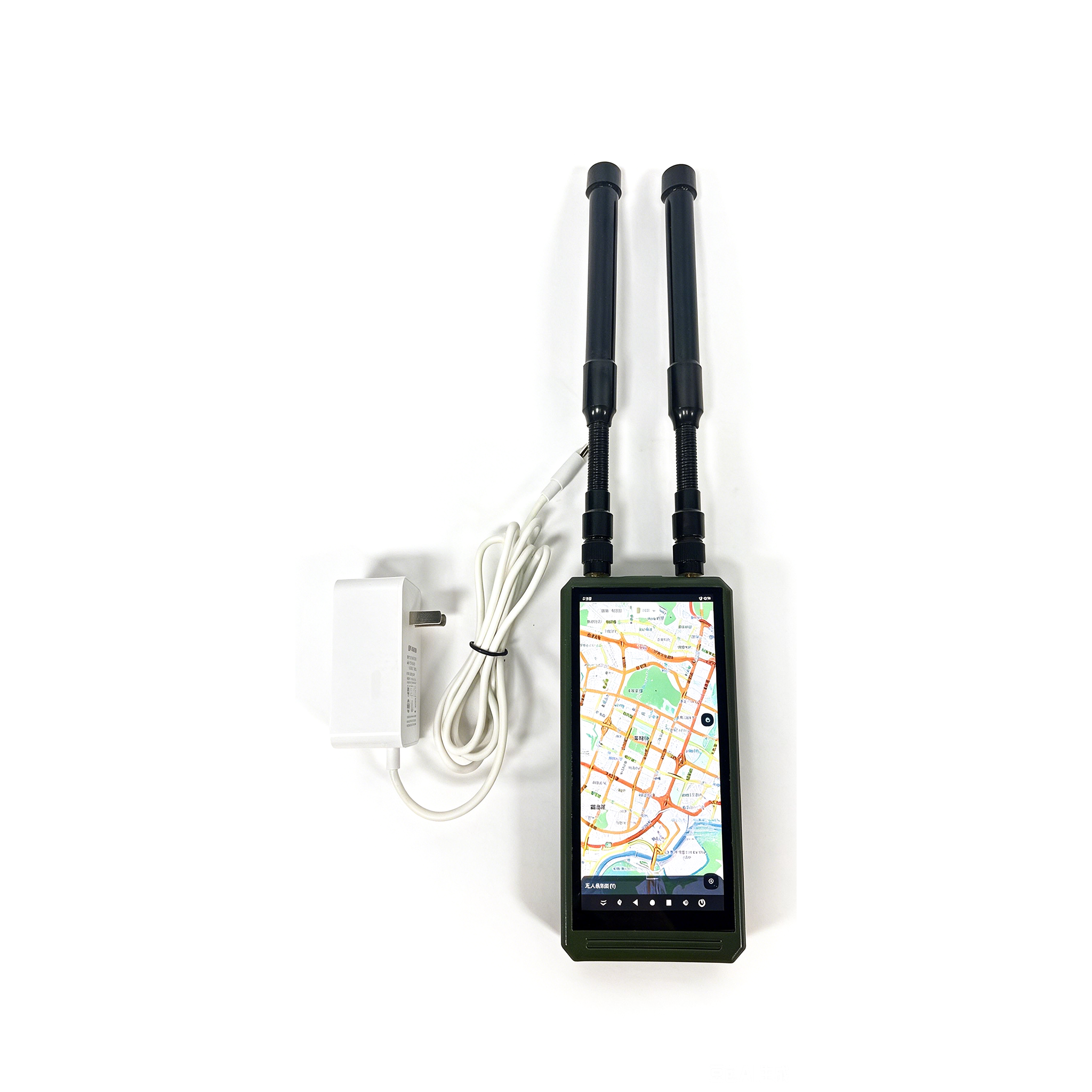

Standard Packing List

• Main Unit × 1 pcs
• Antennas × 2 pcs
• Charger (12V 4A )× 1 pcs
• User Manual × 1 copy
• Packing Box × 1 pcs (230*120*50mm & 2kgs)

Frequently Asked Questions

Q1: Can it work without a cellular network?
A1: Yes, with a built-in offline map, positioning works normally in areas without any mobile signal.

Q2: What drones can this device detect?
A2: It covers all mainstream consumer & FPV drones and supports global RID standard decoding to read drone identity information.

Q3: What’s the warranty period?
A3: A 12-month warranty and lifelong technical support.

This handheld UAV detector delivers powerful overall performance and fits a wide range of security scenarios. Designed to identify FPV racing drones, self-assembled DIY UAVs, and mainstream-branded drones, including DJI and Autel, it fully supports all unmanned aerial vehicles compliant with global core Remote ID standards: GB42590-2023, ASD-STAN prEN 4709-002, and ASTM F3411.

It captures complete data, including drone ID, aircraft & pilot latitude/longitude, altitude, flight speed, and flight track, compatible with all legally compliant drones sold in the US, EU, China, and global markets.

Features

1. Multi-Mode Dual Detection: Integrates spectrum analysis and data packet decoding to enable full-coverage, high-precision UAV identification and interference signal filtering.
2. Complete RID Data Acquisition: For all UAVs compliant with GB 42590-2023, ASD-STAN prEN 4709-002, and ASTM F3411 global Remote ID standards, the detector extracts full-dimensional operational data: aircraft & pilot longitude/latitude, unique drone ID, separation distance, flight altitude, and heading.
3. Equipped with an embedded offline map, it instantly marks the detector, target drone, and pilot with icons when illegal UAVs intrude into the monitoring zone. Real-time flight tracks are displayed with one tap, and historical detection logs are stored for later review. Positioning remains fully functional even in signal-blind zones with no cellular network.
4. Ultra-Wide Full-Frequency Coverage: Spans the full RF spectrum for analog & digital FPV racing drones, capturing every suspicious airborne target without omission.
5. Accurate Channel Identification: Pinpoints the exact operating frequency of drone video downlinks for rapid signal-source tracing.
6. Standalone Offline Operation: Works independently without external base stations or network infrastructure, delivering fully autonomous, confidential monitoring with zero data leakage risks.
7. Triple Synchronized Alarm System: 3 instant alert modes are activated simultaneously: on-screen text pop-ups, buzzer audio, and built-in vibration, guaranteeing operators catch intrusions under noisy or silent patrol conditions.
8. All-Day Long Battery Life: Houses an 8Ah large-capacity lithium battery, supporting 5–6 hours of stable non-stop operation to fulfill full-shift outdoor patrol demands.
9. Ergonomic Portable Layout: Compact, lightweight body design allows plug-and-play startup with no complicated setup. The intuitive touch system lowers training costs, making it ideal for long-time outdoor patrols and emergency low-altitude security missions.

Operating Instructions:

1. Unpack and take out the unit. Inspect the exterior, built-in battery, and touch screen for damage. Notify our technical support immediately if any damage is found.

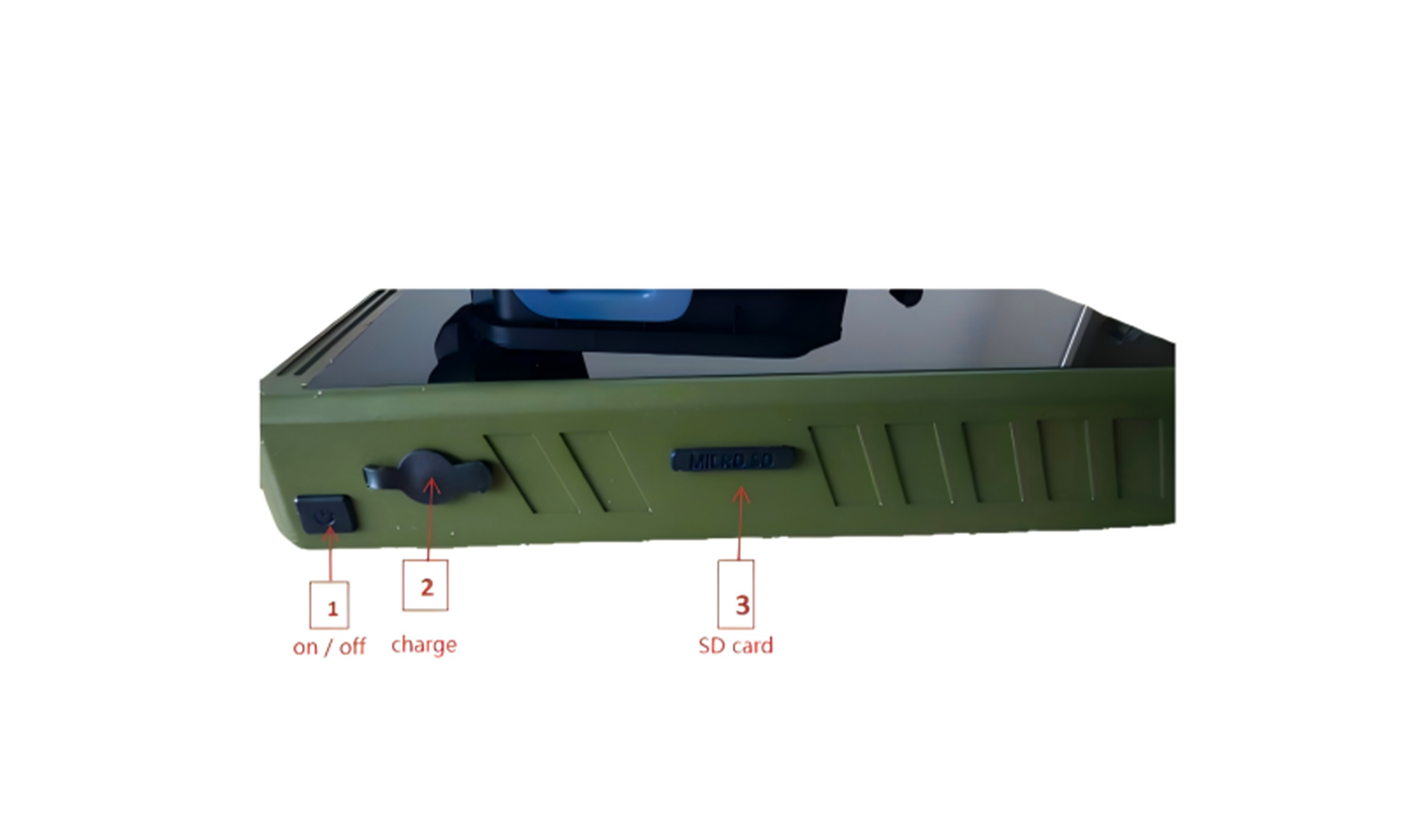

2. Power Button Operation: Long-press the power button at its center position to boot up; release the button once the screen lights up. The boot-up process takes 30 seconds.
3. Charging Port: Plug in the factory-supplied charger to start charging. This dedicated charger outputs 12V 4A; third-party chargers are prohibited. SD Card Slot: To export data recorded within the past 30 days, remove the SD card and copy the stored data tables to a computer.
4. Figure 4 shows the touchscreen.

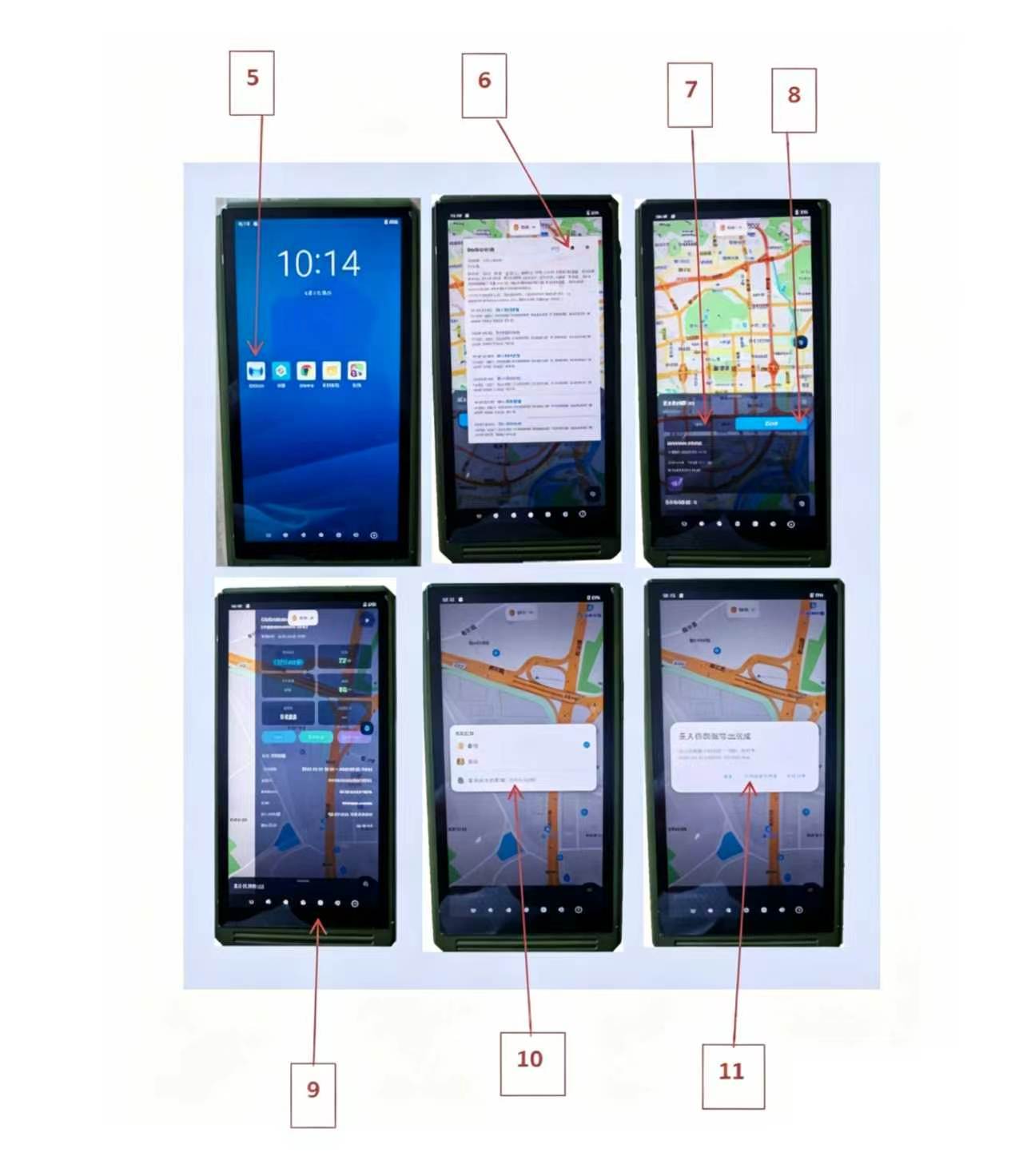

5. Figure 5 displays the device home screen, which contains the Detector APP. Tap to launch the APP, and the system will automatically authorize access.
6. Figure 6 presents the raw data dashboard displayed upon APP startup; this panel can be closed manually.
7. Figure 7 shows the quantity, model, and other basic information of detected UAVs. Tap this figure or tap any UAV icon on the screen to open the detailed data page shown in Figure 9, which includes UAV altitude, flight speed, distance between operator and detector, distance between UAV and detector, real-time flight trajectories, and other parameters.
8. Figure 8 stores all UAV detection logs generated within the past 30 days, allowing the same detailed data to be viewed as in Figure 7.
9. Figure 9 is the detail page for a single detected UAV. 10 Figures 10 and 11 are historical data export interfaces. All logs from the latest 30 days can be exported to an SD card and copied to a computer.
