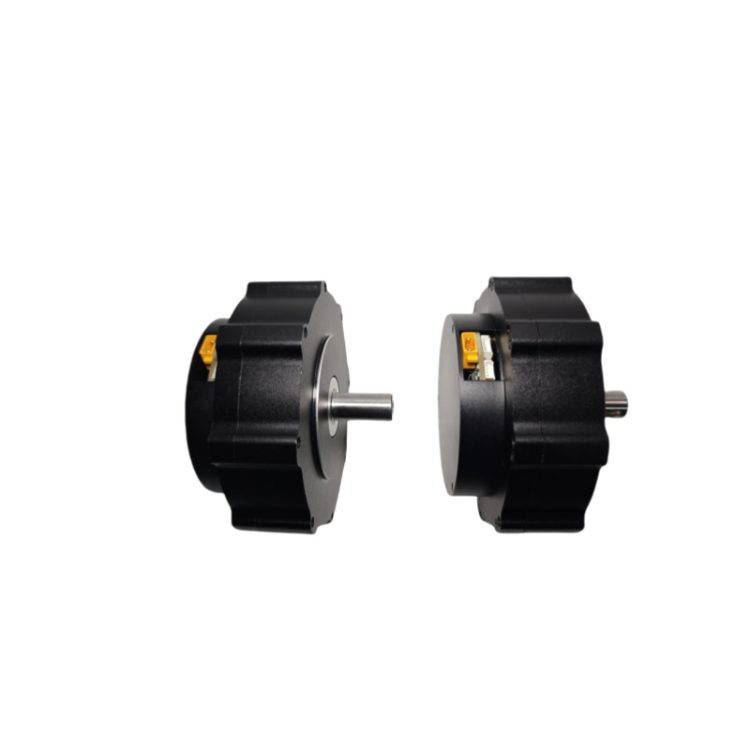

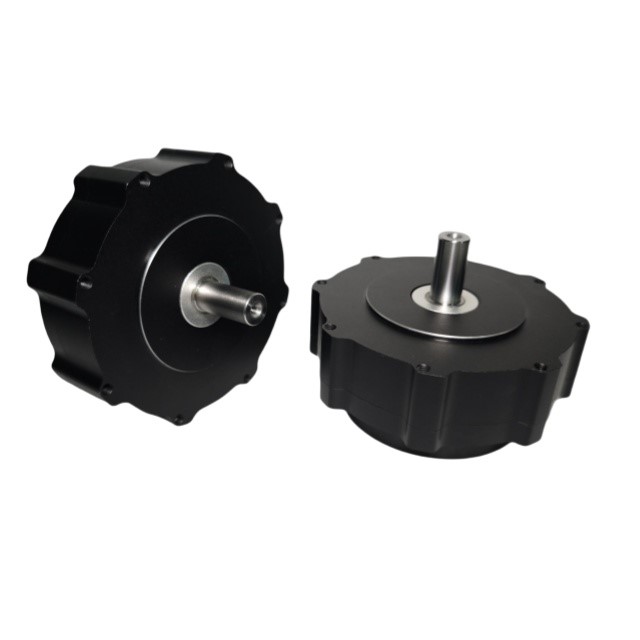

24VDC 175W Direct Drive BLDC Motor With Encoder and CANBUS Driver
The motor model KY96BL02017-07-WJ is a direct drive BLDC motor with a driver. It can position systems on various autonomous platforms or vehicles for precise transmission and motion control. It consists of a BLDC motor and a microcontroller unit.
Specifications:
- Model: KY96BL02017-07-WJ
- Rated voltage: 24VDC
- Rated power: 0.175 kW
- Rated torque: 2.17 N · m
- Peak torque: 5.5N.m
- Rated speed: 780 rpm
- Poles: 30
- IP rating: IP20
- Insulation Level: F
- Working Temp.: -40~50 degrees
- Net weight: 0.85kg
