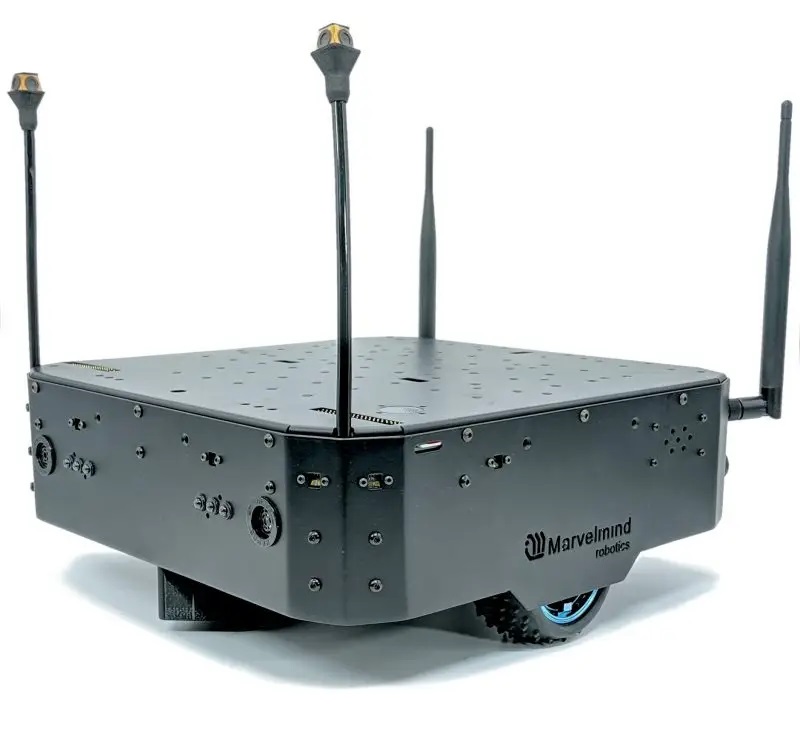

Autonomous Mobile Robot Boxie 2 for Smart Warehousing, Industrial Applications, Research, and Education

Boxie 2 is an autonomous mobile robot for smart warehousing, industrial applications, research, and education. It is a flexible robot with open interfaces, ready for connectivity with external devices (scanners, readers, arms, baskets), capable of carrying up to 10 kg, and with a running time of 10 to 48 hours.

Boxie – driving intro short

Typical use cases

• Performing automatic periodic scans by carrying the user’s scanning equipment (bar/QR code scanners, RFID readers, optical cameras, and other measurement devices)
• Autonomous delivery of goods or baskets with goods, tools, inventory in warehouses, assembly plants (expensive gauges and similar), chemical plants (samples, etc.) – up to 10 kg payload

Demo and help videos

Marvelmind Boxie API

The API provides very advanced, in-depth control of the robot. You can get data to your onboard or remote computer (for example, odometry readings or IMU data, motor current consumption, the detailed status of virtually any sensor, etc.). You can control the robot at the deepest level (for example, adjusting the deep settings of the indoor positioning system, using the front LEDs for illumination, or controlling the external power switches).

The Marvelmind Boxie SW pack will be emailed to you upon purchase and includes:

• Odo board software
• Software for internal mobile beacons (“hedges”). Notice that there are separate software files for the left and right hedge. Left – from the robot’s point of view, if the robot drives forward
• LIDAR board

For the first time after getting the robot or for the major SW updates, the Marvelmind Boxie SD card may be updated as well – it depends on the version of the robot you have. To do that:

• The Marvelmind Boxie SD card file will be emailed to you upon purchase – use only when the Micro SD card update is required
• This kind of update may be required only for specific major software updates. Typically, a basic update via the USB memory stick is sufficient and recommended.
• After that, the Boxie SW is updated via USB stick, and the process is fully automatic, taking only a few minutes. See more about the Marvelmind Boxie SW pack update above.
• Follow the steps in the Boxie Operating Manual that was emailed to you after the purchase.

Configurations and costs

Key specs and features

• Fully autonomous delivery from point A to point B (C, D, E, etc.) indoors with a single button click or via a remote one-click command from the Marvelmind Dashboard or your GUI via our open API
• Up to 10 kg payload with multiple optional mounted equipment, starting from basic baskets to arms with grippers
• Automatic LIDAR-based obstacle detection and avoidance for safety (12 x 1D LIDARs)
• Complete remote control & monitoring by a dispatcher or user via Marvelmind Dashboard or your GUI via our open API
• Long battery lifetime: up to 16 hours of driving with the default internal battery (96 Wh). Up to a 48-hour drive with the whole battery bay (480 Wh). Drive time is an estimation based on the current consumption and the battery’s capacity. Optional external batteries of up to 10kg
• Fast charging: ≤2h with the default fast charger – 5 A charging current
• Own weight: ~5kg net
• Additional internal power converters to power users’ equipment (displays, arms, cameras, etc.)
• Customized reporting and analytics (optional)
• White labeling variant (optional)
• Further customization (optional)

No additional assembly is required. Ready to drive out of the box. Ready to ship immediately when in stock (currently in stock). If not in stock, it will take ~4 weeks.

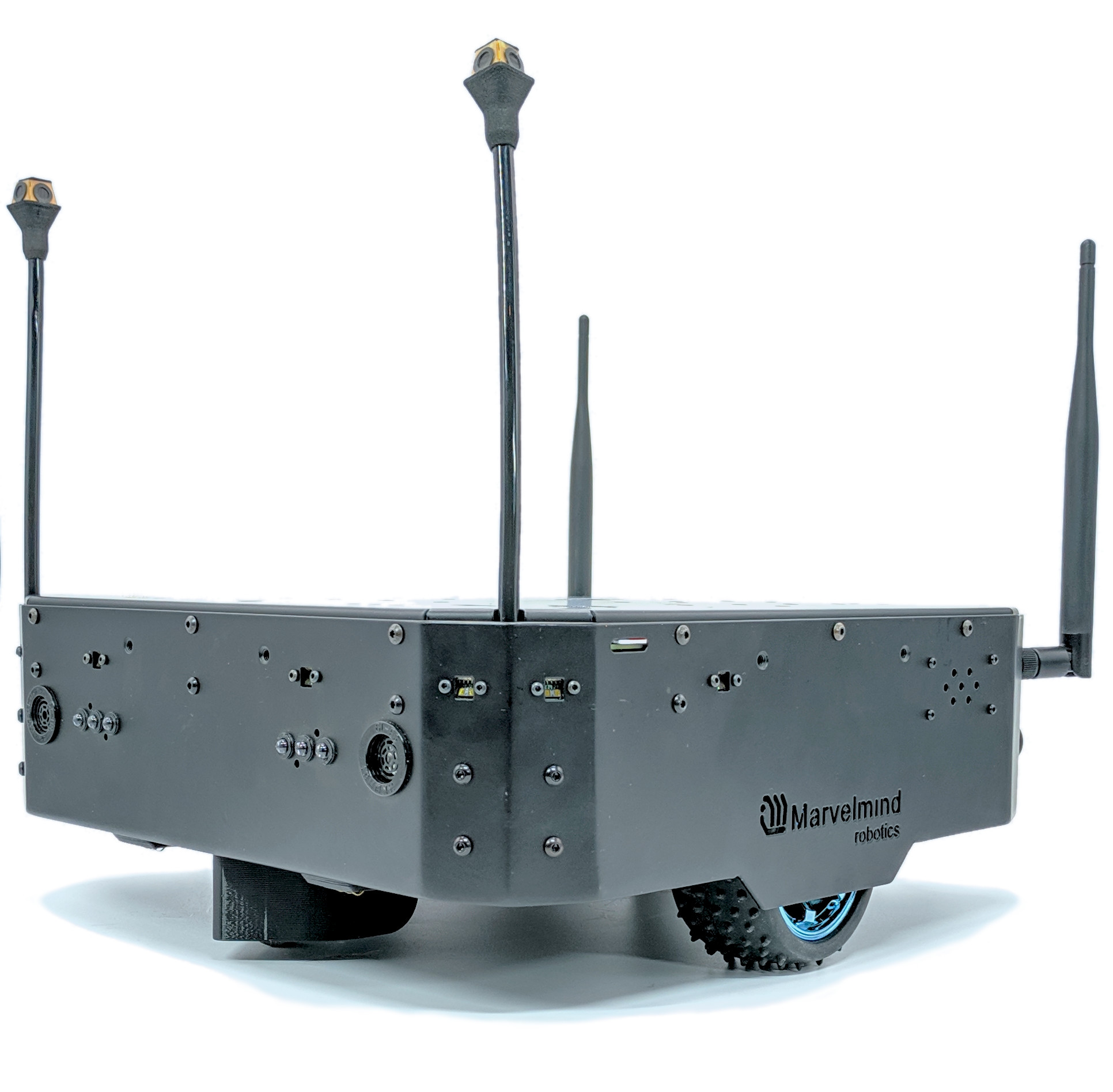

Technical Details

Advanced sensor fusion for localization, navigation, and autonomous driving: Marvelmind Indoor Positioning System in the Paired Beacons configuration for Location & Direction + Odometer + IMU

Obstacle Detection and Avoidance

• 12 x 1D LIDARs
• 2 x Sonars + 2 x Omni-Microphones
• Motor’s current sensing and odometry

Sensors

• Marvelmind Indoor “GPS”
• 12 x 1D LIDARs
• Up-facing camera for “stargazing”-based
• 6D IMU
• Odometer for each wheel
• 2 x sonars
• Voltage sensing
• Current sensing

 Processors

• Raspberry Pi Zero 2 W with Raspbian OS and MicroSD for easy update
• Several Marvelmind processors (Odo, Hedge Master, Hedge Slave, LIDARs) for robustness

APIs

• API is available on the low level (Odometer board, etc.) and the high-level – Raspberry, ROS
• The majority of internal functions and sensory information is either already available via the API or can be made available upon request.

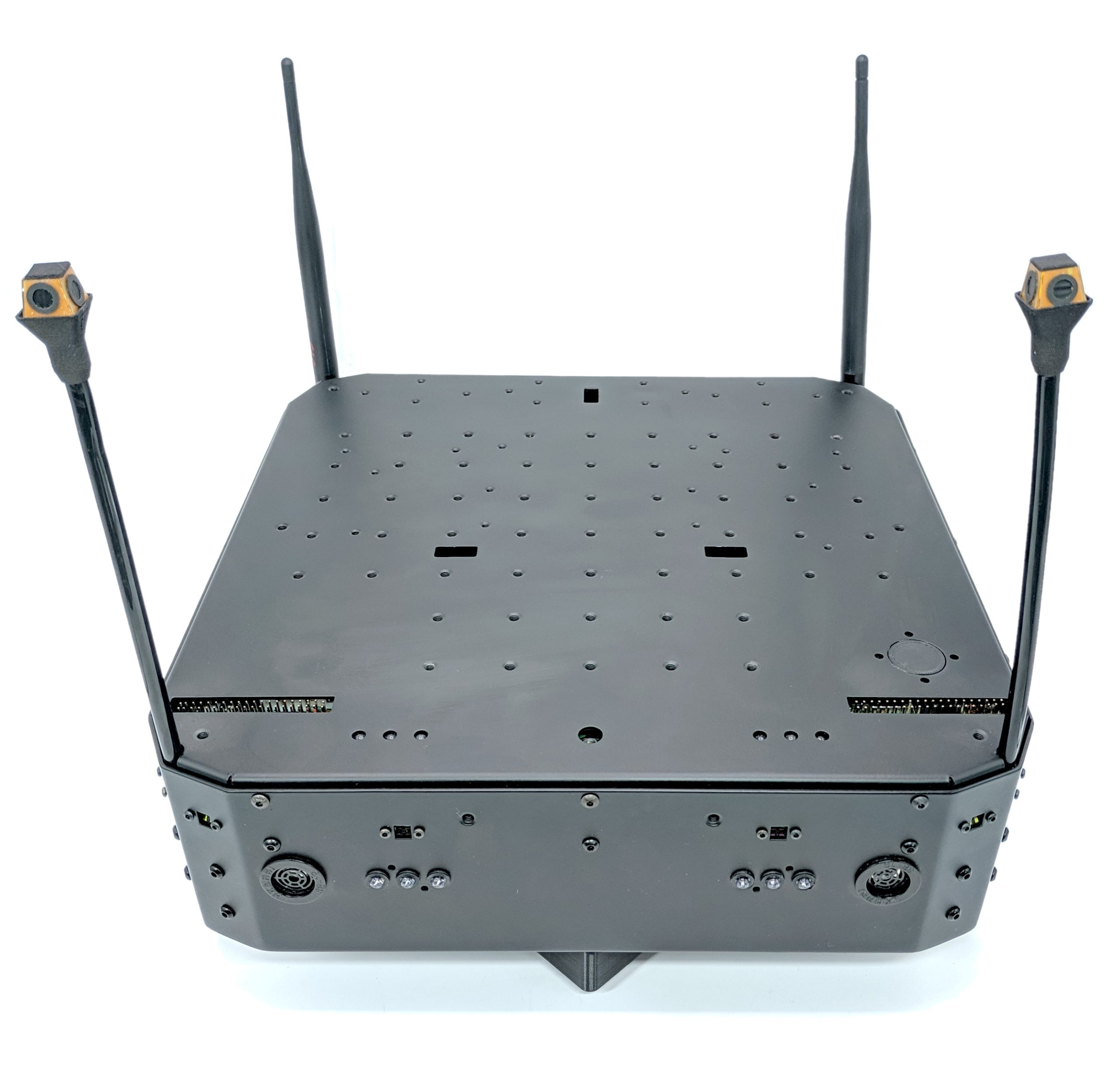

Chassis and kinematics

• Very rigid – 1mm steel
• Up to 10kg payload

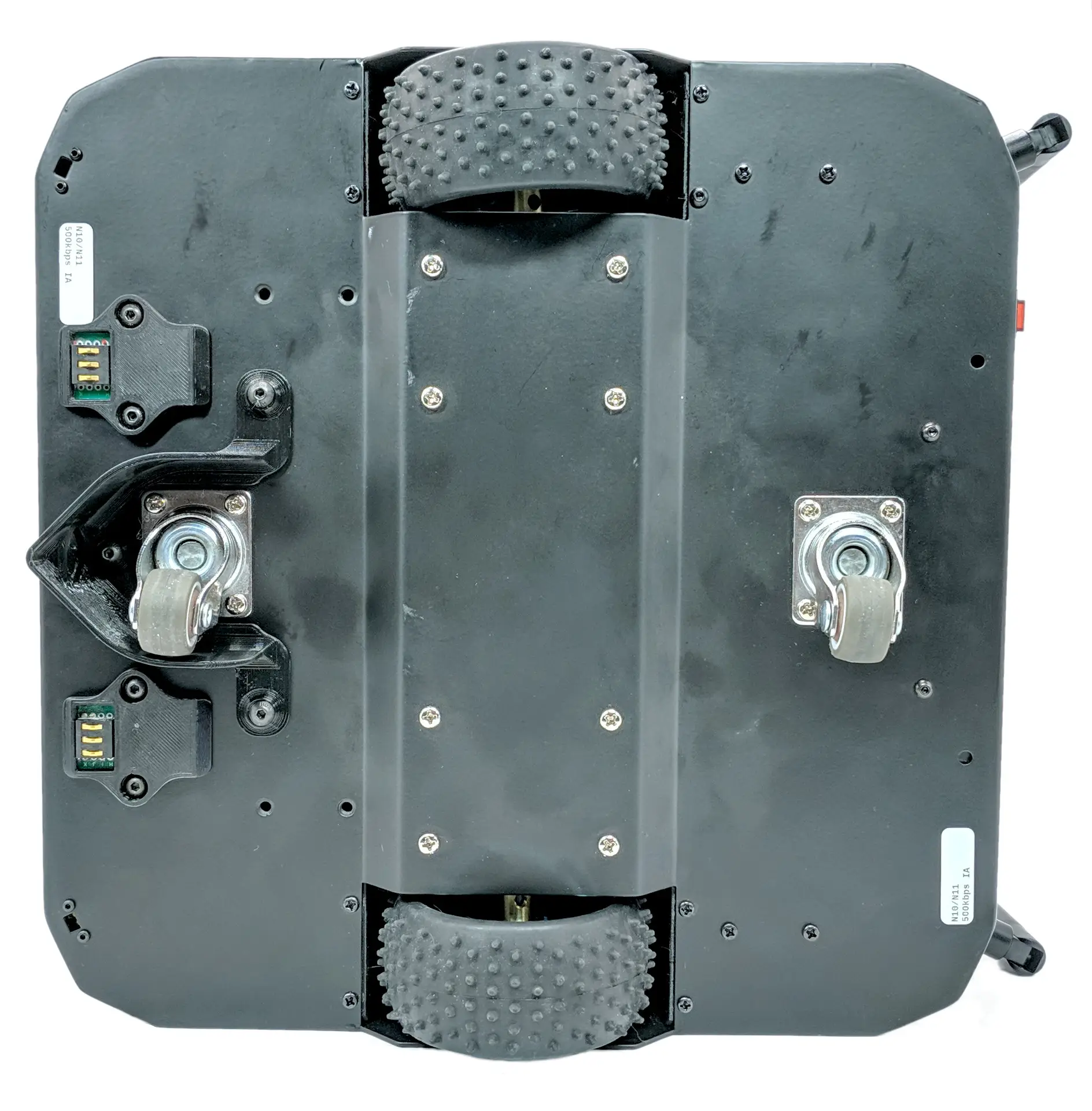

• Two-wheel drive with front and back caster wheels. Capable of turning around on one point
• There are multiple mounting holes for the most common boards:
  • Several flavors of Raspberry Pi
  • Jetson Nano
  • Arduino
  • 30×30 pattern 3mm holes

 Battery and chargers

• Internal 12.6 V LiPol battery with default 8 Ah capacity = 96 Wh
• Maximum internal battery capacity – up to 40 Ah (480 Wh)

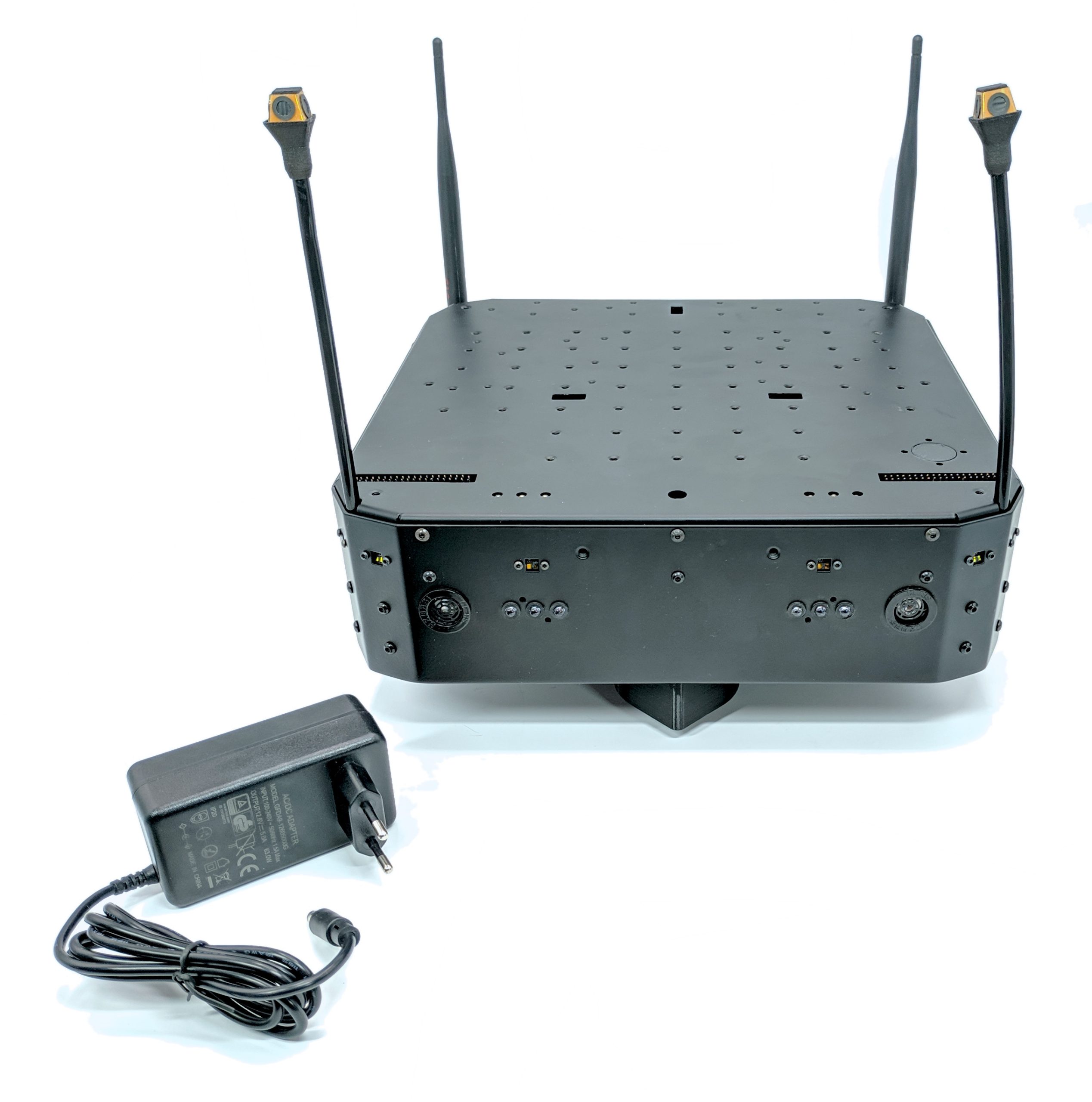

• Fast 5A charger

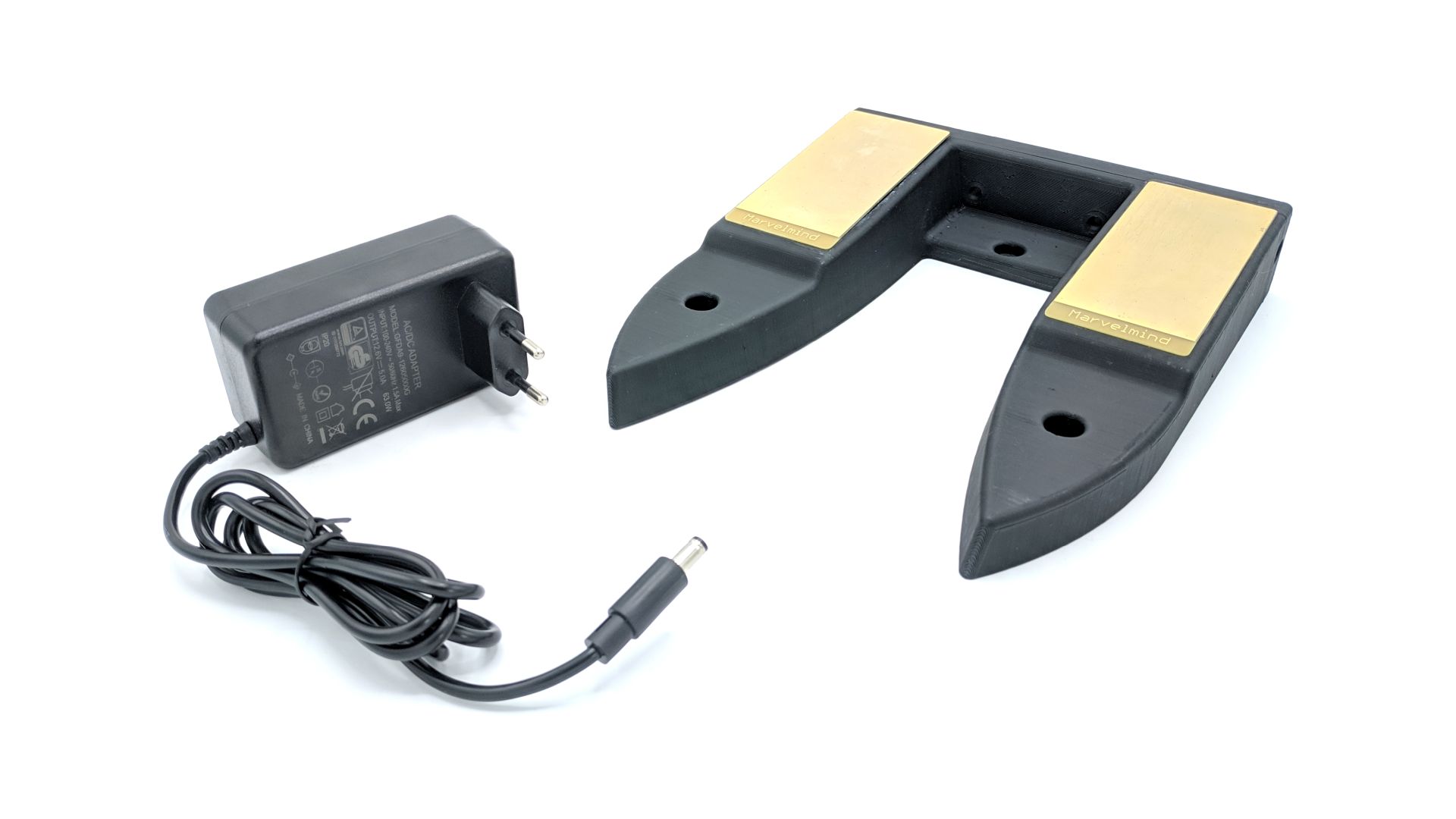

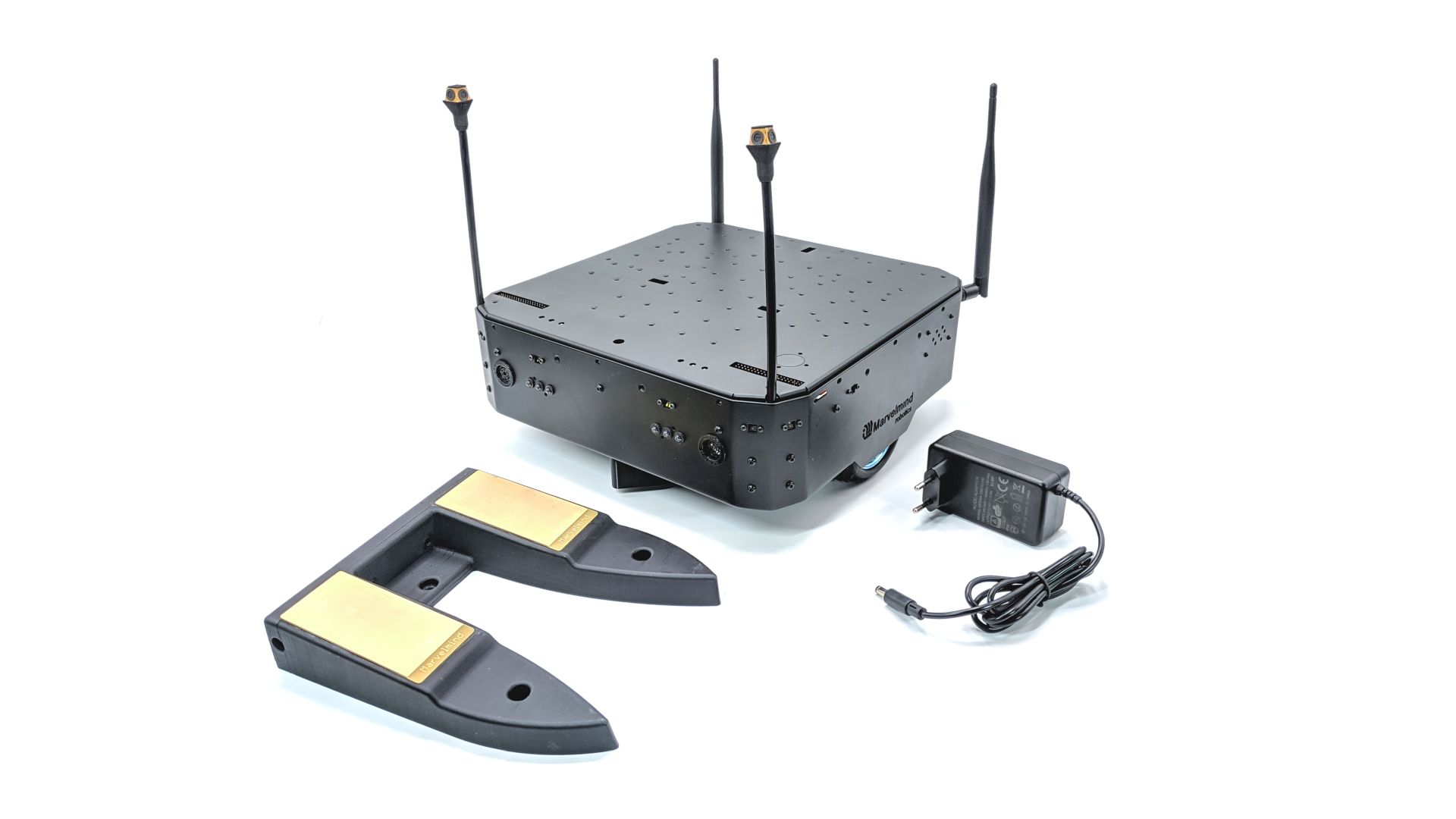

• Automatic charging station (in Standard and Advanced configurations)
• Optional external batteries
• Current and voltage sensing (also available via API)

External Interfaces

• 6-port USB hub
• 40 pins of Pi Zero 2 W
• 40 pins from our Odo board:
  • UART
  • SPI
  • I2C
  • +12V & 2A and +5V & 2A to power your external devices
  • GND switch up to 2 A to control your devices
• HDMI + USB hub for external monitor + keyboard + mouse for easy debugging
• Stereo sound
• Buzzer
• LED (top and 2 x front) for interfacing, debugging, and lighting
• 2 x programmable Functional Buttons (FN1 and FN2) and a Reset button

Wireless Connectivity

• Marvelmind radio in the license-free band (868 or 915 MHz) – handy for up to a few tens of kbps of data transmission to and from the robot, including the user’s payload, for example, recognized QR code readings.
• WiFi
• Bluetooth

Optical Sensors: Up-facing camera connected for autonomous driving based on “stargazing.”
