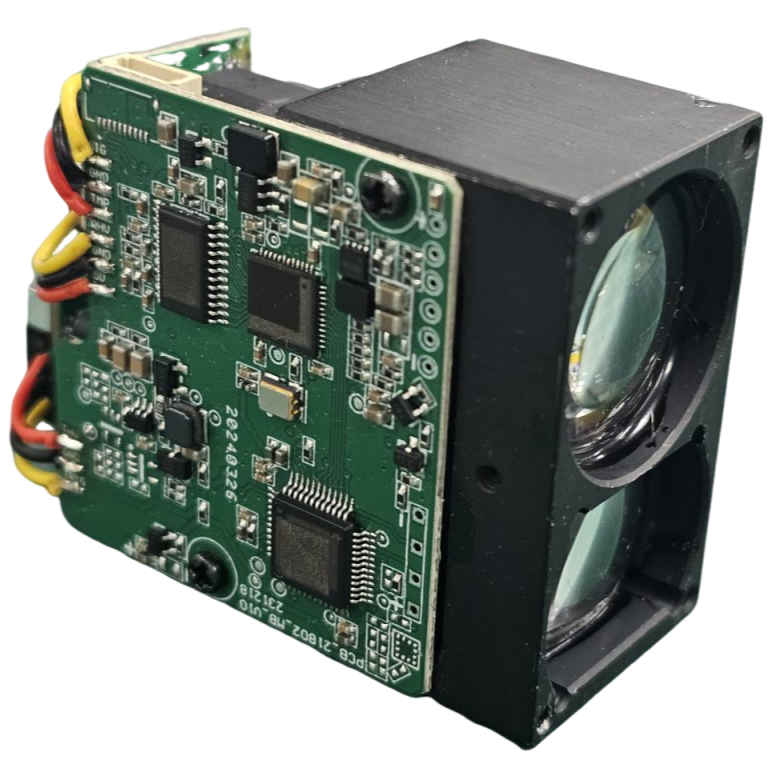

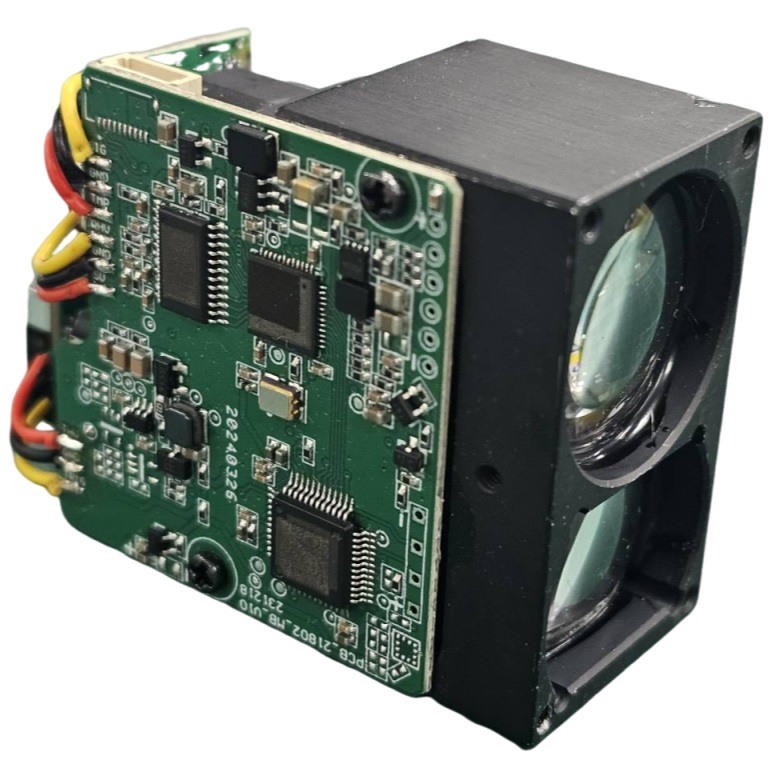

CA121 3KM Range Laser Distance Module

$1,799.00

Measuring Range: 5 m~3,000 m.

* The lead time for this product is about 2 weeks because it is custom-made and assembled per demand.


Ships From: Taiwan
Supplier: Precaster SKU: CA121 3KM Range Laser Distance Module Categories: , Tags: , , , More From:

CA121 3KM Range Laser Distance Module

Introducing CA121 Laser Distance Module – your compact, reliable solution for long-range measurements. Developed by Precaster, a specialist in advanced laser distance and angle measuring modules for industrial and commercial applications, CA121 is engineered to meet demanding needs. This cutting-edge module utilizes pulse technology to measure distances up to 3,000 meters accurately. Its fast response time of 0.3 seconds or less makes it ideal for various applications requiring precise measurements over extended ranges.

Features

  • Measures from -10°C to 50°C.
  • Various Measuring Modes For Different Scenarios, including Single Measurement, Continuous Single Measurement, Fast Measuring (10Hz), and Burst Mode (3 outputs with signal strength)
  • Digital output with UART/TTL.
  • Non-Contact Measuring Low Consumption Module.

Applications

  • Robotics and automation in manufacturing.
  • Automated warehousing and logistics systems.
  • Positioning and monitoring of objects.
  • Security Applications Movement Detections.
  • Monitoring and controlling the liquids or bulk materials level in tanks and silos.
  • Drone Applications.

Specifications

  • Maximum Measuring Range:  3,000 meters.
    (Expected Value: 3σ, Kodak White Boar. Optimal Range 3,600m.)
  • Minimum Measuring Range: 5 meters.
  • Repeatability Accuracy Within 100 Meters: ±0.5 meters.
  • Repeatability Accuracy Within 100 Meters – 500 Meters: ±1 meters.
    (Standard Deviation 2σ, Kodak White Board.)
  • Repeatability Accuracy Over 500 Meters:  ±0.5%*Distance.
  • Response Time: 0.3 – 0.8 Seconds. (Single Measurement Mode.)
  • Unit:  Meters.
  • Power Source: 3.6V – 5V ±0.2V.
  • Standby Consumption: 200mA.
  • Measuring Consumption: 900mA.
  • Laser Radiation: Class 1.
  • Laser Wavelength: 905nm.
  • Operating Temperature Range: -10°C~50°C.
  • Storage Temperature Range:  -40°C~60°C.
  • Serial Port Type: UART.

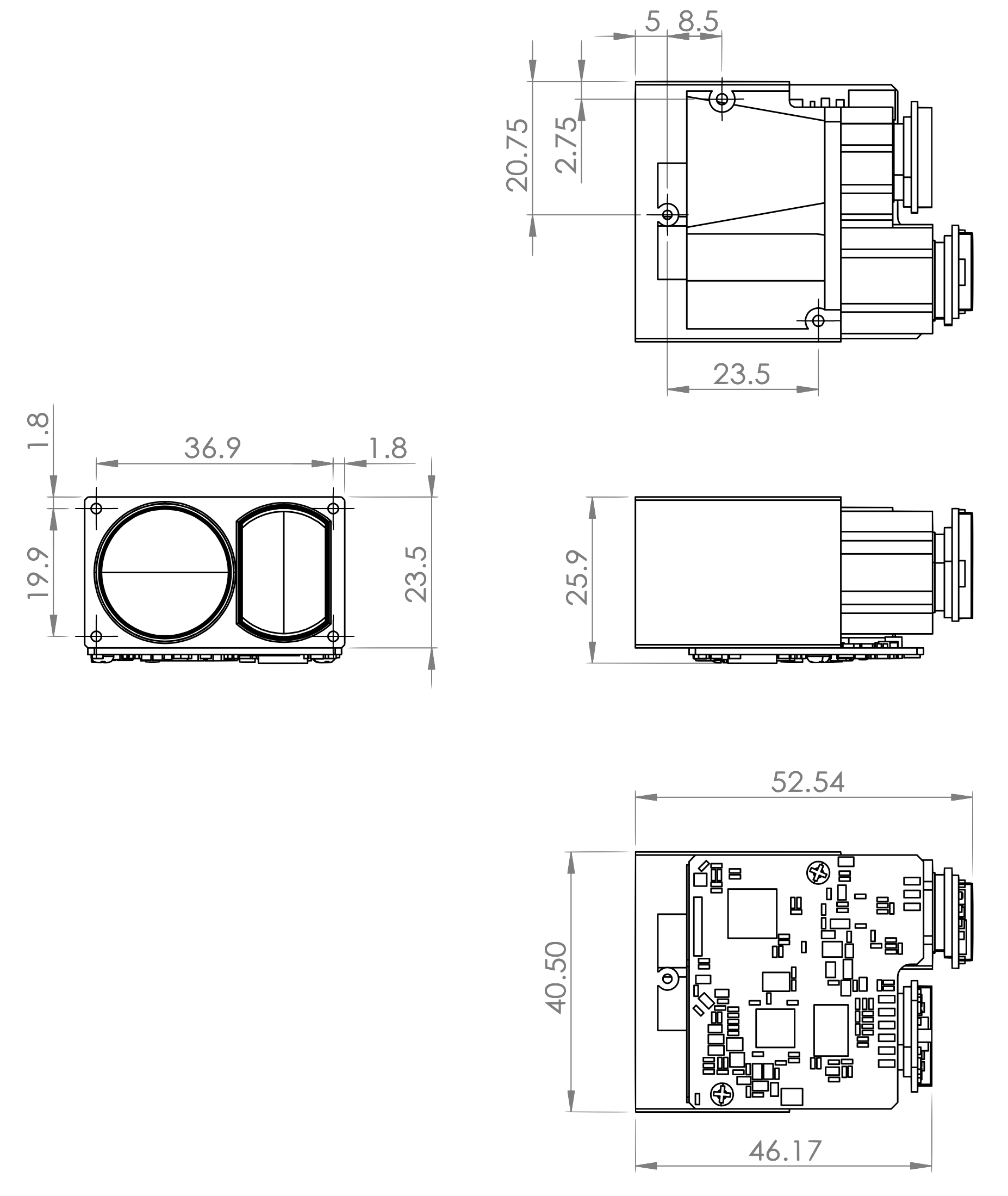

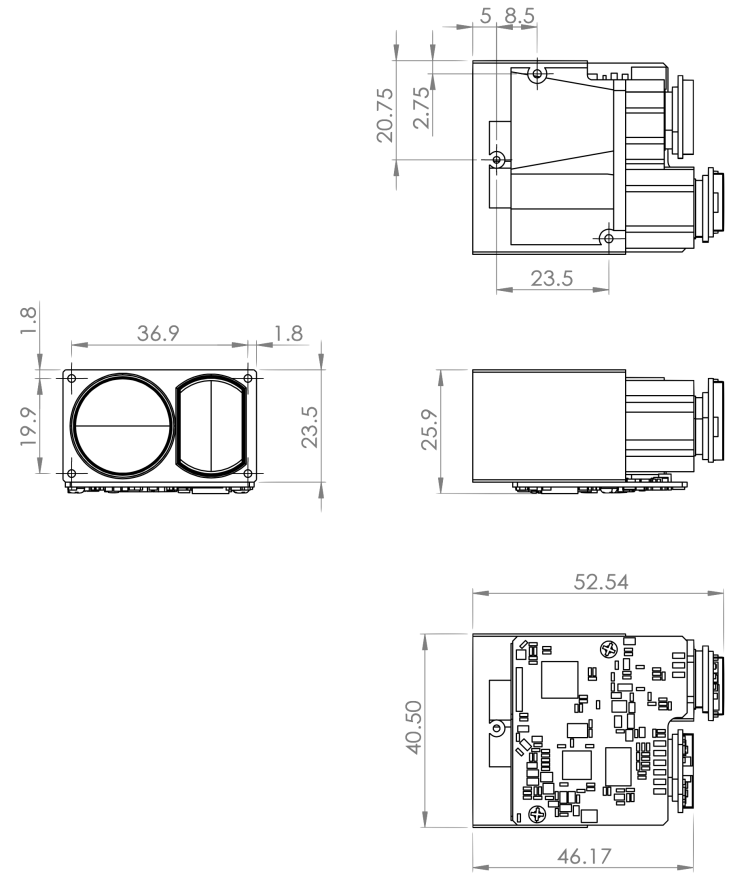

  • Dimensions : 540 x 40.5 x 26mm.
  • Weight: 65.4g / 2.3 oz. (Metal Frame)

Additional information

Weight 0.14 lbs
Dimensions 2.13 × 1.57 × 1.02 in
