Digital Stepper Driver for Nema 23, 24, 34 Stepper Motor

$43.99

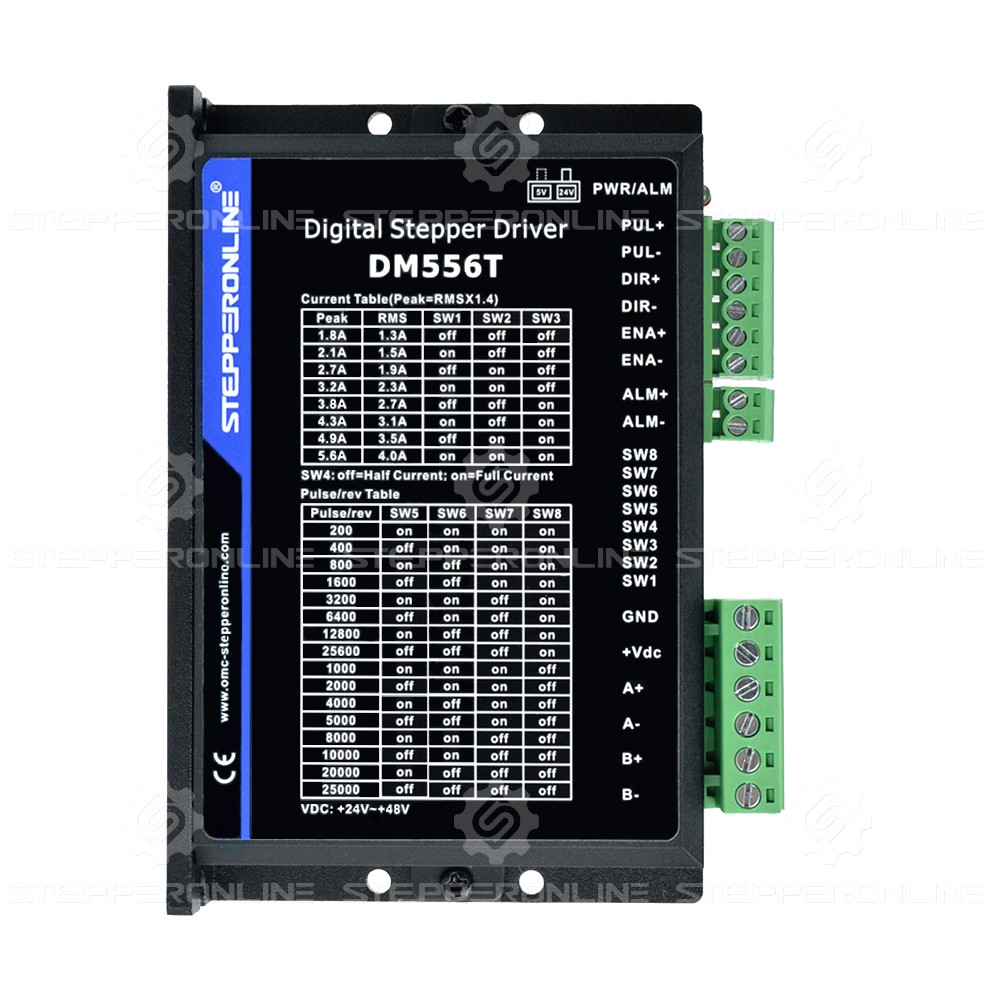

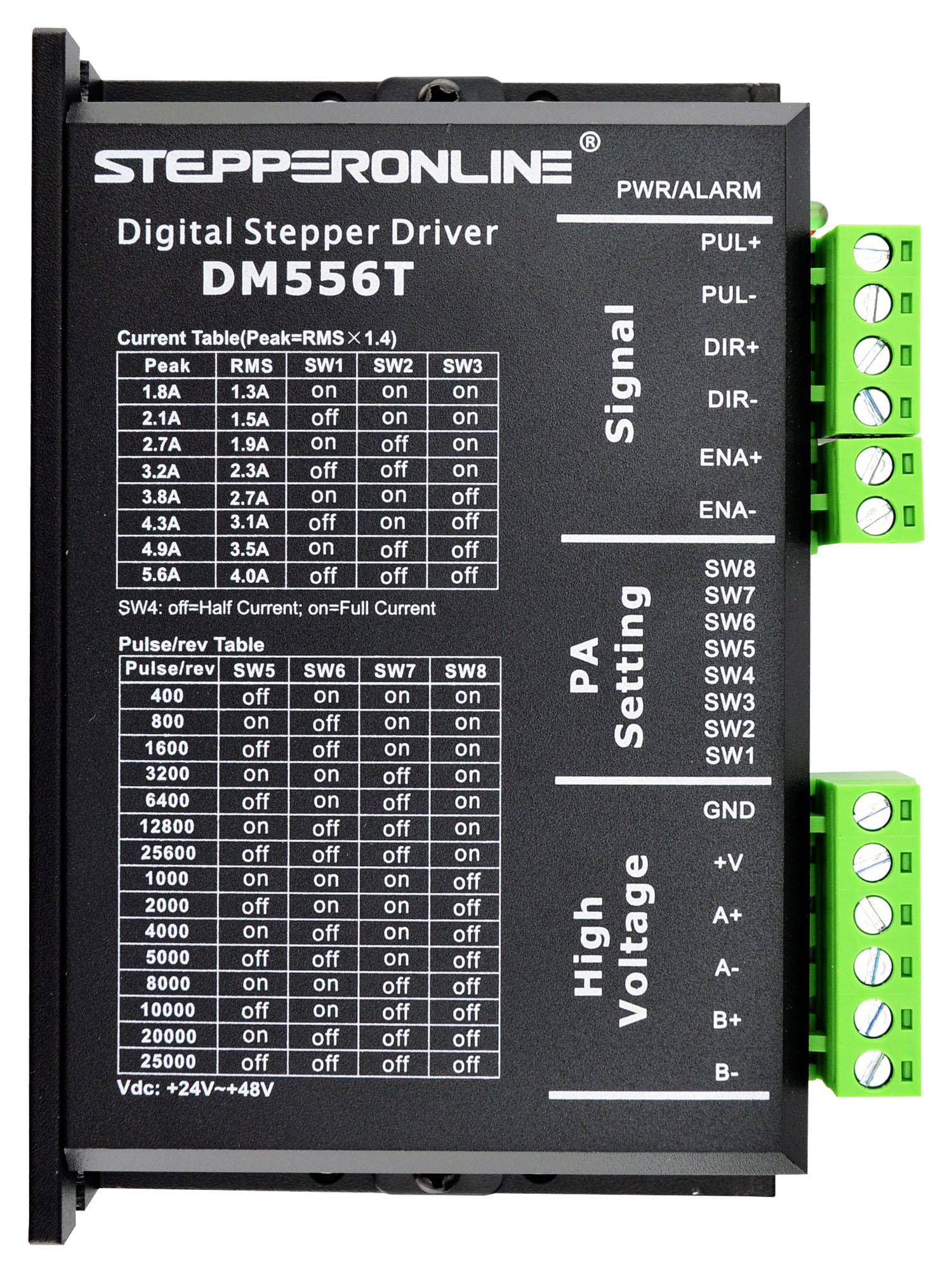

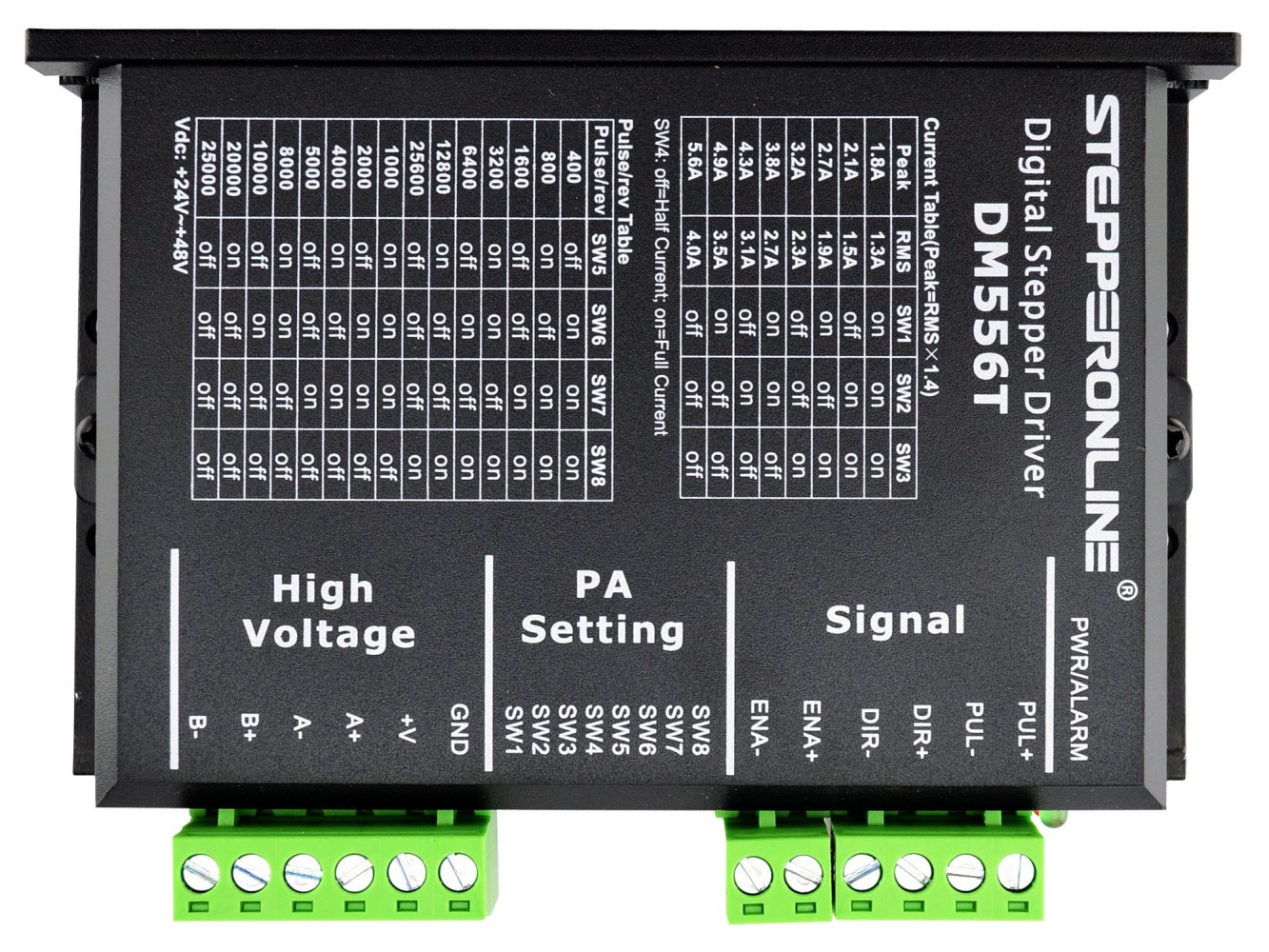

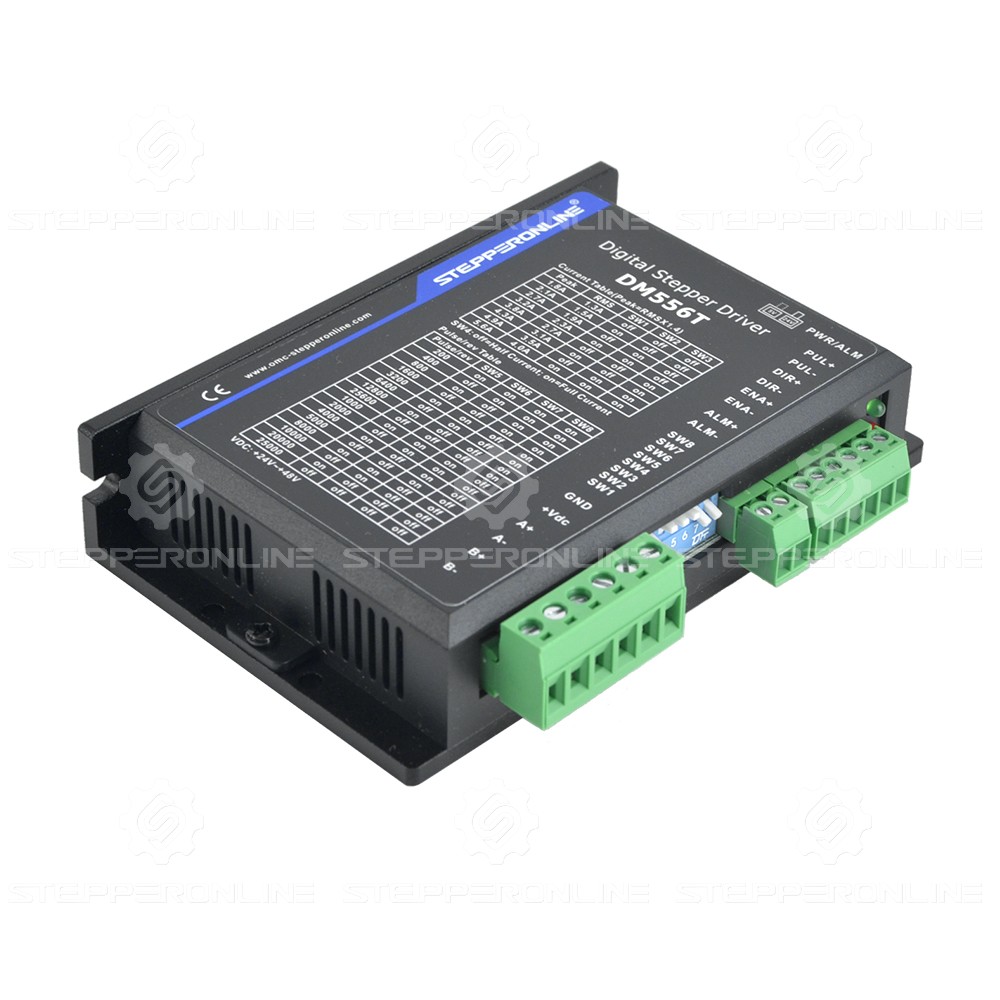

The DM556T is a digital stepper driver with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper driver is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 20-50VDC and it can output up to 5.6A current. All the micro step and output current are done via DIP switches. Therefore, the DM556T are ideal choices for applications requiring simple step & direction control of NEMA 23, 24 and 34 stepper motors.

This product is currently out of stock.


Made In: United States (US)

By STEPPERONLINE SKU: DM556T Category: Tags: , , , More From:

Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor

The DM556T is a digital stepper driver with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper driver is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 20-50VDC and it can output up to 5.6A current. All the micro step and output current are done via DIP switches. Therefore, the DM556T are ideal choices for applications requiring simple step & direction control of NEMA 23, 24 and 34 stepper motors.

Key Features

Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
Step & direction (PUL/DIR) control
Multi-Stepping for smooth motor movement
TTL compatible and optically isolated inputs to 5.6A
Input voltage 20-50VDC
16 selectable micro-step resolutions of 400-25,600 via DIP switches
8 selectable output current settings of 1.8A to 5.6A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Protections for overvoltage and overcurrent

Electrical Specifications:

Output Peak Current: 1.8~5.6A (4.0 RMS)
Input Voltage: +20~50VDC (Typical 24-48VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Operating Environment and other Specifications(Tj = 25℃/77℉):
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ - 65℃
Humidity: 40%RH-90%RH
Operating Temperature: 0℃ - 50℃
Vibration: 10-50Hz / 0.15mm
Storage Temperature: -20℃ - 65℃
Weight: Approx.300g (10.6oz)
