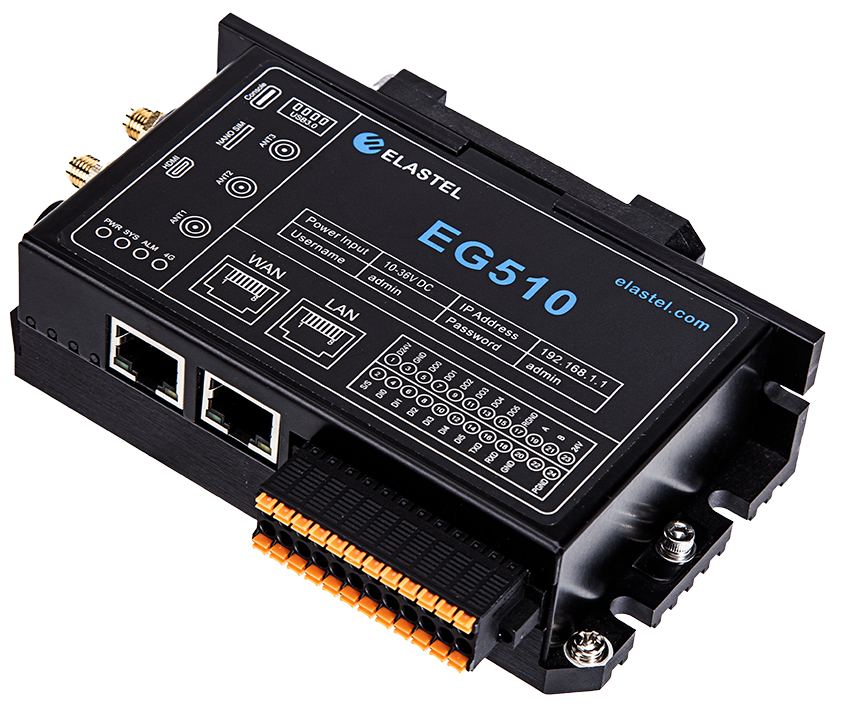

EG510 Edge Computer, Industrial Raspberry Pi CM5 Edge Gateway, DI, DO, AI, Ethernet, RS485, RS232

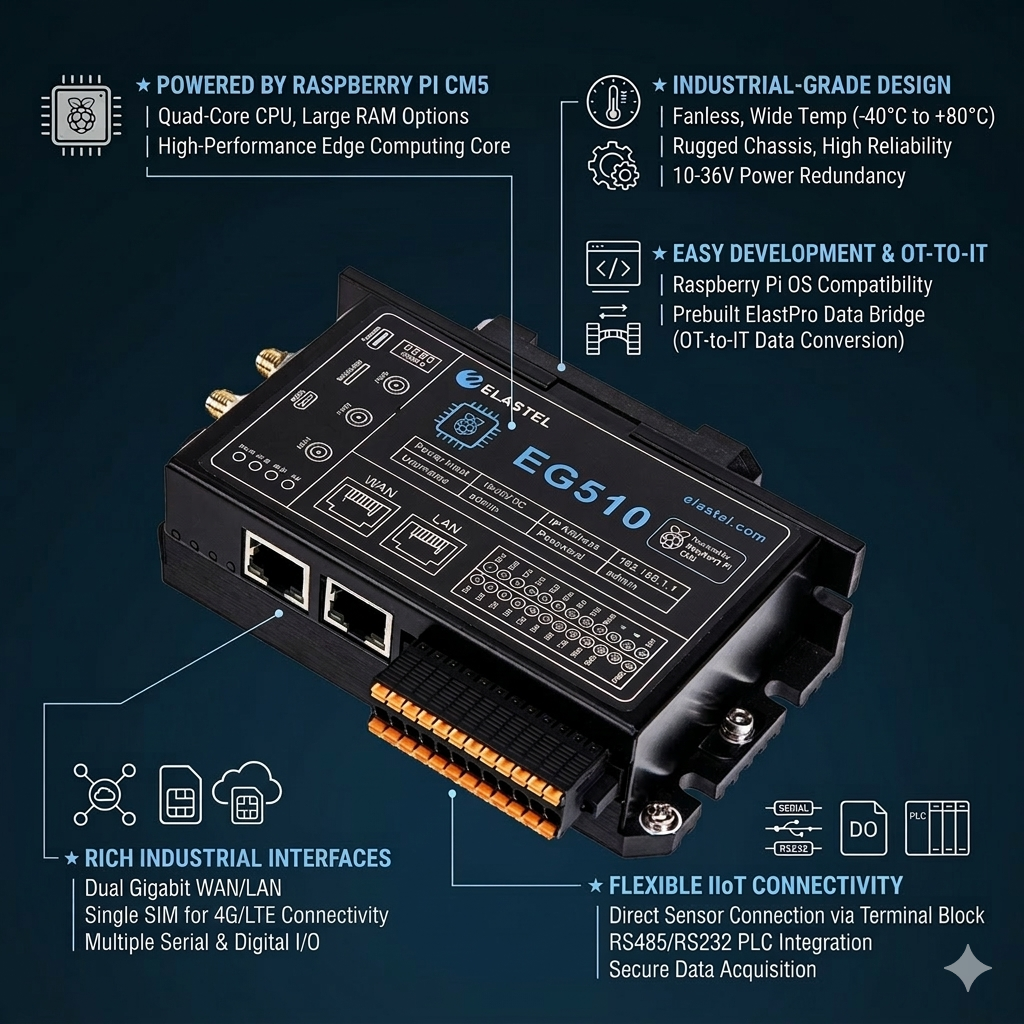

Elastel EG510 is a high-performance industrial edge computer powered by Raspberry Pi CM5, designed for advanced IIoT applications such as edge computing, automation control, data logging, and cloud communication. It provides rich industrial connectivity including 1x RS485, 1x RS232, 2x GbE, 6×DI, 6×DO, 1×USB 3.0 and other expansion interfaces. Also features a built-in M.2 slot supporting 4G LTE / 3G/ 2G/ NB-IoT, enabling seamless connection to industrial networks and field devices. Built with an industrial-grade, fanless, and compact enclosure, EG510 ensures reliable operation in harsh environments with a -25°C to +65°C operating temperature range, along with enhanced EMI and surge protection.
Fully compatible with Raspberry Pi OS, EG510 provides an open, flexible platform for rapid development with Docker, Node-RED, Python, CODESYS, and more. It comes pre-installed with ElastPro OT-to-IT software, enabling seamless data acquisition and secure cloud connectivity via protocols such as Modbus, BACnet, OPC UA, and MQTT
Specifications
| CPU |
Raspberry Pi CM5, Quad-core A76 (ARM v8) @ 2.4 GHz |
| RAM |
4GB (2GB/4GB/8GB/16GB options) SDRAM |
| FLASH |
32GB (16GB/32GB/64GB options) eMMC |
| Ethernet Port |
2x Gigabit Ethernet (1-WAN 1-LAN Configurable) |
| Wi-Fi |
Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
| Cellular/LoRaWAN |

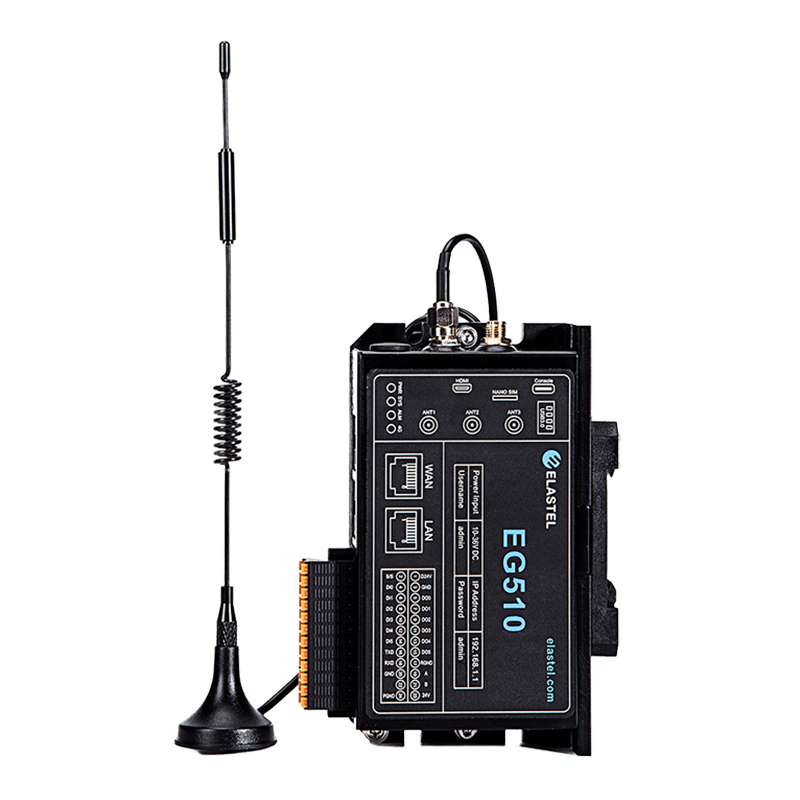

1x M.2 slot for 4G LTE/3G/2G/NB-IoT/CAT-M1 cellular or LoRaWAN module |
| Antenna Connector |
3x SMA Female connectors reserved for Cellular / Wi-Fi / LoRa / GPS antennas |
| Serial Port (Isolated) |
1x RS-232, 1x RS-485 |
| I/O |
6-channel digital input DI
6-channel digital/pulse output DO |
| USB Port |
1x USB 3.0 |
| HDMI |
1x Micro HDMI 2.0a (Up to 4kp60 video & audio output) |
| Console Port |
1x USB-C for debug Console |
| SIM Solt |
1x Nano SIM |
| Power Supply |
10~36V DC, recommended 24V/1A |
| Real-time clock (RTC) |
Embedded RTC |
| Enclosure |
Full Aluminum, IP30, DIN-rail |

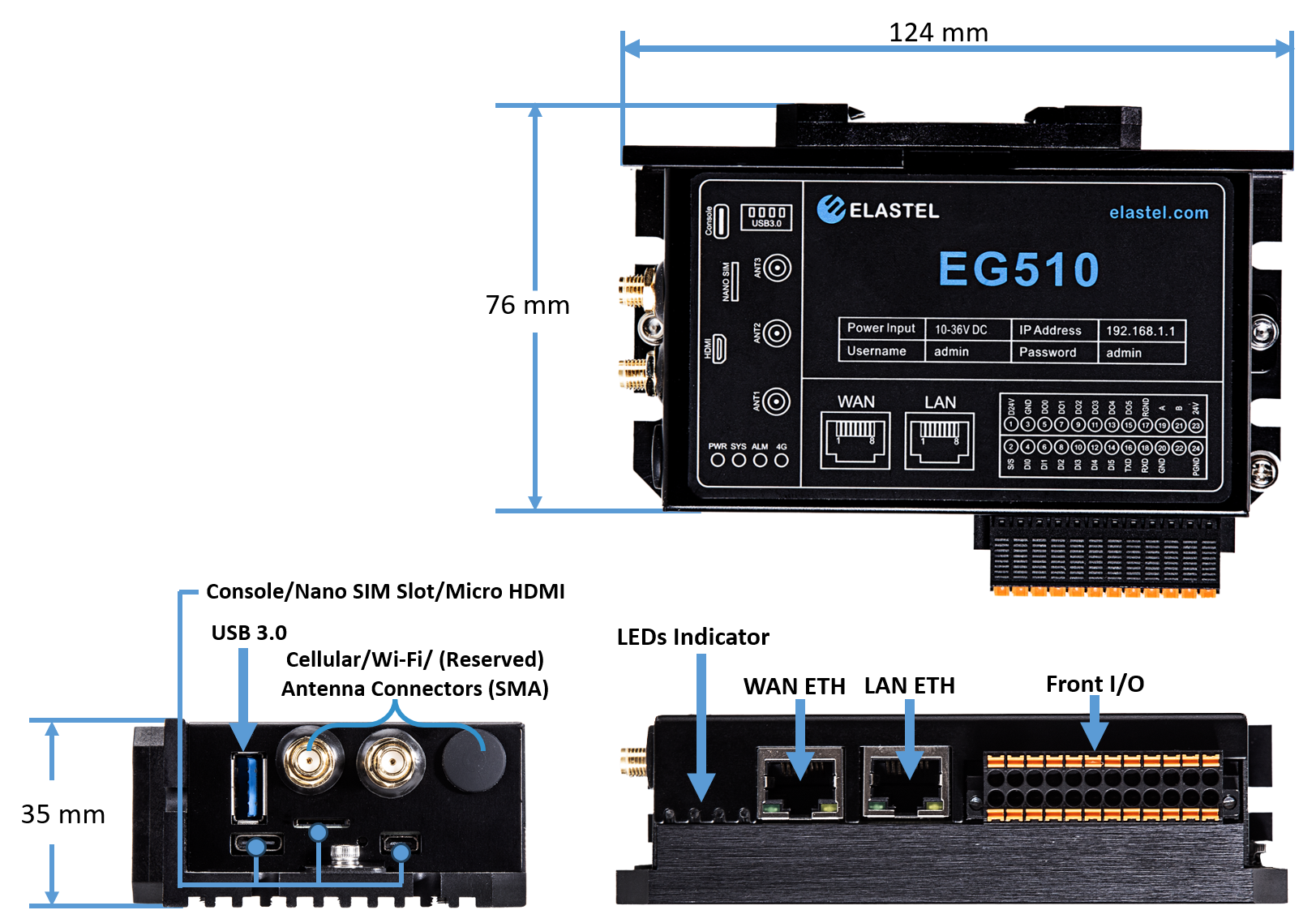

| Dimension (LxWxH) |
124mm x 76mm x 35mm |
| Weight |
315g (0.69 lb) |
| Operating Temperature |
-25 ~ 65°C (industrial grade) |
| Watchdog |
Standalone Hardware Watchdog |
| Pre-installed OS |
Raspberry Pi OS |
| OT-to-IT Data Collect and Convert |
Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP,
IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols,
MQTT, Sparkplug B… |
| Secondary Development |
Docker, Node-Red, Codesys, Ignition,
Python, C, C++, C#, Go, Java, JavaScript. |
Applications
With the Raspberry Pi CM5’s high-performance computing capability and flexible Linux Operating System, EG510 can be applied to any of your applications and PoCs.
Edge computing Gateway: Data is collected from slave devices, analyzed, and stored. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
Industrial modem and cellular Router:Â With a built-in cellular module, EG510 can be configured as an industrial computer operating in 4G/LTE, 3G, and NB-IoT mobile networks. Easily remote access by building a VPN or ThingsWing.
Programmable Logic Controller (PLC): With Serial ports and DI & DO ports available, and with Software-defined PLC support, EG410 can easily operate as a typical PLC.
Micro Server Computer: The compact, high-reliability design with an HDMI port enables the EG410 to operate as a micro server. Raspberry Pi compatibility and Linux OS enable computer operation.
