Feasycom FSC-BP104DL EFR32BG21 Bluetooth 5.2 Low Energy Waterproof IP67 Ultra Long Range BLE Beacon

$14.17

FeasyBeacon FSC-BP104DL is an ultra-long- range waterproof IP67 Bluetooth 5.2 low-power smart beacon, which supports iBeacon, Eddystone(such as URL, UID, TLM), AltBeacon to broadcast and provide Advertising Capability Up to 10 advertising frame slots.



With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).



[FSC-BP104DL Datasheet]

———————————————————————————————————————————————————-

Important Shipping Information

1. Orders placed through OZ Robotics will be shipped via DHL or FedEx, depending on carrier availability at the destination.
2. Please provide your company name when placing your order.
3. The buyer/consignee is responsible for cooperating with customs clearance and providing any required documentation upon the shipment’s arrival.
4. Shipping availability will be confirmed based on the destination ZIP/postal code. Additional charges may apply for remote areas. If such charges are not accepted, we reserve the right to decline the order.

HTS Classification: 8517691099

Ships From: China

Brand: Feasycom SKU: FSC-BP104DL Categories: , , Tags: , , , , , , Minimum order: 1 units

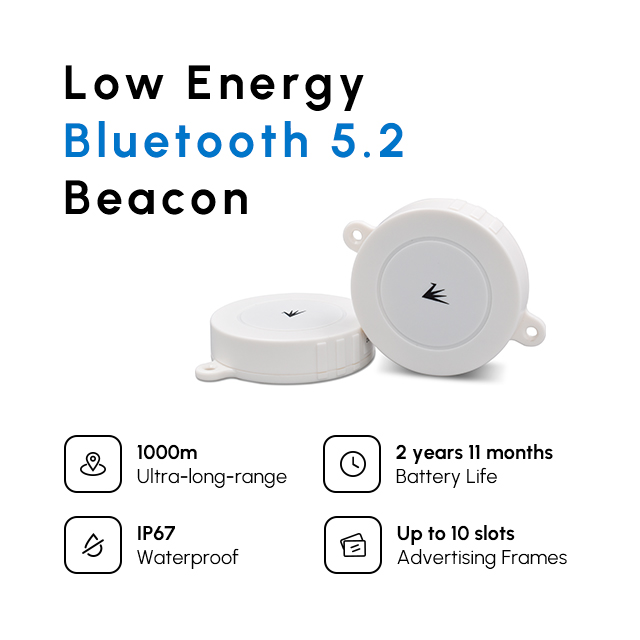

FSC-BP104DL Waterproof IP67 Ultra Long Range Beacon





Features

        • Ultra Long Range Bluetooth® 5.2 Low Energy portable smart beacon. Integrated Silicon Labs EFR32BG21 chipset.
        • Advertising range up to 1000m in open area
          • Waterproof: IP67
              • General:

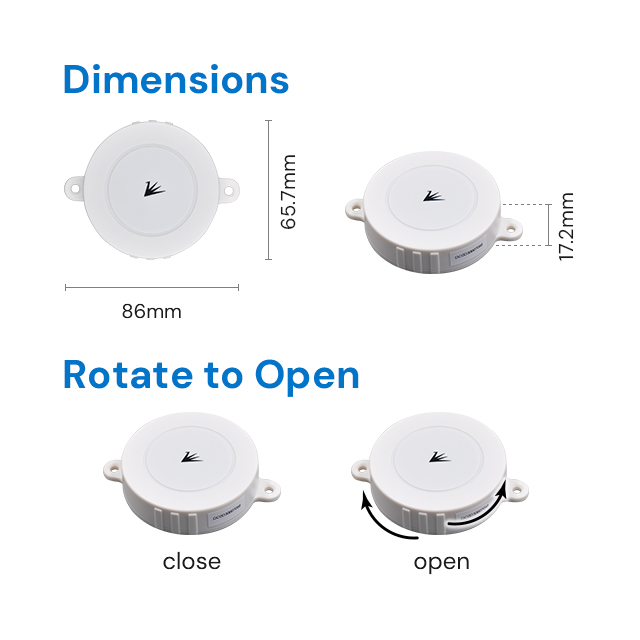

                • 86mm × 65.7mm × 17.2mm circular design with ears
                • Support installing 2x AAA (LR03) batteries
                • Pre-programmed with standard beacon firmware
                • Up to 10 slots of Advertising Frames
                • 2 Years 11 Months Battery Life @ ADV Interval = 1300 ms; TX Power = 0 dBm
                • Supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon
                • Configurable by Free FeasyBeacon Mobile App and SDK
                • Customizable Color, Logo, Hardware, Software
                • Support the OTA upgrade



Specifications
Chipset
Silicon Labs EFR32BG21
Bluetooth Version
Bluetooth 5.2
TX Power
Up to 20 dBm
Antenna
F-shape PCB antenna
Power Supply
2 * AAA (Duracell LR03 Battery), battery is not included in the package
Battery Life

Up to 2 years 11 months

(ADV Interval = 1300 ms; TX Power = 0 dBm, Battery Capacity = 1200 mAh)
Material
ABS plastic
Size
86 * 65.7 * 17.2 mm
Net Weight
27.9 g (without battery)
Protection
IP67
Operating temperature
-20°C to +54°C (Duracell)
* All battery information depends on the usage environment and many other factors, actual results may vary. The battery validity period is usually 2 years 11 months.



Functions
Advertising Format
Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon
Configuring Method
FeasyBeacon SDK compiled app (e.g. FeasyBeacon app)
Advertising Interval
Default 1300 ms, range from 100 ms to 10000 ms
Security
Access password required, Default Pin Code 000000
Max Number of Broadcast
10 Slots configurable advertising frames
Default Broadcast Interval
1300 ms for iBeacon & Eddystone
System Compatibility
iOS 10.0+, Android 7.0+
Advertising Distance
Up to 1000m (open area)
Firmware Upgrading
OTA (upgrade firmware over the air)
