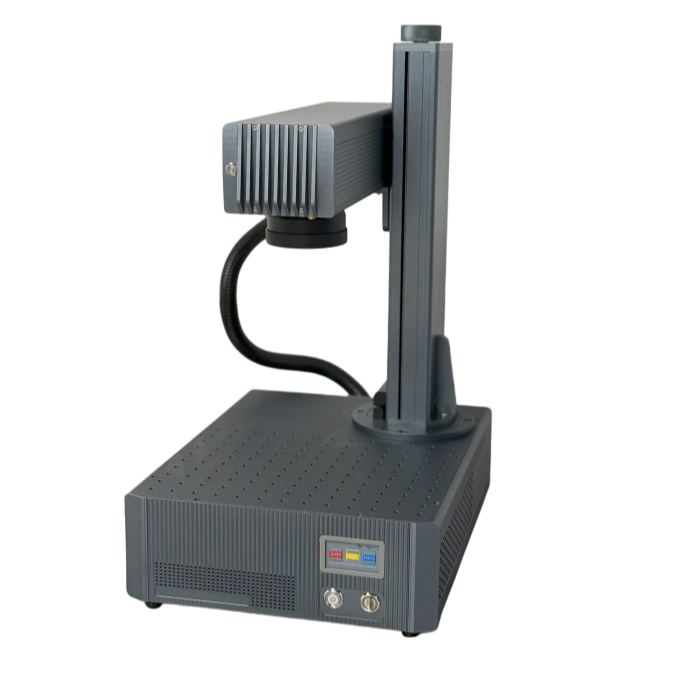

Fiber Laser Deep Engraver and Relief Metal Marking Machine HeatSign HS-FL35D 35W 2.5D
True 2.5D Deep Relief: Stop Selling Prints, Start Selling Depth: Anyone can burn a basic, flat logo onto metal. To truly stand out in the custom gear and industrial marking world, you need tactile, high-definition 3D relief that collectors and B2B clients are willing to pay a premium for. The HeatSign HS-FLD series bridges the gap between affordable desktop setups and complex CNC machining. It physically ablates metal with microscopic precision, delivering ultra-sharp vertical profiles and perfectly flat pocket bottoms—completely eliminating the ugly “stair-step” effect and heat distortion common in lower-tier 2D lasers.
Key Benefits and Engineering Highlights
- Zero 3D Modeling Skills Required: Skip the steep learning curve of complex CAD software like ZBrush. The bundled EzCad2 software + LaserEmboss 2.5D plugin instantly translates standard 2D grayscale images (where gray shading represents physical depth) into multi-layer 3D carving paths. If you can upload a photo, you can carve in 3D.
- Motorized Z-Axis & One-Touch Autofocus: Achieve flawless depth control hands-free. As the laser carves deeper into the metal, the high-precision motorized column automatically steps downward using advanced 2.5D slicing algorithms, keeping the beam perfectly focused on every layer.
- Massive 1.5mJ Piercing Power: While standard 30W lasers max out at 0.6–0.8mJ single-pulse energy, the HS-FL35D utilizes a customized multi-pump laser engine delivering a massive 1.5mJ energy pulse. This violently vaporizes hard metals without heat accumulation, preventing yellowing, burning, or warping.
- Industrial Specs, Desktop Footprint: Packed into an open-frame design that accommodates oversized workpieces, it delivers marking speeds up to 5,000 mm/s and a theoretical laser lifespan of over 100,000 hours.
High-Margin Application Masterclass
- Custom EDC & Premium Knives: Add aggressive 3D textures, grip patterns, and deep-art motifs onto Titanium, Damascus steel, and hard stainless handles with zero tool wear.
- 3D Challenge Coins & Tokens: Carve pronounced drop depths and microscopic details into vintage brass, copper, and silver blanks (processes a 30mm brass coin to a depth of 0.5mm in just 15-25 minutes).
- Custom Zippos & Gear: Transform standard $20 blank armor lighters into $150+ highly tactile collector’s masterpieces.
- Industrial Molds & Steel Dies: Fabricate high-precision metal stamps, embossing dies, and pressing tools that survive decades of heavy-duty industrial usage.
Technical Specifications
| Feature / Specification |
Technical Data (HS-FL35D / HS-FL60D) |
| Product Model |
HS-FL35D (35W) / HS-FL60D (60W Upgrade) |
| Laser Source & Wavelength |
Fiber Laser, 1064 nm |
| Single-Pulse Energy |
Customized 1.5mJ High-Peak Power |
| Focus Adjustment |
One-Touch High-Precision Autofocus |
| Z-Axis Tracking |
Motorized Auto-Tracking Column via Software |
| Standard Engraving Area |
110mm x 110mm (Optimized for Deep Relief) |
| Optional Expansion Lenses |
150mm x 150mm / 200mm x 200mm (60W recommended) |
| Maximum Engraving Speed |
≤ 5,000 mm/s |
| Pulse Frequency Range |
30 kHz ~ 100 kHz |
| Repeatability Accuracy |
± 0.01 mm |
| Minimum Character Size |
0.2 mm |
| Included Software Suite |
EzCad2 + LaserEmboss 2.5D Relief Plugin |
| Supported File Formats |
Grayscale:Â BMP, JPG, PNG |Â Vector:Â DXF, AI, PLT |
| Cooling Method |
Built-in High-Efficiency Air Cooling |
| Power Supply Requirements |
AC 110V or AC 220V (50/60Hz adaptive) |
| Estimated Laser Lifespan |
Up to 100,000 Operational Hours |
Package: Compact plywood case package to keep the delivery safe.
Note: This machine must be connected to the computer when in use.
