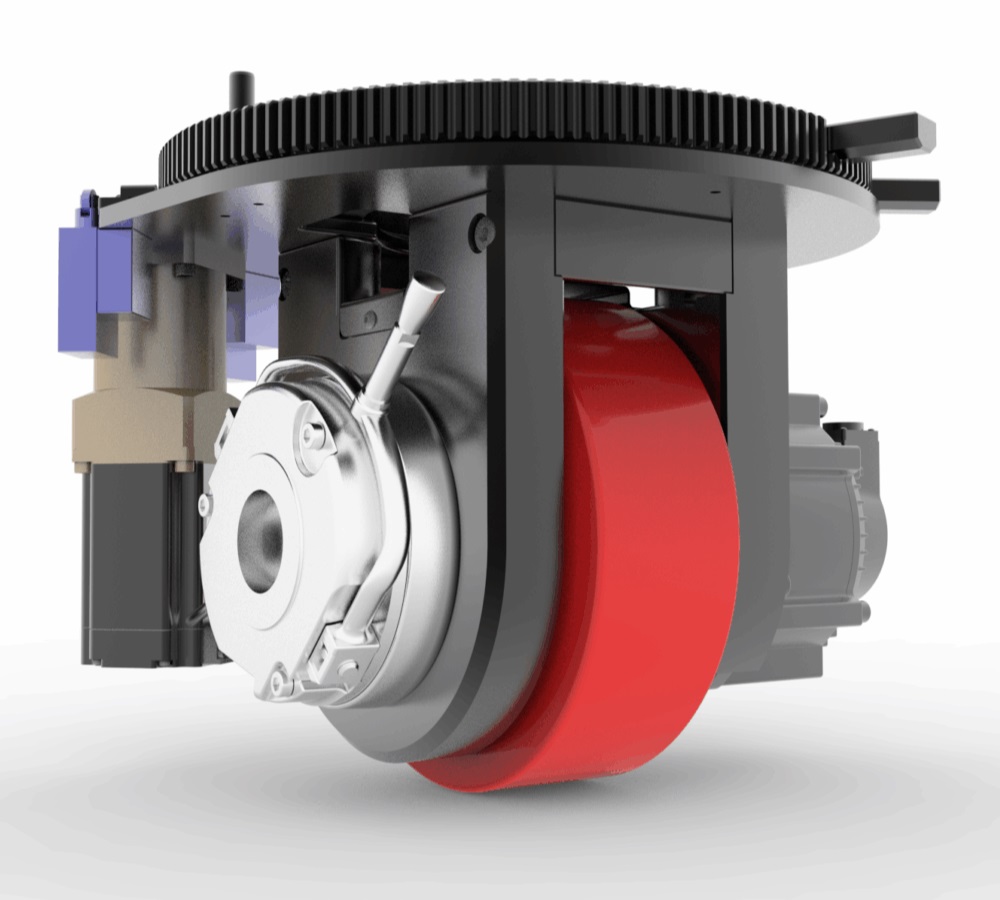

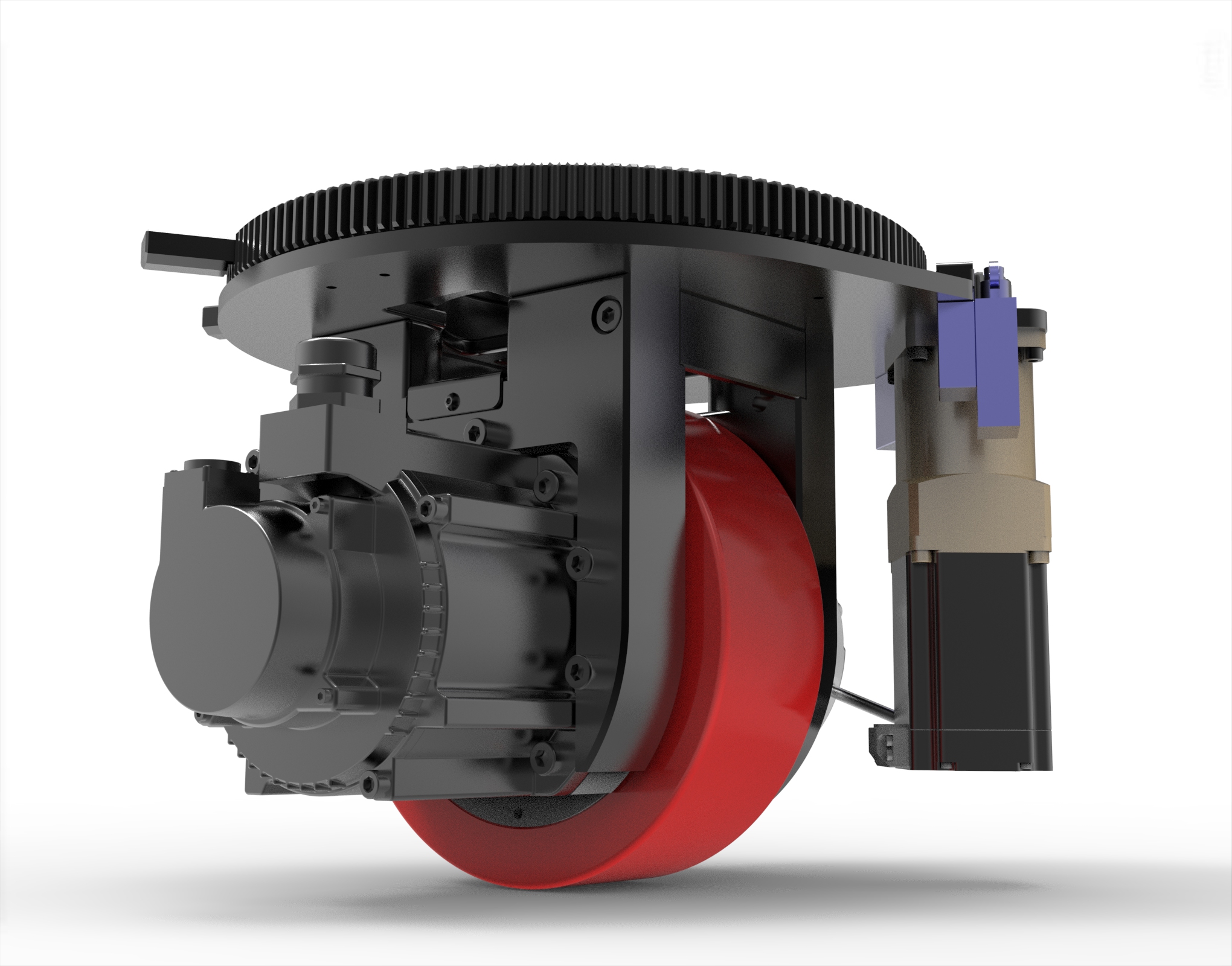

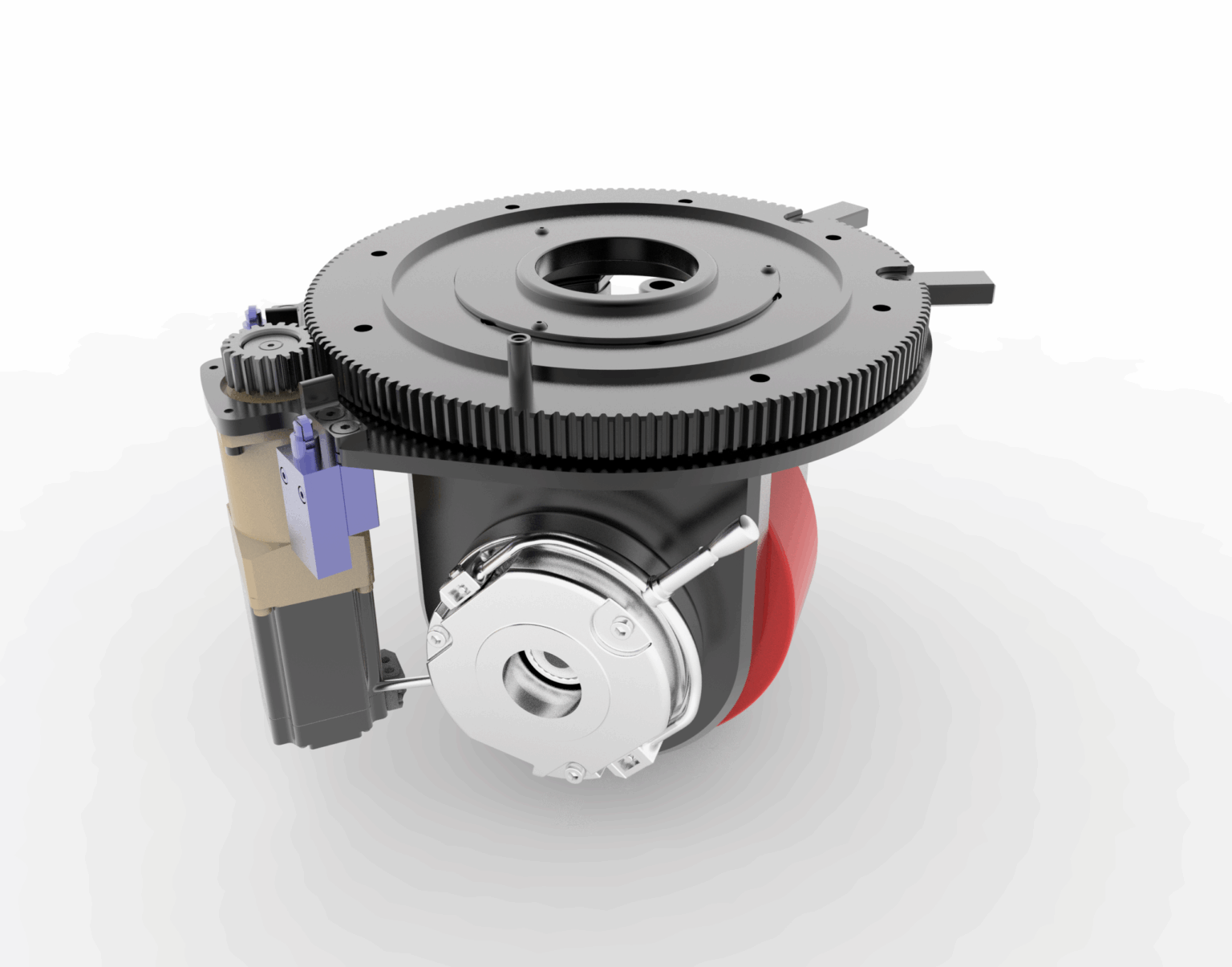

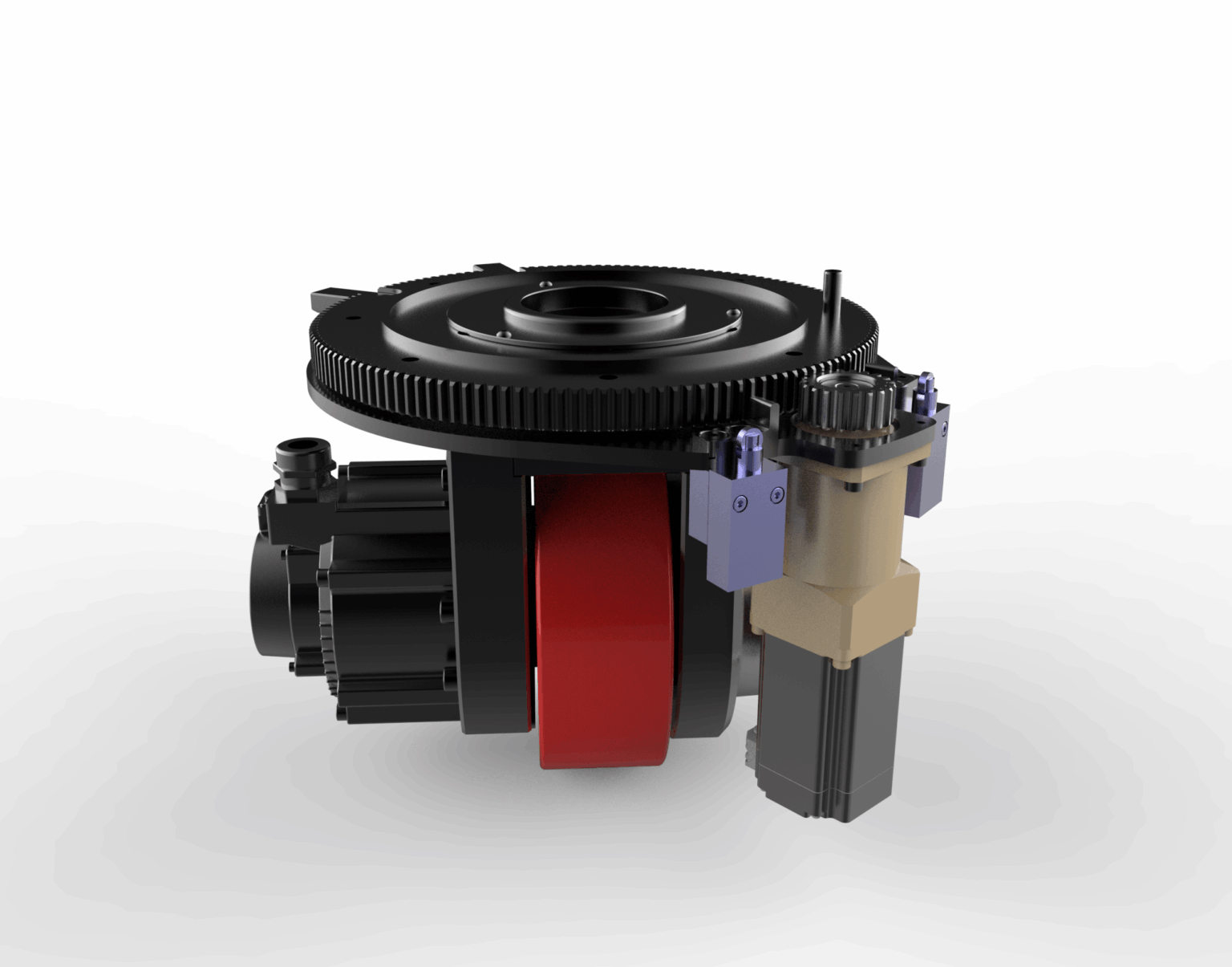

High-Precision AMR Drive System with Planetary Gearbox and Servo Motor

Original price was: $1,380.00.Current price is: $1,200.00.

  • Voltage: 24V-48V
  • Rated Load: 400kg
  • Drive Wheel Diameter: 150mm


Ships From: China

Brand: ZenoDrive
0 Followers Follow
SKU: ZENO-WL150 Categories: , Tags: , ,
VAT Number: 91440300MAELXM3B0G

High-Precision AMR Drive System with Planetary Gearbox and Servo Motor

This drive module features a dual-support structure that ensures even load distribution and improved operational stability. Both the travel and steering systems use multi-stage planetary reducers. Compared to traditional parallel-shaft gearboxes, these reducers offer high precision, low noise, high transmission efficiency, and a service life of up to 20,000 hours, making them suitable for long-term, high-intensity operation.

The module’s compact design makes it particularly suitable for lightweight AMR robots, maintaining high flexibility in confined spaces and enabling easy navigation of narrow aisles and densely packed environments. This solution combines high load capacity with precise motion, making it widely applicable across warehousing and logistics, electronics manufacturing, and medical delivery, helping improve the operational efficiency and reliability of automated systems.

Model

ZENO-WL150(16、21 、24 、28 、32)

Walking System

Steering System

Performance Index

Parameter

Performance Index

Parameter

Motor Rated Power

600W

Motor Rated Power

200W

Motor Rated Torque

1.91N.m

Motor Rated Torque

0.64N.m

Voltage

48V DC

Voltage

48V DC

Motor Rated Current

16.5A

Motor Rated Current

5.7A

Motor Rated Speed

3000r/min

Motor Rated Speed

3000r/min

Speed Ratio

16(21、24、28、32)

Speed Ratio

160

Drive Wheel Diameter

150mm

Max.Turning Speed

112.5°/Sec

Max.Speed

88.3(67.3,58.9,50.5,44.2)m/min

Electron Limit Angle

±126°

Driving Wheel Load

400Kg

Mechanical Limit Angle

±135°

Turning Radius

185mm

/

Brake Torque

6N.m

/

Total Weight

16kg

Specifications are subject to change without prior notice.
The motor type is a low-voltage servo motor, and the power supply voltage can be DC24V
