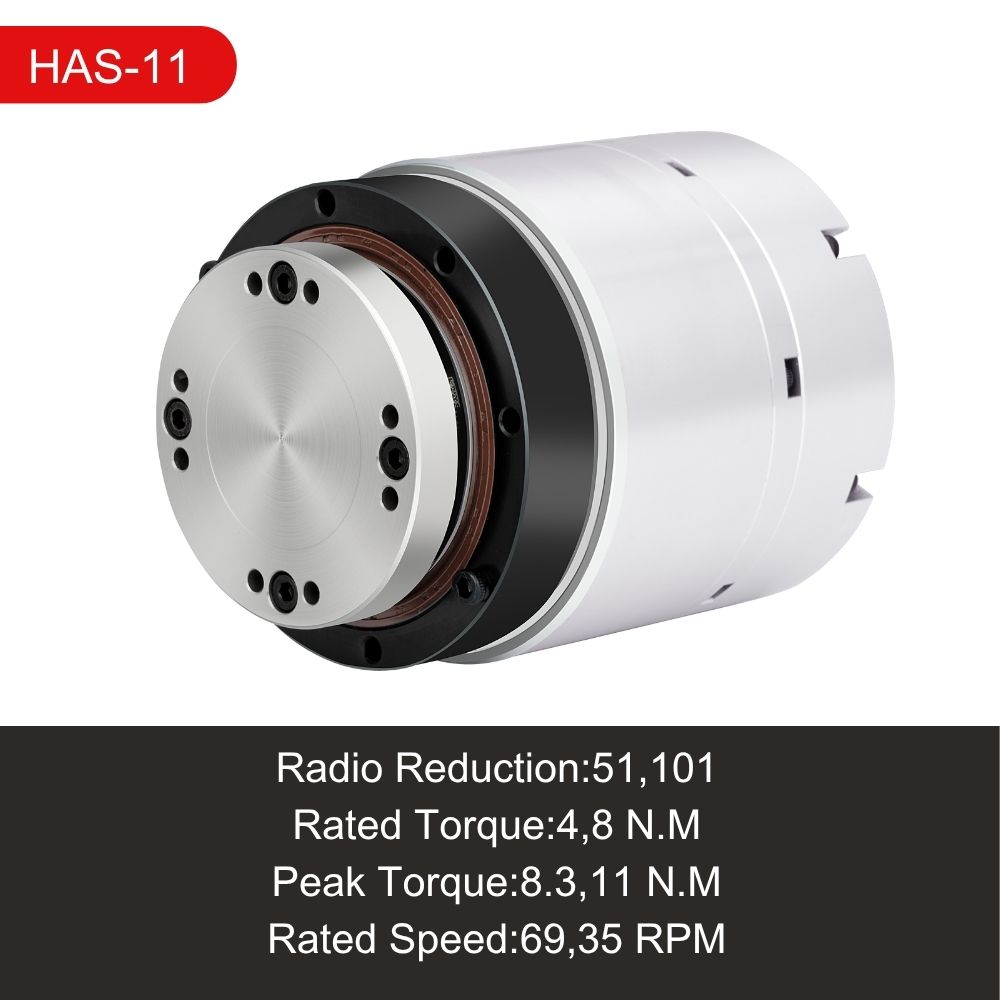

High Torque AC Servo Integrate Frameless Inner Rotor Torque Harmonic Actuator HAS-11
Standard rotary actuators typically integrate a frameless inner-rotor torque motor, a harmonic drive, and an absolute encoder to form a complete rotary actuator unit. The control component (drive unit) typically uses an external configuration to enable high-precision motion control of the connected equipment. These actuators are commonly used in applications requiring high precision and space efficiency, such as machine tool rotary tables, precision medical equipment, 5-axis laser cutting systems, and semiconductor manufacturing equipment.
Features
- High Torque Output: The motor delivers high torque at low speeds to meet equipment load requirements, achieving low-speed/high-torque performance.
- Compact Integrated Design: Frameless torque motors eliminate housings and bearings, embedding directly into the actuator to minimize footprint.
- Precision Control Capability: High-resolution built-in encoders enable micron-level positioning and soft landing functionality, ideal for: Precision rotary tables, Semiconductor die bonding
- Low-Inertia Response: Lightweight rotor and low-friction structural designs enhance dynamic response speed and reduce motion lag.
Specifications
| Product Parameters(AC-220V) |
| Model |
|
11 |
14 |
17 |
20 |
25 |
32 |
40 |
50 |
58 |
| Reduction Ratio |
/ |
51 |
101 |
51 |
81 |
101 |
51 |
81 |
101 |
121 |
51 |
81 |
101 |
121 |
161 |
51 |
81 |
101 |
121 |
161 |
51 |
81 |
101 |
121 |
161 |
51 |
81 |
101 |
121 |
161 |
51 |
101 |
51 |
101 |
| Rated Torque |
N·M |
4 |
8 |
8.6 |
13.5 |
13.5 |
27 |
33 |
49 |
49 |
30 |
48 |
58 |
61 |
61 |
68.5 |
107 |
133 |
133 |
133 |
133 |
206 |
264 |
267 |
267 |
242 |
351 |
460 |
557 |
557 |
642 |
823 |
951 |
1200 |
| Peak Torque |
N·M |
8.3 |
11 |
23 |
29 |
34 |
43 |
53 |
66 |
66 |
69 |
91 |
102 |
108 |
113 |
121 |
169 |
194 |
207 |
217 |
267 |
376 |
411 |
436 |
459 |
497 |
641 |
702 |
762 |
800 |
1163 |
1211 |
1828 |
1964 |
| Rated Speed |
RPM |
69 |
35 |
59 |
37 |
30 |
59 |
37 |
30 |
25 |
59 |
37 |
30 |
25 |
19 |
49 |
31 |
25 |
21 |
16 |
45 |
28 |
23 |
19 |
14 |
39 |
25 |
20 |
17 |
12 |
27 |
22 |
27 |
22 |
| Max Speed |
RPM |
102 |
51 |
118 |
74 |
59 |
118 |
74 |
59 |
50 |
118 |
74 |
59 |
50 |
37 |
94 |
59 |
48 |
40 |
30 |
90 |
57 |
49 |
38 |
29 |
80 |
51 |
41 |
34 |
25 |
37 |
30 |
37 |
30 |
| Rated Current |
A |
0.98 |
0.99 |
0.78 |
0.77 |
0.62 |
2.36 |
1.82 |
2.17 |
1.81 |
2.63 |
2.65 |
2.56 |
2.25 |
1.69 |
3.90 |
3.84 |
3.83 |
3.20 |
2.40 |
5.82 |
5.68 |
5.83 |
4.93 |
3.7 |
8.72 |
7.97 |
8.37 |
8.46 |
6.36 |
11.94 |
12.27 |
17.68 |
17.89 |
| Max Current |
A |
2.03 |
1.36 |
2.09 |
1.66 |
1.56 |
3.68 |
2.92 |
2.92 |
2.44 |
6.04 |
5.02 |
4.51 |
3.98 |
3.13 |
6.90 |
6.07 |
5.58 |
4.97 |
3.92 |
11.69 |
10.36 |
9.08 |
8.04 |
6.36 |
17.91 |
14.55 |
12.75 |
11.58 |
9.13 |
21.62 |
18.06 |
33.99 |
29.29 |
| Torque Constant |
N·M/Arms |
4.08 |
8.08 |
11.02 |
17.50 |
21.82 |
11.42 |
18.14 |
22.62 |
27.10 |
11.42 |
18.14 |
22.62 |
27.10 |
36.06 |
17.54 |
27.86 |
34.74 |
41.62 |
55.38 |
22.85 |
36.29 |
45.25 |
54.21 |
72.13 |
27.74 |
44.06 |
54.94 |
65.82 |
87.58 |
53.78 |
67.06 |
53.784 |
67.064 |
| Unidirectional Positioning Accuracy |
Arcsec |
≤90 |
≤90 |
≤70 |
≤60 |
≤60 |
≤60 |
≤60 |
≤50 |
≤50 |
≤60 |
≤60 |
≤60 |
≤50 |
≤50 |
≤60 |
≤50 |
≤50 |
≤40 |
≤40 |
≤60 |
≤50 |
≤50 |
≤40 |
≤40 |
≤60 |
≤50 |
≤50 |
≤40 |
≤40 |
≤30 |
≤30 |
≤30 |
≤30 |
| Repeat Positioning Accuracy |
Arcsec |
≤20 |
≤20 |
≤15 |
≤10 |
≤10 |
≤15 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
| Tilt Stiffness |
X104N.m/rad |
4 |
8 |
15 |
24 |
38 |
95 |
175 |
Rated radial load 2750N
Rated axial load 2750N
Rated overturning moment 1950N.M |
Rated radial load 3200N
Rated axial load 3200N
Rated overturning moment 2500N.M |
| Torsional Stiffness |
X104N.m/rad |
0.3 |
0.34 |
0.46 |
0.6 |
1.07 |
1.3 |
1.8 |
2.3 |
3.4 |
4.6 |
7.6 |
9.9 |
14 |
18.6 |
| Motor Phase Resistance |
Ohma(20°C) |
12 |
7.5 |
2.6 |
2.6 |
3.55 |
0.88 |
0.8 |
0.126 |
0.126 |
| Motor Phase Inductance |
Mh |
9.5 |
11.5 |
6.7 |
6.7 |
10 |
6.1 |
8 |
0.65 |
0.65 |
| Back-EMF Constant |
Vrms/Krpm |
10.5 |
25 |
25 |
25 |
40 |
40 |
44 |
52 |
52 |
| Rotor Inertia |
Without brake KG*m2 |
8.32*10^-6 |
3.6*10^-5 |
7.96*10^-5 |
8.8*10^-5 |
2.1*10^-4 |
8.3*10^-4 |
1.64*10^-3 |
4.8*10^-3 |
4.8*10^-3 |
| Rotor Inertia |
With brake KG*m2 |
8.73*10^-6 |
3.7*10^-5 |
9.12*10^-5 |
9.17*10^-5 |
2.2*10^-4 |
1.04*10^-3 |
2.05*10^-3 |
/ |
/ |
| Mass (Without Brake) |
Kg |
1.17 |
1.66 |
2.2 |
2.4 |
3.6 |
7.4 |
10.7 |
25 |
32 |
| Mass (With Brake) |
Kg |
1.36 |
2 |
2.8 |
2.96 |
4.2 |
8.7 |
12 |
/ |
/ |
| Motor Poles |
Pole |
10 |
16 |
16 |
16 |
16 |
16 |
16 |
20 |
20 |
| Diameter & Length (With/Without Brake) |
mm |
63mmX83mm
63mmx99.7mm |
ø74mmX91.5mm
ø74mmX109.5mm |
ø88mmX98mm
ø88mmX122mm |
ø88mmX101mm
ø88mmX125mm |
ø110mmX109mm
ø110mmX130.5mm |
ø142mmX138.7mm
ø142mmX164.2mm |
ø170mmX150.7mm
ø170mmX175.7mm |
ø214mmX196mm |
ø240mmX216mm
ø240mmX249.4mm |
| Hollow Shaft Diameter |
mm |
ø10mm |
ø9mm |
ø13.5mm |
ø16.5mm |
ø17mm |
ø29mm |
ø40mm |
ø40mm |
ø50mm |
| Notes |
For reference only, please contact sales for actual parameters |
