Indoor Positioning System Programmable Long Life BLE Bluetooth Beacon Asset Pallet Tracking

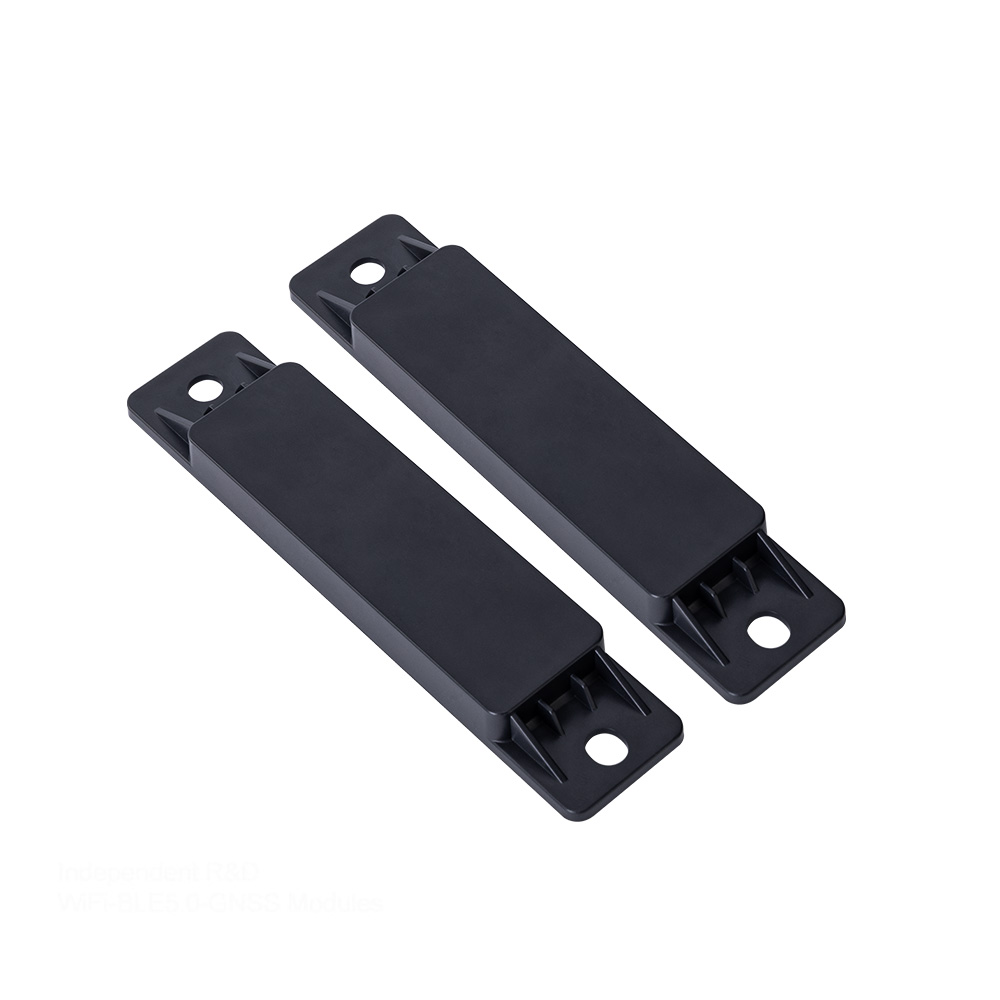

The H8 Pallet Beacon is a rugged Bluetooth® Low Energy 5.4 locator tag that tracks pallets and crates in industrial and warehouse environments. It is engineered for durability and offers reliable real-time asset location and movement visibility. The pallet tracker H8 redefines supply chain visibility with BLE-powered precision and seamless adaptability. Designed for harsh logistics environments, it delivers meter-level location accuracy throughout transit, automatically switching between real-time tracking and energy-saving modes to ensure continuous monitoring without compromising battery life.
Technical Features
- Bluetooth® LE 5.4 with dual support for iBeacon and Eddystone broadcasting
- Powered by a CH592 chip for ultra-low energy consumption; battery life up to 40
- 100 m transmission range (open space)
- IP65-rated waterproof and dustproof, IK08-rated shockproof
- Accidental shutdown protection
- Slim, lightweight ABS enclosure (~19g), designed for easy mounting on pallets via screws or adhesive
- Using HoneyComm Android APP HC Connect with SDK, you can configure parameters (UUID/Major/Minor, device name, advertising interval, Tx power, etc.).
Typical Applications
- Warehouse & Manufacturing Logistics
- Enables real-time inventory tracking, streamlines sorting and storage workflows, and reduces manual paperwork
- Cold Chain & Temperature-Controlled Environments
- Operates reliably between –40 °C and +85 °C, suitable for refrigerated/frozen logistics
- Asset Identification & Workflow Automation
- Acts as a unique ID for pallets or machinery, supporting indoor positioning systems and process optimization
- Smart Warehouse & Visual Management
- Facilitates digital asset visibility, transforms manual logistics processes into visualized, data-driven operations
- General Indoor/Outdoor Asset Tracking
- Ideal for use wherever IP65/IK08 protection and extended battery life are needed.
Specifications
Basic specifications | |
Product number | H8 with ears and screws |
Product size
(diameter*height) |
116*25.1*9.1mm |
Product weight | H8 with 3M glue and screws, 25g |
Shell material/color | ABS/Black |
waterproof level | IP68 |
Installation method | 3M adhesive and screw installation |
battery model | 2pcs*Button lithium manganese battery CR2032 |
battery voltage | 3.0V |
battery capacity | 440mAh |
Can the battery be
replaced? |
Can |
Whether to support OTA | Support (firmware selects connectable type) |
Configure APP | HC Connect |
Technical specifications | |
Bluetooth version | BLE5.4 |
Broadcast data format | iBeacon or customized according to customer needs |
Frequency Range | 2400MHz~2483.5MHz |
Transmit power | -19.5dBm~+2.5dBm (default 0dBm) |
