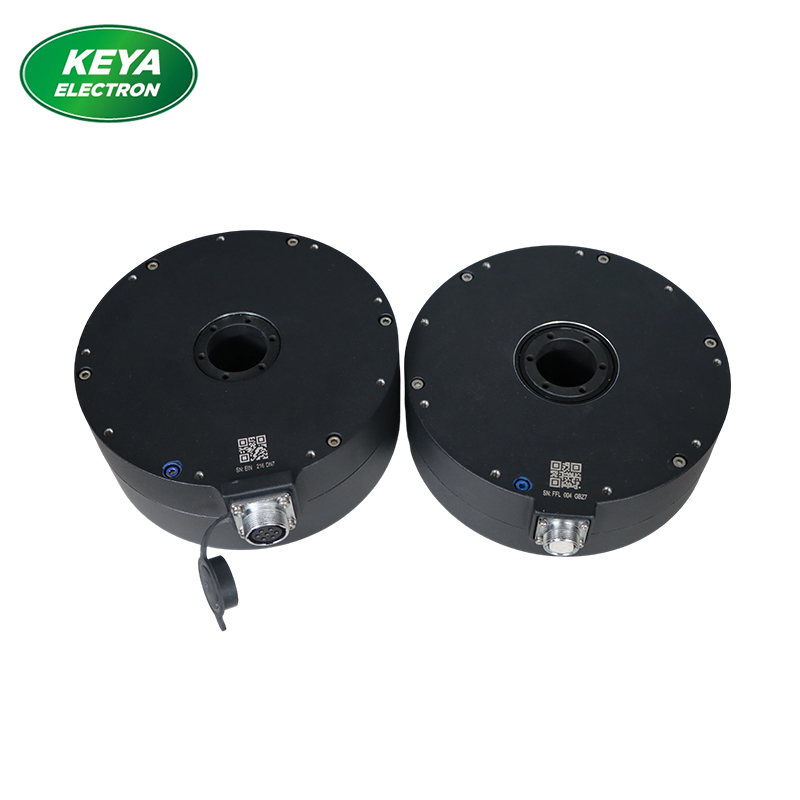

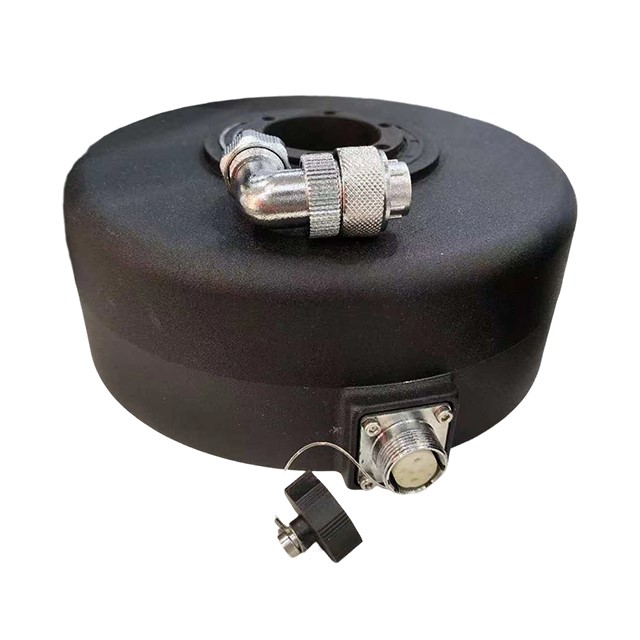

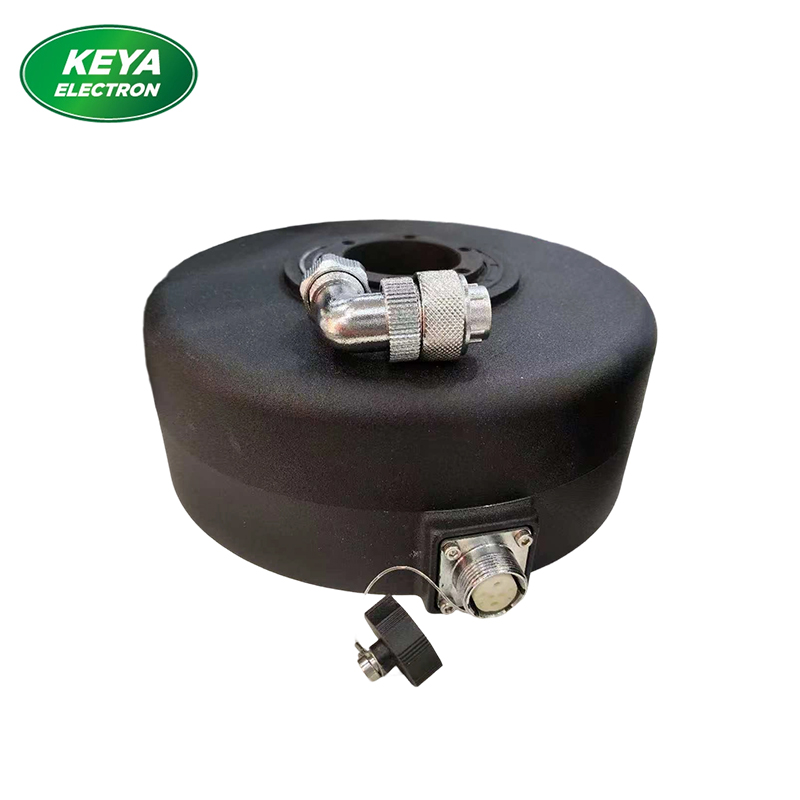

KEYA V4.0 Tractor Autopilot Steering Wheel Motor for AGopen Navigation System
This electric motor adopts a direct-drive motor design. The rated speed is 80rpm or 100rpm, and you can install it directly on the steering wheel shaft. It has a built-in controller, supports CAN control, has a rated voltage of 12V/24V, a rated torque of 7N · m, and a peak torque of 13N · m. It is widely used in electric power steering systems for self-driving robot tractors and for precision agriculture, precision farming, and digital farming.
The development of the direct-drive servo motor for the agricultural machinery steering wheel is mainly based on precision agricultural machinery and unmanned steering wheels. It is an effective way to achieve sustainable agricultural development, with high-quality, high-yield production, low consumption, and environmental protection. It can realize fast, high efficiency, high precision, and automatic operation on a large area of arable land, and can be used for multiple production tasks such as land leveling,
Sowing, harvesting, and pesticide spraying. Production and land-use efficiency have been greatly improved.

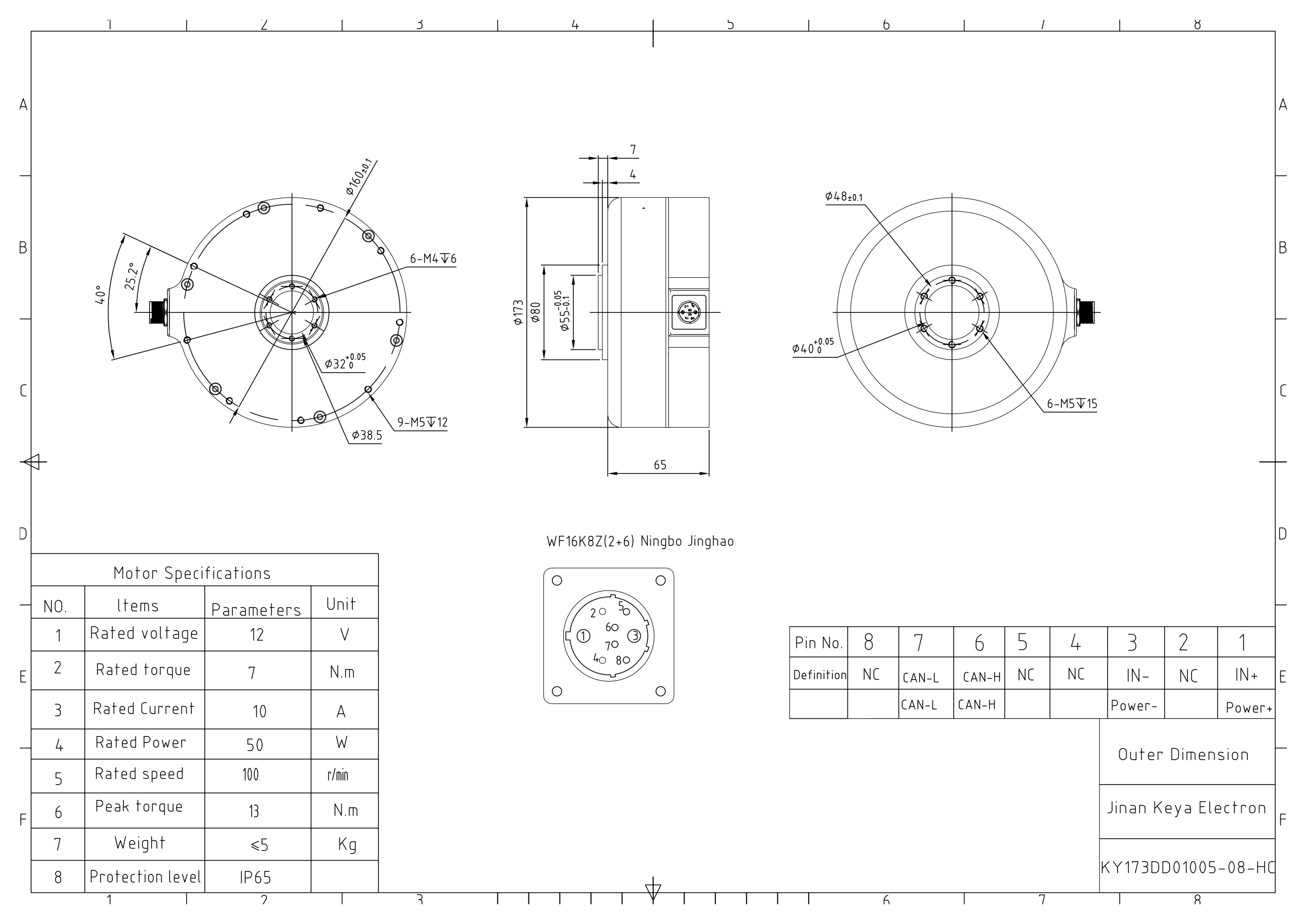

Product Drawing:

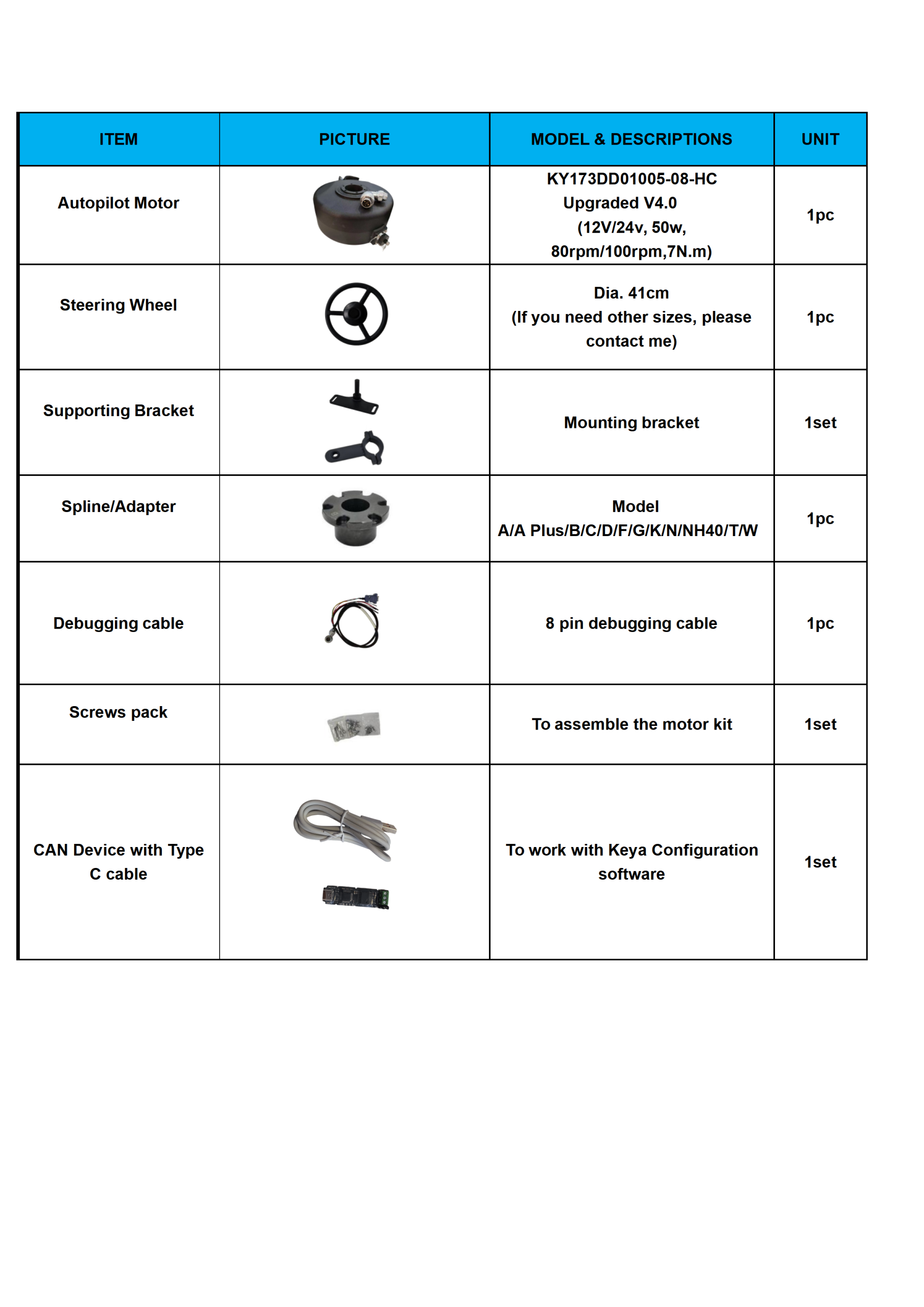

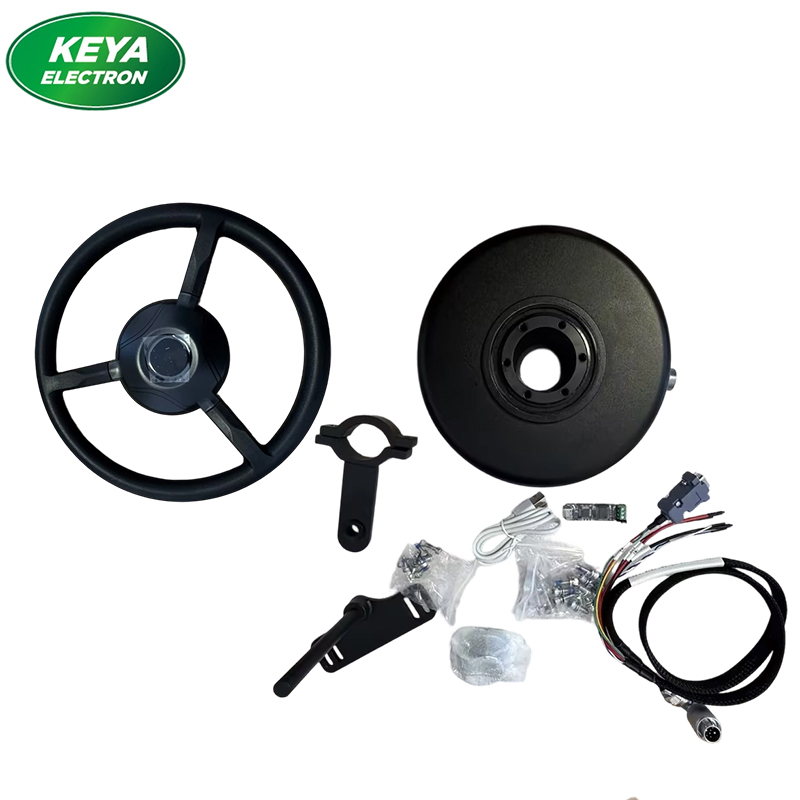

A set containing the following products:

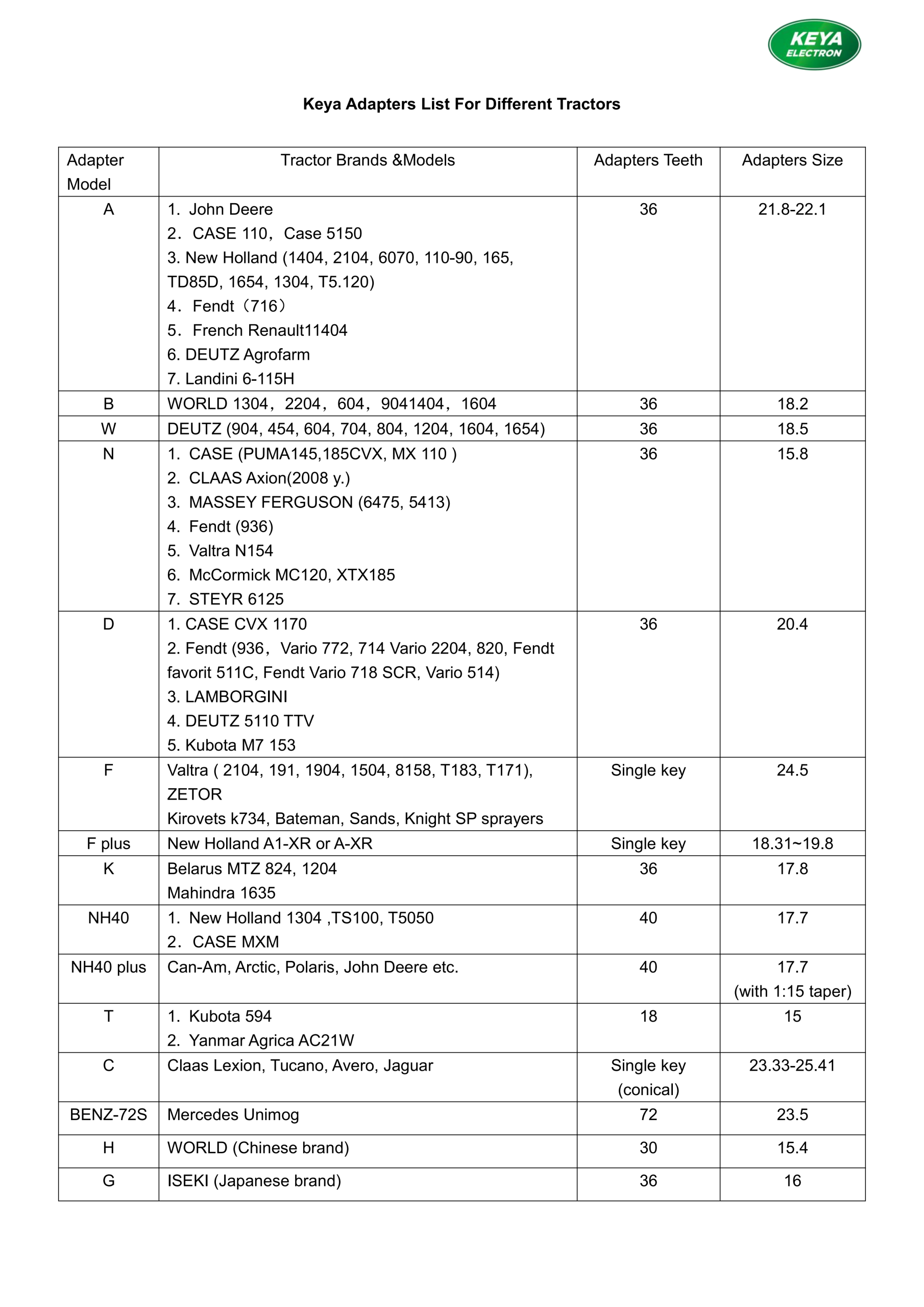

Please select the appropriate adapter based on your tractor shaft’s dimensions and tooth count (please specify this in the order notes). If a suitable option is not available, do not worry, please contact us.
Note: We recommend placing an order for 5 units directly, as shipping costs are calculated based on a quantity of 5—meaning that even if you purchase just 1 unit, you will still be charged the shipping fee for 5 units!
