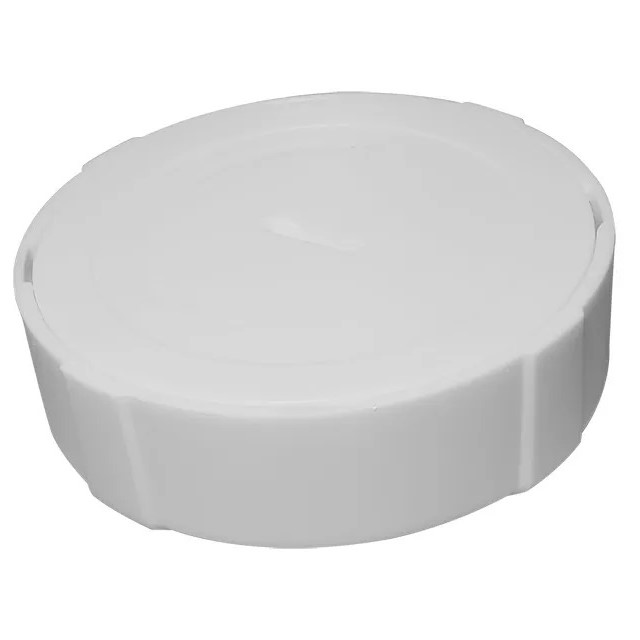

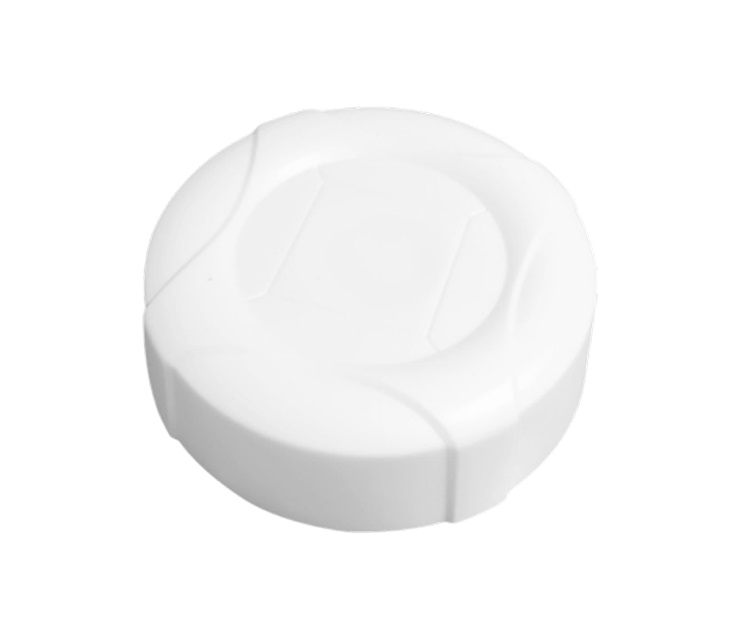

Long Life Asset Tracking Bluetooth 5.1 Locator Beacon iBeacon Device TS-1101L
TS-1101L is a Bluetooth 5.1 positioning beacon with an ultra-long battery life. It adopts an imported Bluetooth chip design and has the remarkable characteristics of ultra-low power consumption, long distance, and low cost.
Model No. | TS-1101L |
Bluetooth Version | Bluetooth 5.1 |
Chipset | Dialog DA145 Series |
TX Power | -19.5 ~ +2.5 dBm, Default +2.5 dBm |
OTA | YES |
Distance | 120m in the open |
Battery | AAA lithium iron battery * 2 (Replaceable) |
Battery Life | 8 Years(+2.5dBm/1s) |
Certification | BQB, FCC, CE, SRRC, RoHS, REACH |
Color | White |
Weight | 35g (including Battery) |
Size | Φ62.2*17.3mm |
OEM | Custom color, Print Logo, OEM Package, Software |
The TS-1101L battery has a capacity of 2200mAh. It uses a pair of AAA lithium-iron batteries and has a 1S broadcast frequency setting. The Battery can be used for 10 years and is easy to replace, greatly reducing maintenance costs.
Bluetooth Version | Bluetooth 5.1 |
Chipset | Dialog DA145 Series |
TX Power | -19.5 ~ +2.5 dBm, Default +2.5 dBm |
OTA | YES |
Distance | 120m in the open |
Battery | AAA lithium iron battery * 2 (Replaceable) |
Battery Life | 8 Years(+2.5dBm/1s) |
Certification | BQB, FCC, CE, SRRC, RoHS, REACH |
Color | White |
Weight | 35g (including Battery) |
Size | Φ62.2*17.3mm |
OEM | Custom color, Print Logo, OEM Package, Software |
TS-1101L can be fixed by glue or screw, and is widely used in indoor positioning, indoor navigation, exhibition navigation, social check-in, advertising push, asset management, item tracking, patrol clock and other solutions.
