ModMi Modular Robot for Research, Learning and Experimentation

$5,429.00

ModMi for Research: Education, Research, and Competitions. Modular, re-configurable, and versatile. Supports multiple programming methods: sensor integration and AI technology. Build your robot systems. Enhance practical skills. We are striving for excellence in robotics.


Made In: China

Brand: Corebingo SKU: ModMi Professional for Research Categories: , , , , , , , Tags: , , , More From:

ModMi Modular Robot for Research, Learning, and Experimentation

ModMi for Research: Education, Research, and Competitions. Modular, re-configurable, and versatile robot. Supports multiple programming methods: sensor integration and AI technology. Build your robot systems. Enhance practical skills. We are strange sugar excellence in robotics.

  • Desktop Size: Max 10 KG with Full Functions, Effortlessly Moved Around and Set Up for Demonstrations
  • Modular Design: Sufficient Modules Options, Each with an Independent Function
  • Re-configurable: Build with Creativity and versatility in Seconds.
  • Open-source and Compatible with Multiple Languages: Provides APIs, Drivers, and Demos for Secondary Development using C/C++, Python, C#, or Java on Windows, Linux, ROS, or External Libraries.
  • Simplified with Full Robotics Basic Functionality: Preload with Various ForRobot including 5-DOF Manipulator, Two-Wheeled Mobile Robot, Biped Walking Robot, Dual-arm Robot, Autonomous Mobile Robot.

Open-source and Compatible with Multiple Languages: Provides APIs, Drivers, and Demos for Secondary Development using C/C++, Python, C#, or Java on Windows, Linux, ROS, or External Libraries.

Simplified with Full Robotics Basic Functionality: Preload with Various Robot Forms including 5-DOF Manipulator, Two-Wheeled Mobile Robot, Biped Walking Robot, Dual-arm Robot, and Autonomous Mobile Robot.

ModMi for Research – Design for Learning and Experimentation through Secondary Development.

Technical Parameters:

l More additional sensors to add on.

Software and Programming Support

Provides APIs, Drivers, and Demos for Secondary Development using C/C++, Python, C#, or Java on Windows, Linux, ROS, or External Libraries.

  • Wireless: supSupportFi connectivity
  • Battery: a Li-ion battery pack for a maximum hour lifetime
  • Dimensions: 470*360*450 mm; Weights:  10.3 kg
  • Warranty: One-Year Limited Warranty
  • EAN: 697585032

What’s included?

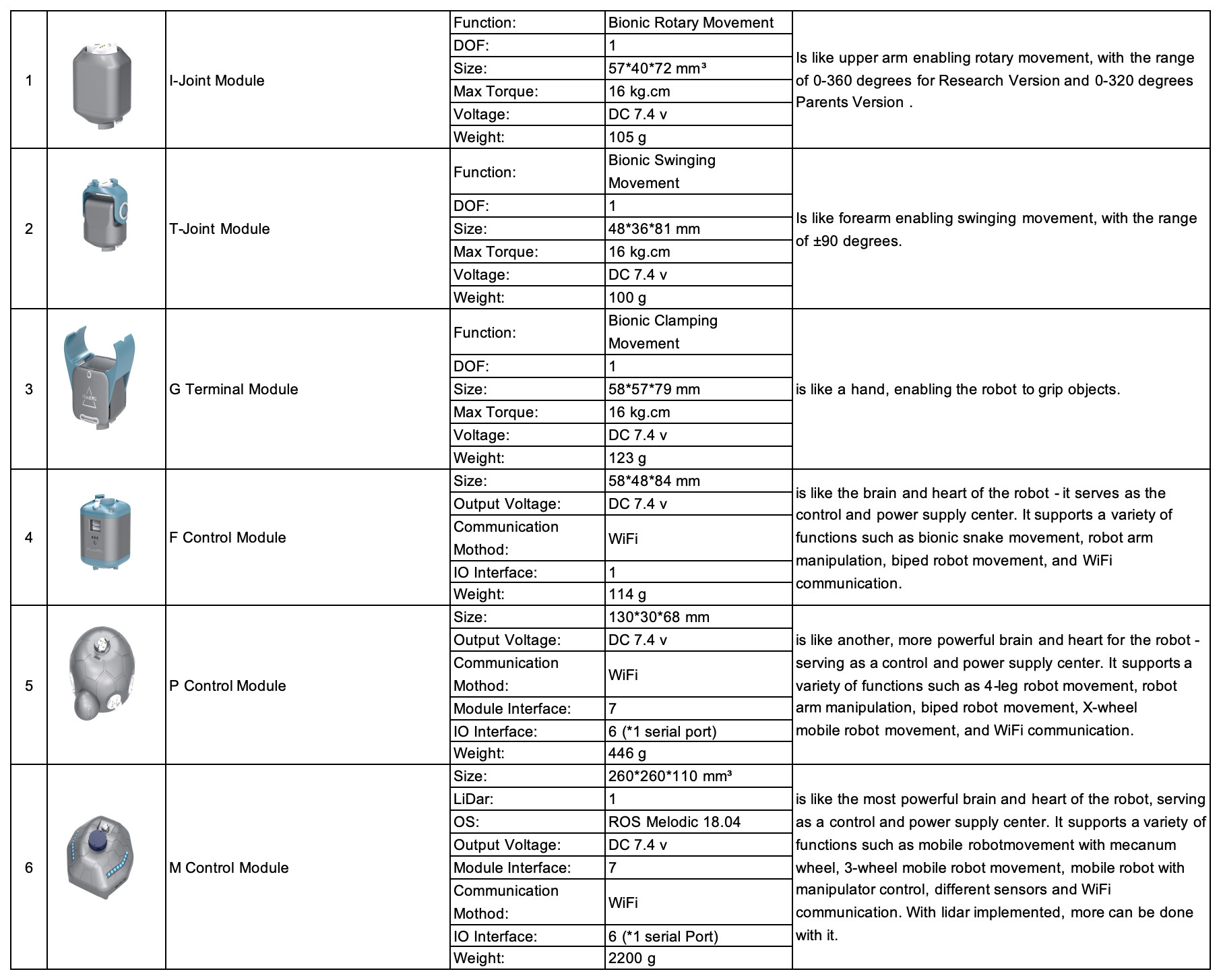

  • 6* I-Joint Module
  • 8* T-Joint Module
  • 2* G Terminal Module
  • 1* F Control Module
  • 1* P Control Module
  • 1* M Control Module

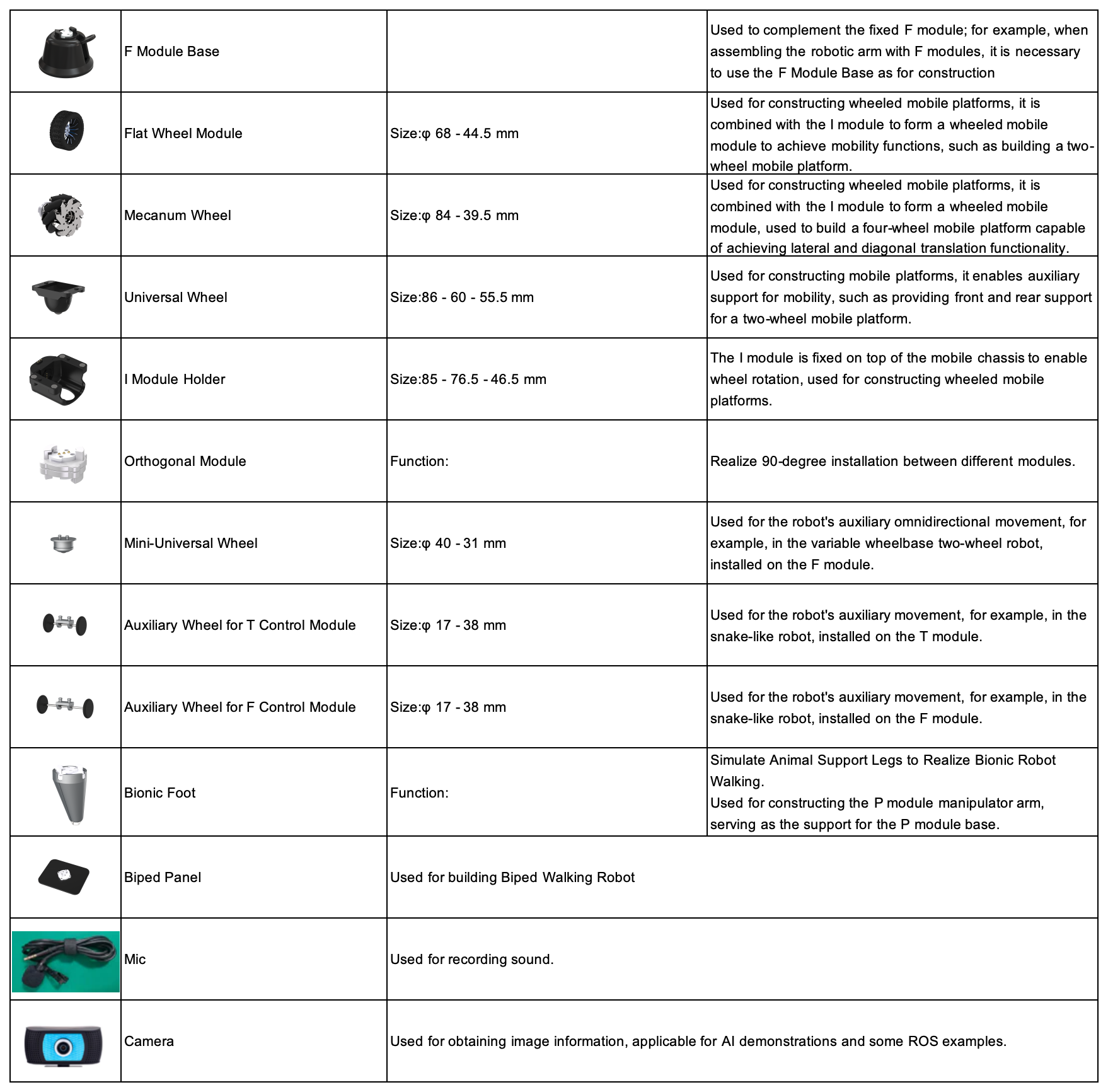

  • 1* F Module Base
  • 4* Flat Wheel Module
  • 4* Mecanum Wheel
  • 2* Universal Ball Joint Module
  • 4* I Module Holder
  • 4* Orthogonal Module
  • 1* Mini-Universal Wheel
  • 8* Snake Wheel for T
  • 1* Snake Wheel for F
  • 4* Bionic Foot
  • 2* Biped Panel
  • 1* Mic
  • 1* Camera

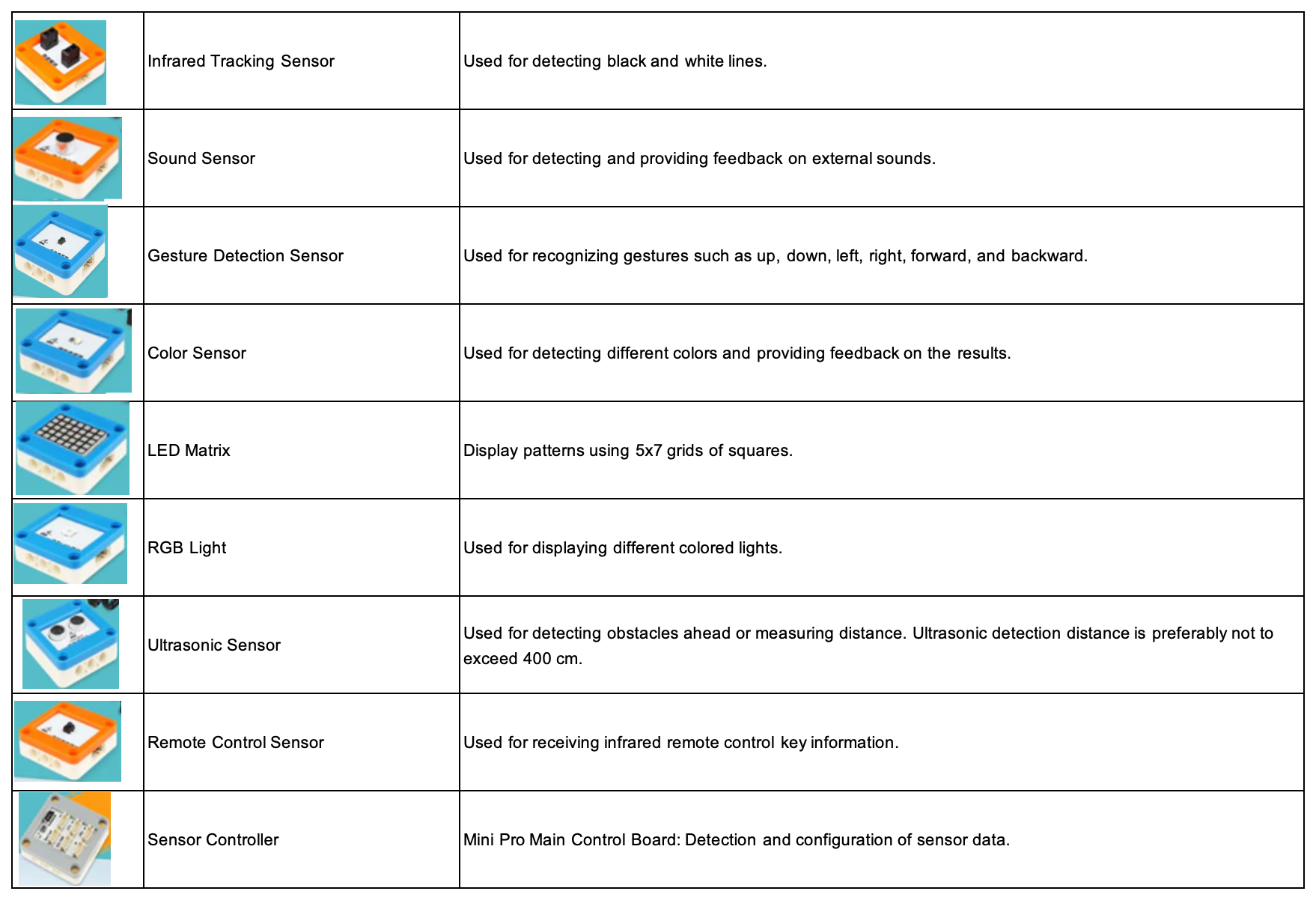

  • 1* Infrared Tracking Sensor
  • 1* Sound Sensor
  • 1* Gesture Detection Sensor
  • 1* Color Sensor
  • 1* LED Matrix
  • 1* RGB Light
  • 1* Ultrasonic Sensor
  • 1* Remote Control Sensor
  • 1* Sensor Controller
  • 1* Sensor Plate (32*16)
  • 1* Sensor Fixing Block
  • 1* Fixing Plate for M
  • 1* Sensor Fixing Plate for P
  • 1* Sensor Controller Fixing Plate for M
  • 1* Camera Fixing Plate (with Modular Buckle Interface)
  • 1* Camera Fixing Sucker
  • 1* F Map
  • 1* Vision Experimental Map
  • 3* Color Block
  • 2* Color Band
  • 1* DC Charger
  • 1* Camera Shelf
  • 1* Acrylic Plate(30-40cm)
  • 1* Wiring for Sensor Controller
  • 6* Wiring for Sensors

Additional information

Color

Blue

Specifications

Weight: 7.3 KG, Dim: 470*360*300mm

Reviews

There are no reviews yet.

Be the first to review “ModMi Modular Robot for Research, Learning and Experimentation”

Product Manuals

If applicable, the Product Documentation, Brochure, Reference Materials, CAD design(s),.STEP file(s) and other drawing files, Manuals, and Tutorials will be available for download upon purchase. In addition, the order confirmation email will include a downloadable link to the product file(s), which can also be downloaded from the My Account section if needed.


ModMi is a modular re-configurable robot coming in two series:

Modmi for Research is a simplified desktop robot with comprehensive basic robotic functionality. It is designed to serve as an educational tool for robotics students and teachers, facilitating the learning of robot control and AI vision courses and enabling the secondary development of advanced robot functionalities through customization. ModMi for Research aims to cultivate exceptional talents in robotics research and application.

ModMi for at Home is an auxiliary tool for programming courses in primary and high schools. It adopts a desktop modular and re-configurable design, enabling users to achieve programming control over robot actions quickly. It provides teach-and-play, graphical programming, and more advanced code programming methods, catering to students of different age groups and levels to quickly and smoothly understand and apply programming logic.
