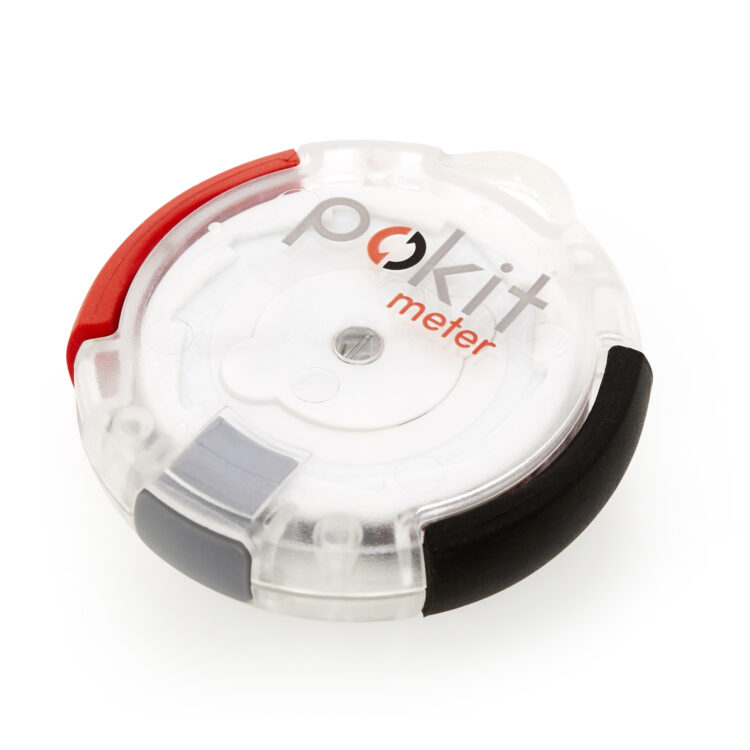

Pokit Meter – All-in-One Multimeter, Oscilloscope, and Logger

$98.00

  • Wireless multimeter: measures AC/DC voltage, AC/DC, resistance, continuity, diode polarity, and ambient temperature.
  • Oscilloscope: captures detailed voltage and current waveforms and provides FFT analysis.
  • Logger: up to 6 months of standalone data-logging
  • Retractable Leads. The app is available for iOS and Android. Pinch and drag to zoom and analyze signals and cursors and add traces to signals. Export your waveforms to CSV.
  • Includes: 1 x pokitMeter 1 x Zip Lock Pouch 2 x Detachable Wire Clips 1 x Battery 2 x 2A Fuses


Ships From: United States (US)

Supplier: Pokit Meter SKU: POK-TRK Categories: , , Tags: , , , , , , , , , More From:

The world’s smallest wireless multimeter, DSO, and logger

Pokit Meter measures, displays, and logs various parameters, including voltage, current, resistance, and temperature, and provides continuity and a diode checker.

  • Wireless Connectivity
  • Highly Portable, it Fits in Your Pocket
  • Ultra-low Power and Long Battery Life
  • Super Handy Retractable Leads

It connects wirelessly via Bluetooth to your smartphone and app and is straightforward. Touch to change modes and settings, and pinch and drag to pan and zoom waveforms. Pokit Meter is ideal for low-voltage electronics, automotive applications, home automation, etc.

Pokit Meter is a revolutionary tool in the measurement industry. Its tiny size means you can put it on a keychain or in your pocket for unprecedented portability. So, free yourself from the bench and take your creativity to new places!

Technical Specs

  • Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%
  • Current: 1mA to 2A max, ±1%
  • Resistance: 1 to 1M Ohm, ±5%
  • Continuity and Diode Polarity Check
  • Sampling: 1M sample/sec at 12bit
  • Logging Period: up to 6 months

Features

  • Dimensions: 1.96” x 0.709” / 50mm x 18mm
  • Weight: 1.06oz / 30g
  • Operating Temperature: 14˚F to 140˚F / -10˚C to 60˚C
  • Lead Span (max. tip-to-tip): 18.9″ / 480mm
  • Battery Type: CR2032

Pokit Meter harnesses the power of your smartphone, transforming it into an excellent measurement tool. The Pokit App measures various parameters, including voltage, current, resistance, and temperature. It also provides continuity and a diode checker.

What’s in the box

  • 1 x Pokit Meter
  • 1 x Zip Lock Pouch
  • 2 x Detachable Wire Clips
  • 1 x CR2032 Battery
  • 2 x 2A Fuses

Pokit Meter harnesses the power of your smartphone, transforming it into an excellent measurement tool. The Pokit App measures various parameters, including voltage, current, resistance, and temperature. It also provides continuity and a diode checker.

1-year warranty

Additional information

Weight 0.2 lbs
Dimensions 7.48 × 3.94 × 1.18 in
Specifications

Battery Type: CR2032, Continuity and Diode Polarity Check, Current: 1mA to 2A max, ±1%, Lead Span (max. tip-to-tip): 18.9” / 480mm, Logging Period: up to 6 months, Operating Temperature: 14˚F to 140˚F / -10˚C to 60˚C, Resistance: 1 to 1M Ohm, ±5%, Sampling: 1M sample/sec at 12bit, Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%
