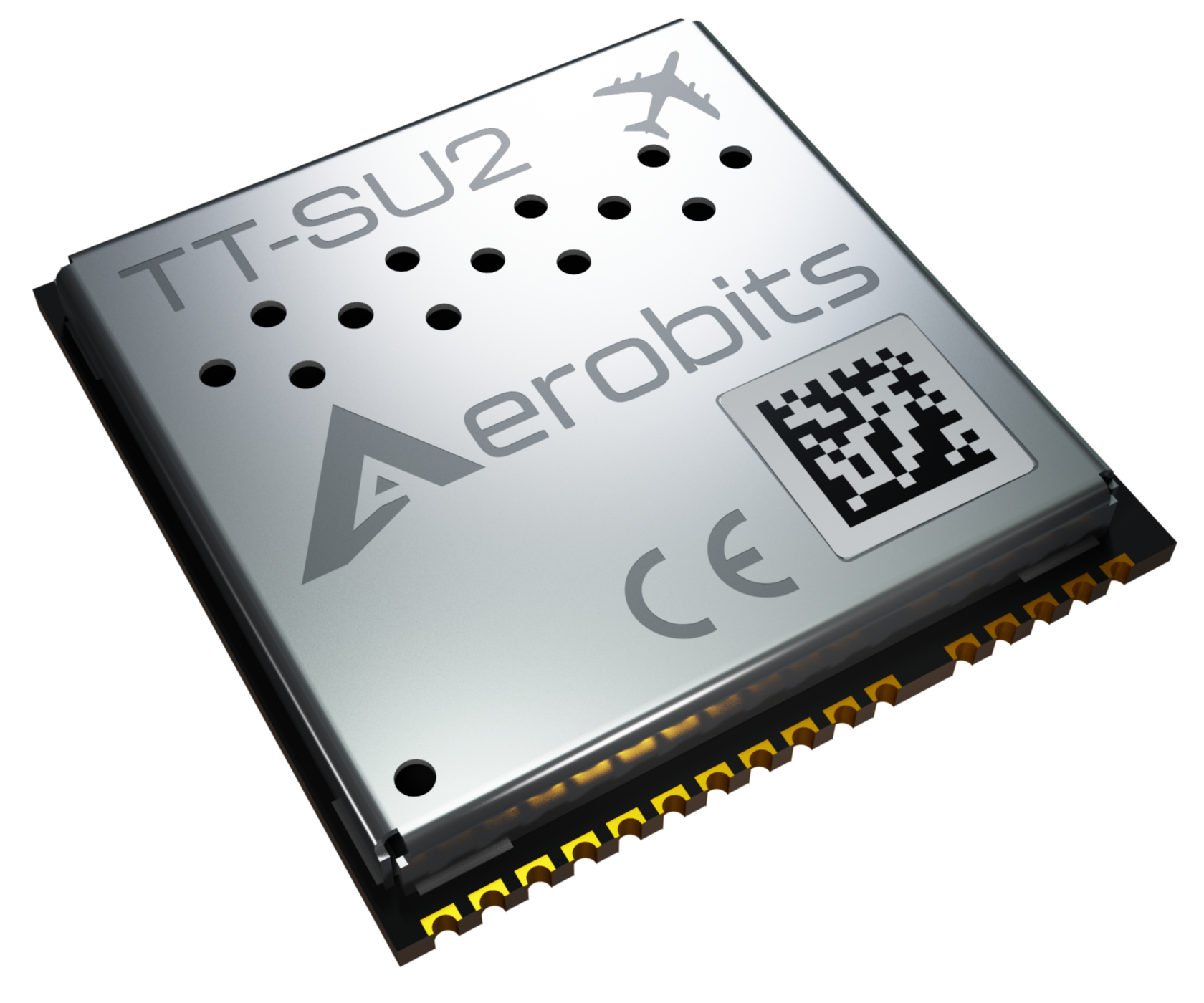

Single Core Processor FPGA OEM Receiver

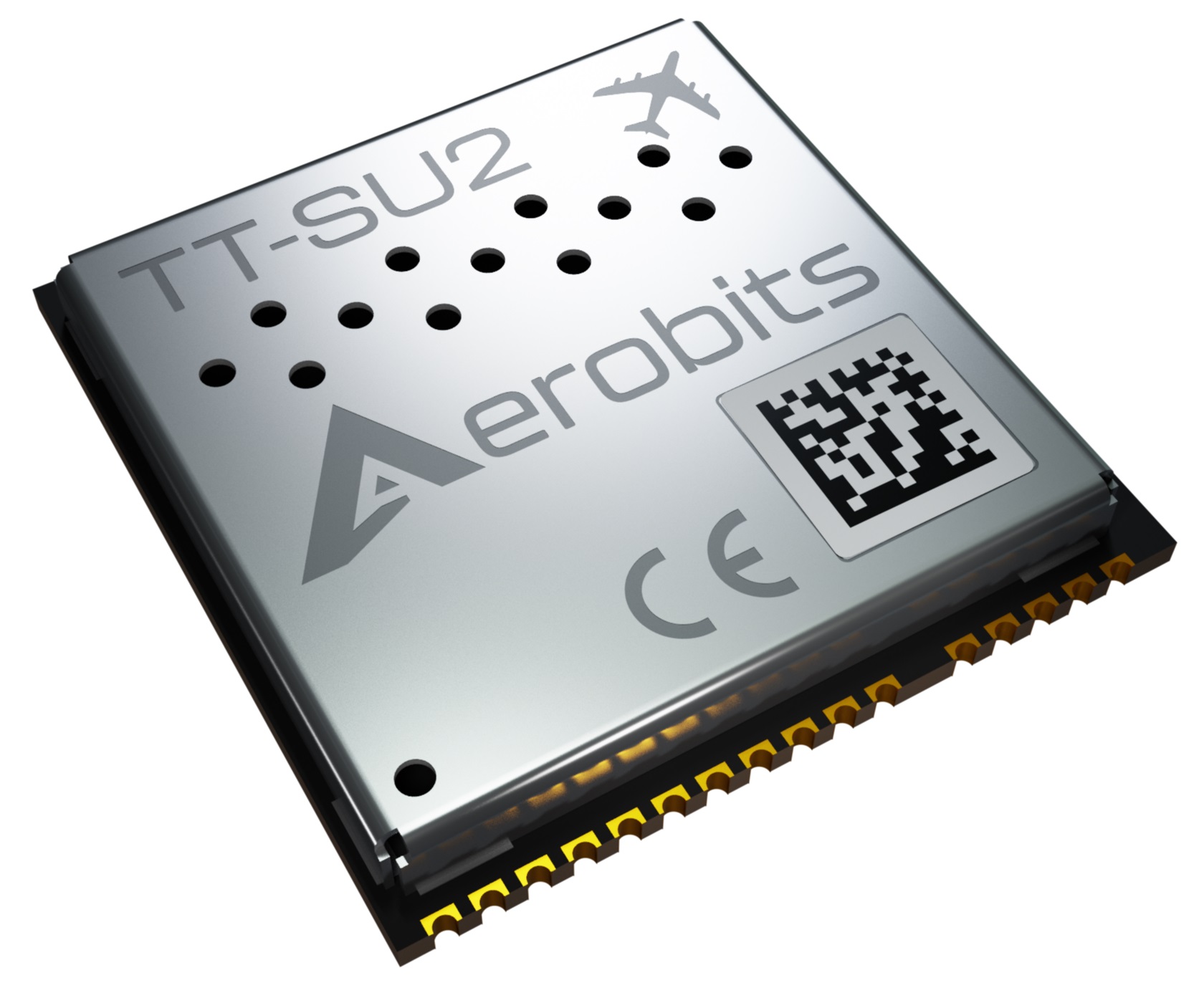

Single Core Processor FPGA OEM Receiver - Image 2

Single Core Processor FPGA OEM Receiver

$376.00

TT-SU2 is a high-quality and low-price OEM ADS-B/GNSS receiver/UAT receiver series operating at 1090MHz and 978MHz. It is based on the proven FPGA-In-The-Loop™ technology, a unique combination of a single-core processor and an FPGA. The patented solution allows high-speed RF data processing with a significantly reduced number of electronic components. Simultaneously, the module’s simultaneous miniaturization and OEM nature open various possible applications.


Ships From: Poland
Supplier: Aerobits SKU: OEM Receiver TT-SU2 Categories: , , Tags: , , , More From:

Single Core Processor FPGA OEM Receiver TT-SU2 with ADS-B, GNSS, UAT

TT-SU2 is a high-quality and low-price OEM ADS-B/GNSS receiver/UAT receiver series operating at 1090MHz and 987MHz. It is based on the proven FPGA-In-The-Loop™ technology, a unique combination of a single-core processor and an FPGA. The patented solution allows high-speed RF data processing with a significantly reduced number of electronic components. Simultaneously, the module’s miniaturization and OEM nature open various possible applications.

The basic version of the module offers the possibility of receiving and decoding ADS-B and Mode-A/C/S in different modes. The analysis of the power/quality of the RF signal and the use of time stamps facilitates the implementation of multilaterations, and the fast UART interface and easy configuration with AT commands allow for the simple integration of the module with the user’s system. In addition, extra interfaces open the way to customizing the firmware and extending the module with non-standard functions. Several communication interfaces, protocols, and unique functionalities are available on request.

Features:

  • Fastest ADS-B implementation on a surface of < 4 cm2
  • Receiving ADS-B, Mode-A/C/S with RF signal strength/quality analysis
  • Timestamp (raw data only) for multilateralism
  • Multiple supported protocols, i.a., RAW HEX, CSV, AERO, MAVLink, ASTERIX, GDL90
  • Integrated high-quality GNSS position source
  • Best-in-class aircraft tracking
  • Receiving UAT
  • Firmware update capability
  • High-resolution ADC with real-time signal processing; best-in-class aircraft tracking
  • High sensitive front-end, jamming, and ESD protection (only version b) with ranges over 150 km (open space, 1dBi antenna)
  • Simple module integration via UART interface and AT commands
  • Scalable OEM solution with enormous customization potential (additional functions or interfaces on request)
  • Firmware update capability (uC and FPGA)
  • Designed to meet the MOPS defined in TSO-C199

Application:

  • SAA / DAA (Sense and Avoid / Detect and Avoid)
  • UAS ground stations and high-density traffic surveillance
  • UTM / U-Space construction (traffic surveillance network)
  • Traffic-flow analysis and statistics
  • Monitoring of the 1090 MHz band (signal integrity check)
  • ADS-B/In/Out devices that meet the NextGen/SESAR philosophy

Additional information

Variant

Version a – antenna input on pin, Version b – antenna input to UFL connector

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Aerobits is a specialized developer of miniature avionic systems, such as transponders, for unmanned aerial vehicles, UAVs, and drones. Using patented technology, our hardware and software solutions process radio signals on minimal surfaces. This concept is at the core of our OEM modules low-level assembly function modules, which are the basic building blocks of miniaturized avionics.

We support global initiatives to integrate UAS into civilian airspace, develop the path towards full autonomy, and specialize in air traffic control systems, essential components of future UTM unmanned traffic management and U-Space solutions.

UAS entered the orderly airspace that until now was used only by manned air traffic. Legal regulation of the use of the airspace is insufficient for many reasons and forces the search for system concepts. A hint is aviation solutions and procedures that have evolved over the years along with the growing traffic volume. With various radars, ATMs Air Traffic Management can locate manned aircraft and guarantee safe separation between them. Also, unmanned systems like UTM Unmanned Traffic Management are planned to be implemented. UTM will be nothing else but a functional extension of ATM. It is about integrating drones into the airspace, which is seen as one of the most significant challenges of modern aviation. The main difficulty is to ensure anti-collision for all airspace users, in line with the DAA Detect and Avoid concept. This goal is achieved by maintaining system compatibility between manned and unmanned aviation. Therefore, it is necessary to miniaturize the avionics, which will allow the installation of appropriate systems on small drones. The intensification of global activities towards including UAS in the airspace shows the idea of fusing many information technologies. In addition to micro-avionic systems, UAS will be equipped with Wi-Fi, Bluetooth, and LTE technologies. It will allow easier identification and tracking by local airspace managers.
