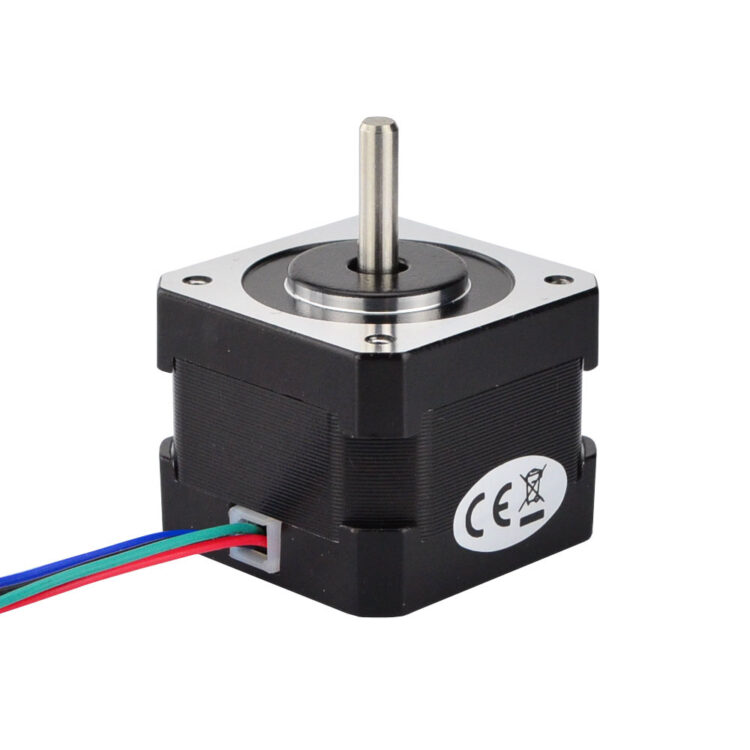

Stepper Motor 12V Nema 17 Bipolar for 3D Printer DIY CNC

$9.27 $6.87

This bipolar Nema 17 stepper motor is one of the most popular model, it with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in).

Description

Stepper Motor 12V Nema 17 Bipolar 1.8deg 26Ncm (36.8oz.in) 0.4A 42x42x34mm for 3D Printer DIY CNC

This bipolar Nema 17 stepper motor is one of the most popular model, it with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS13-0404S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 26Ncm(36.8oz.in)
  • Rated Current/phase: 0.4A
  • Voltage: 12V
  • Phase Resistance: 30ohms
  • Inductance: 37mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Shaft Diameter: Φ5mm
  • Front Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm with 4 pin connector
  • Weight: 230g




If applicable, the Product Documentation, Reference Materials, CAD or Drawing file(s), Manuals and Tutorials will be available for download upon purchase. The order confirmation email will include a Downloadable Link to the product file(s) which can also be downloaded from the My Account section if needed.
