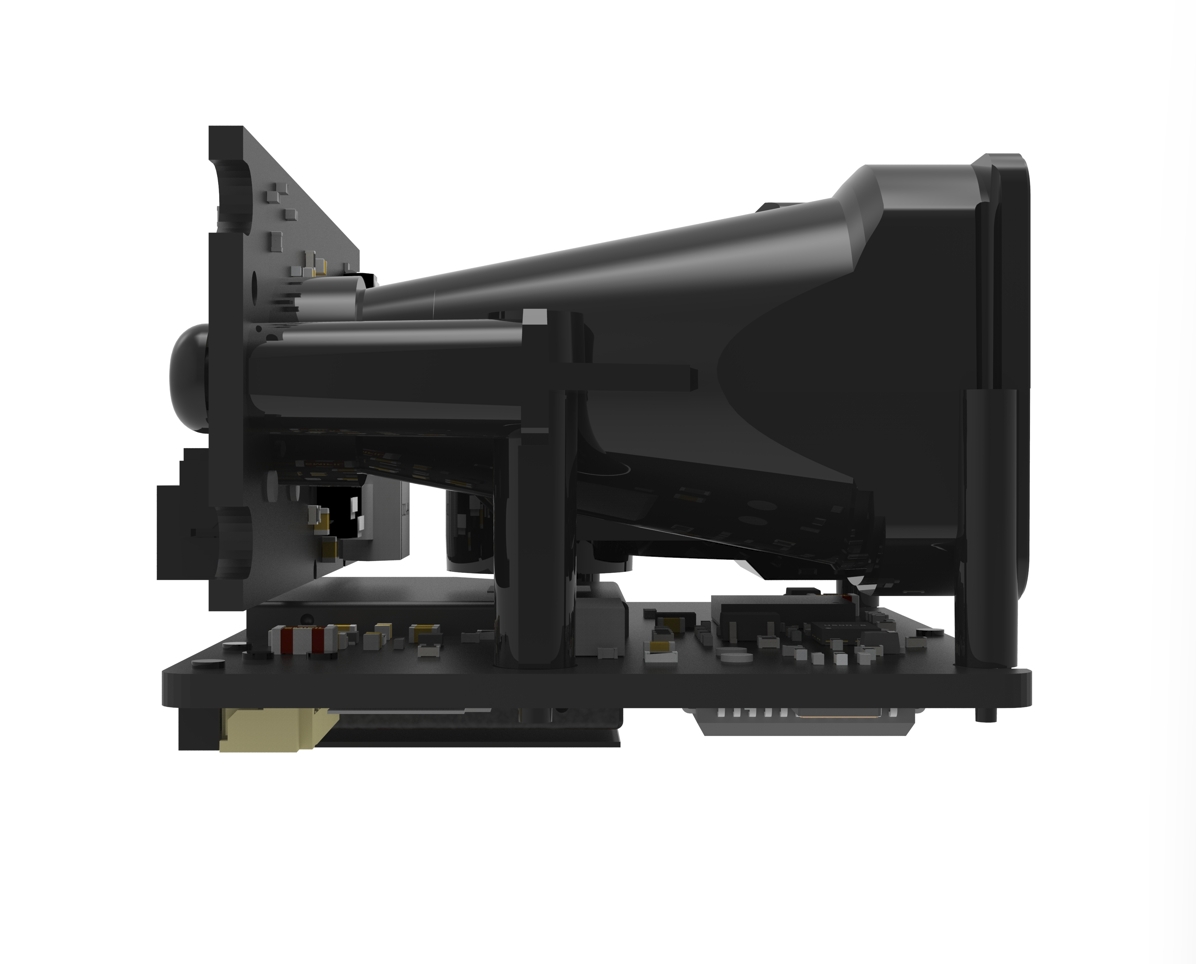

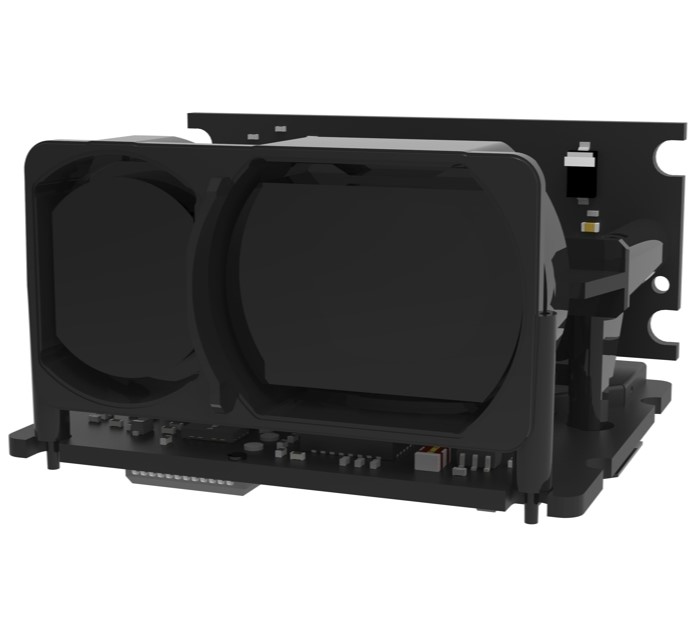

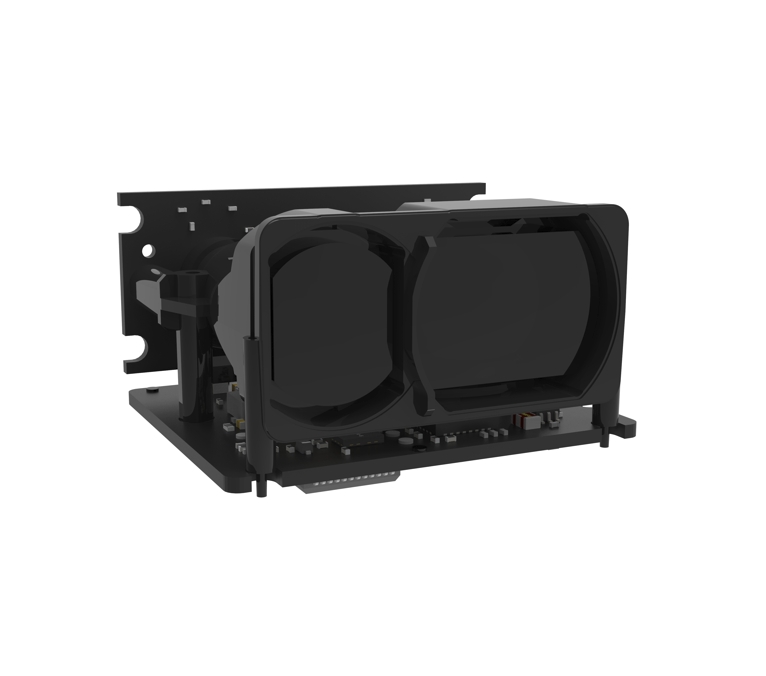

TFA300-L Series Long Range Ultra High Frequency Lightweight LiDAR Module for Drones, UAV, Vehicles
TFA300-L Series Long Range Ultra High Frequency Lightweight LiDAR Module for Drones, UAV, Vehicles - Image 2
TFA300-L Series Long Range Ultra High Frequency Lightweight LiDAR Module for Drones, UAV, Vehicles - Image 3

TFA300-L Series Long Range Ultra High Frequency Lightweight LiDAR Module for Drones, UAV, Vehicles

Original price was: $399.00.Current price is: $349.00.

  • Long Range: 0.1-290m@90% reflectivity& 100KLux, 0.1-100m@10% reflectivity 100KLux
  • Distance resolution: 1cm
  • FOV: <0.5°
  • Accuracy: ±10cm (< 10 m), 1% (≥ 10m)
  • Distance resolution：1cm
  • Output frame rate: up to 10,000Hz
  • Ambient Light Resistance: 100Klux
  • Power: DC 5 V ± 10%
  • Communication Interface: UART/CAN
  • Class 1 Eye-safe
  • Package: 1 unit TFA300-L LiDAR module (compatible with GH1.25mm 4pin type)


Ships From: China
Supplier: Benewake SKU: 290m LiDAR Module Categories: , , , Tags: , , , , More From:

TFA300-L Series Long Range Ultra High Frequency Lightweight LiDAR Module for Drones, UAV, Vehicles

Ultra-High-Frequency Lightweight UAV LiDAR

  • Wide range, as far as 290m
  • Ultra lightweight 10.5g
  • Multi-interface compatibility, able to be used in many fields
  • Small in size and easy to integrate
  • High-speed measuring up to 10,000Hz, high repeated accuracy
  • Excellent highlight interference, able to be used outdoors

Core advantages

  • Ultra-High-Frequency
  • Lightweight
  • Compact
  • Adapted for UAVs
  • Environmental Robustness
  • All-Weather Operational Reliability

Target customers

  • Electro-optical/infrared (EO/IR) Gimbals
  • SAR search and rescue Drone
  • Ultra High-speed FPV racing Drone

Main application functions

  • Camera focal distance auto-adjustment
  • Precise Localization
  • Stable-altitude Cruising
  • Obstacle Avoidance during High-speed Flight

Detailed Introduction

The TFA300 series includes the ultra-light TFA300-L without housing version and the TFA300 with IP67 protective housing. Both models feature a high frequency of up to 10,000 Hz. In applications such as Electro-optical/infrared (EO/IR) Gimbals, SAR search and rescue Drone, and Ultra High-speed FPV racing Drone, the TFA300 series facilitates camera focal distance auto-adjustment, precise localization, stable altitude maintenance during cruise, and obstacle avoidance during high-speed flight.

Ultra-High-Frequency Lightweight UAV LiDAR

The TFA300 series defaults to 1 ~ 1,000Hz and can be adjusted to 10,000 Hz under ultra-high-frequency working mode. It collects data 10,000 times per second, detecting objects at Mach 1 with real-time distance updates every 3.4 cm. This allows faster obstacle detection and distance updates, giving drones more time to react.

  • Frame Rate: 10,000 Hz (Max)
  • Range: 0.1 ~ 290 m (Max)
  • FoV: < 0.5°
  • Weight: 10.5 g（TFA300-L）

Lighter and More Compact

The TFA300-L weighs 10.5 g and is comparable to dual-stacked dice, while the IP67-rated TFA300 housing adds protective durability at 34.5 g. The series’ compact form factor enables direct integration into EO/IR gimbals, achieving SWaP-C (Size, Weight, Power, and Cost) optimization.

  • Dimensions: 32.0 mm × 30.2 mm × 20.2 mm (TFA300-L)
  • Accuracy: ± 10 cm (< 10 m)，1% (≥ 10 m)
  • Work Temperature: -20 ℃ ~ 60 ℃

Plug and Play, Optimized for Drones

TFA300 series uses industry-standard JST GH connectors to connect directly to the flight control platform without adapters. It features a CAN interface for next-gen flight control architectures. An SDK supporting the DroneCAN protocol offers plug-and-play compatibility with mainstream flight controllers, significantly reducing development time and deployment costs.

Environmental Robustness

All-Weather Operational Reliability

The TFA300 series is fully optimized for complex drone applications, including operation under extreme temperatures, 100 KLux ambient light, and harsh outdoor conditions such as rain, fog, and dust. It effectively resolves frequent false detection issues common in conventional LiDAR systems. This technology has enabled delivery drone customers to achieve over 400,000 accident-free package deliveries globally.

Application Scenarios

  • LiDAR Sensor
  • UAV LiDAR
  • Ultra-High Frequency LiDAR
  • Laser Ranging Sensor
  • Drone Gimbal / Pod  Ranging
  • EO/IR Gimbal / Pod Rangefinder
  • LiDAR Gimbal / Pod Positioning System
  • Laser distance meter
