TFA300 Series Long Range Ultra High Frequency LiDAR IP67 for Drones, UAV, Vehicles
Ultra-High-Frequency Lightweight UAV LiDAR
- Wide range, as far as 270m
- Ultra lightweight 34.5g
- Multi-interface compatibility, able to be used in many fields
- Small in size and easy to integrate
- High-speed measuring up to 10,000Hz, high repeated accuracy
- Excellent highlight interference, able to be used outdoors
Core advantages
- Ultra-High-Frequency
- Lightweight
- Compact
- Adapted for UAVs
- Environmental Robustness All-Weather Operational Reliability
Target customers
- Infrared (EO/IR) Gimbals
- SAR search and rescue Drones
- Ultra High-speed FPV racing Drone
Main application functions
- Camera focal distance auto-adjustment
- Precise Localization
- Stable-altitude Cruising
- Obstacle Avoidance during High-speed Flight
Detailed Introduction

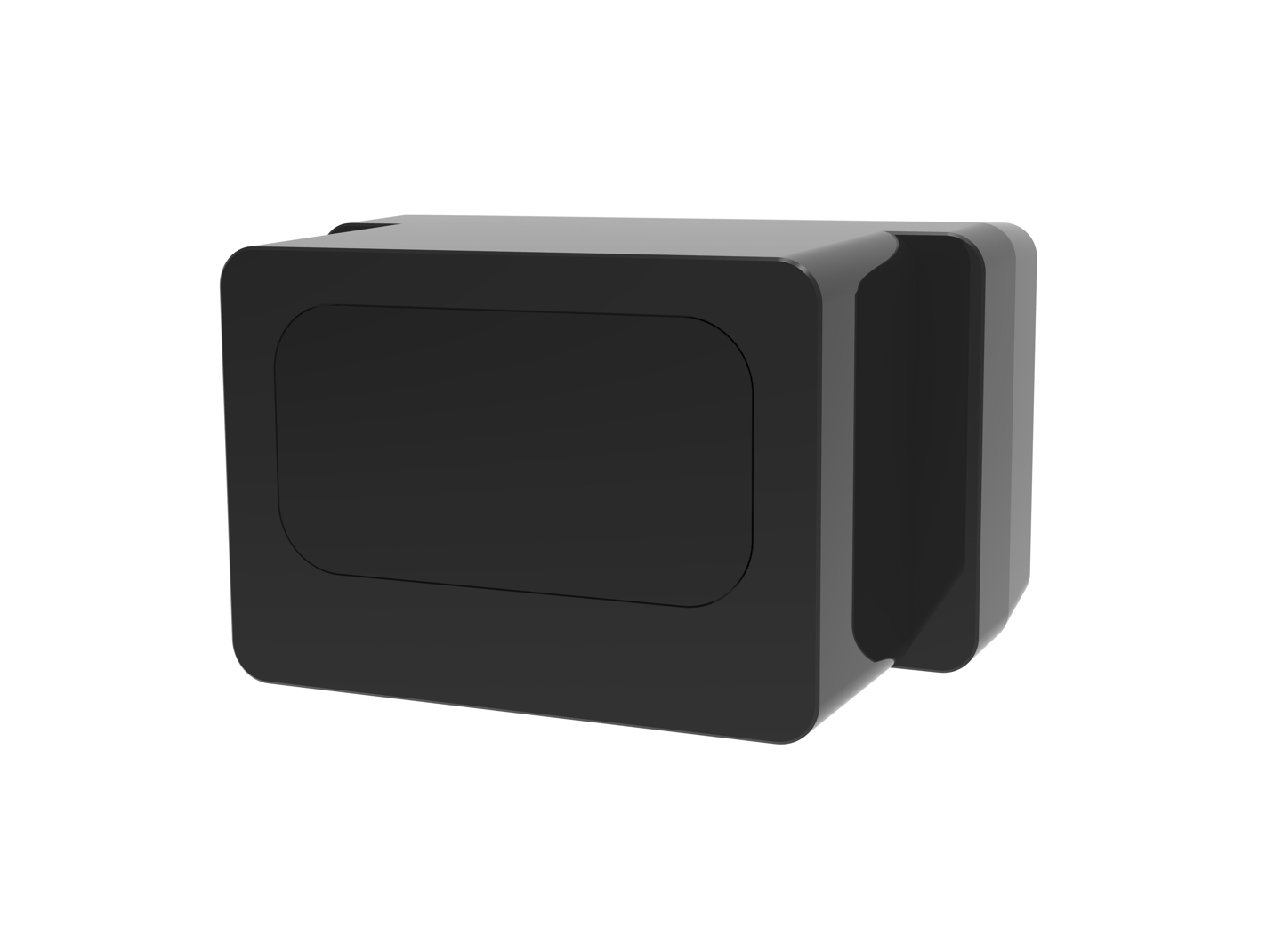

The TFA300 series includes the ultra-light TFA300-L without housing version and the TFA300 with IP67 protective housing. Both models feature a high frequency of up to 10,000 Hz. In applications such as electro-optical/infrared (EO/IR) Gimbals, SAR (search and rescue) Drones, and Ultra-High-Speed FPV racing Drones, the TFA300 series facilitates camera focal distance auto-adjustment, precise localization, stable altitude maintenance during cruise, and obstacle avoidance during high-speed flight.
Ultra-High-Frequency Lightweight UAV LiDAR
The TFA300 series defaults to 1 ~ 1,000Hz and can be adjusted to 10,000 Hz under ultra-high-frequency working mode. It collects data 10,000 times per second, detecting objects at Mach 1 with real-time distance updates every 3.4 cm. This allows faster obstacle detection and distance updates, giving drones more time to react.
- Frame Rate: 10,000 Hz(Max)
- Range: 0.1 ~ 270 m (Max)
- FoV: < 0.5°
- Weight: 34.5 g (TFA300)
Lighter and More Compact

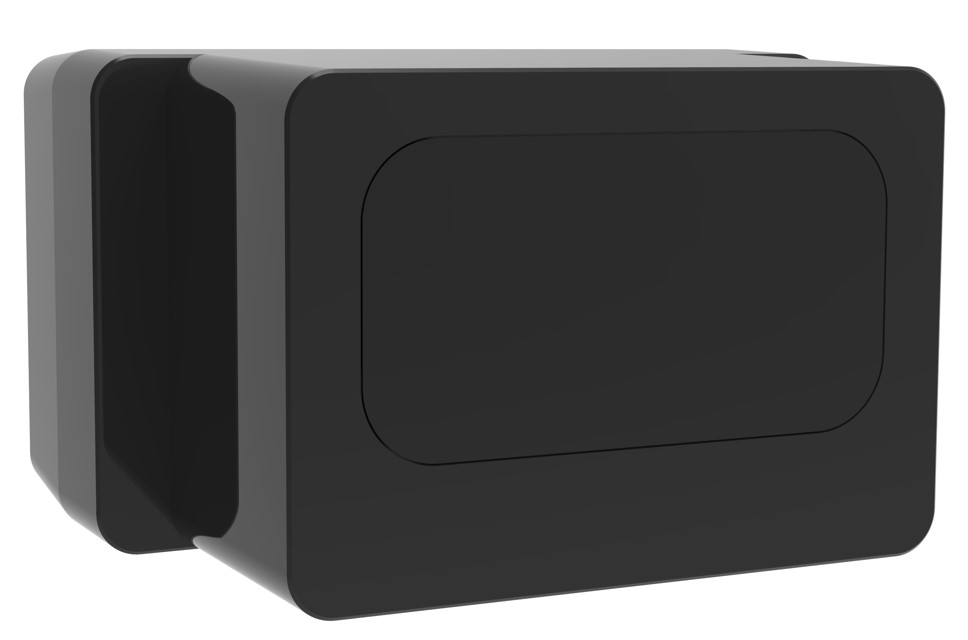

The IP67-rated TFA300 housing adds protective durability at 34.5 g. The series’ compact form factor enables direct integration into EO/IR gimbals, achieving SWaP-C (Size, Weight, Power, and Cost) optimization.
- Dimensions: 48.0 mm × 37 mm × 28.6 mm TFA300
- Accuracy: ± 10 cm (< 10 m)1% (≥ 10 m)
- Work Temperature: -20 ℃ ~ 60 ℃
- Plug and Play, Optimized for Drones
The TFA300 series uses industry-standard JST GH connectors for direct connection to the flight control platform without adapters. It features a CAN interface for next-gen flight control architectures. An SDK supporting the DroneCAN protocol offers plug-and-play compatibility with mainstream flight controllers, significantly reducing development time and deployment costs.
Environmental Robustness
All-Weather Operational Reliability
The TFA300 series is fully optimized for complex drone applications, including operation under extreme temperatures, 100 KLux ambient light, and harsh outdoor conditions such as rain, fog, and dust. It effectively resolves frequent false detection issues common in conventional LiDAR systems. This technology has enabled delivery drone customers to achieve over 400,000 accident-free package deliveries globally.
- LiDAR Sensor
- UAV LiDAR
- Ultra-High Frequency LiDAR
- Laser Ranging Sensor
- Drone Gimbal / Pod  Ranging
- EO/IR gimbal / Pod Rangefinder
- LiDAR Gimbal / Pod Positioning System
- Laser distance meter
