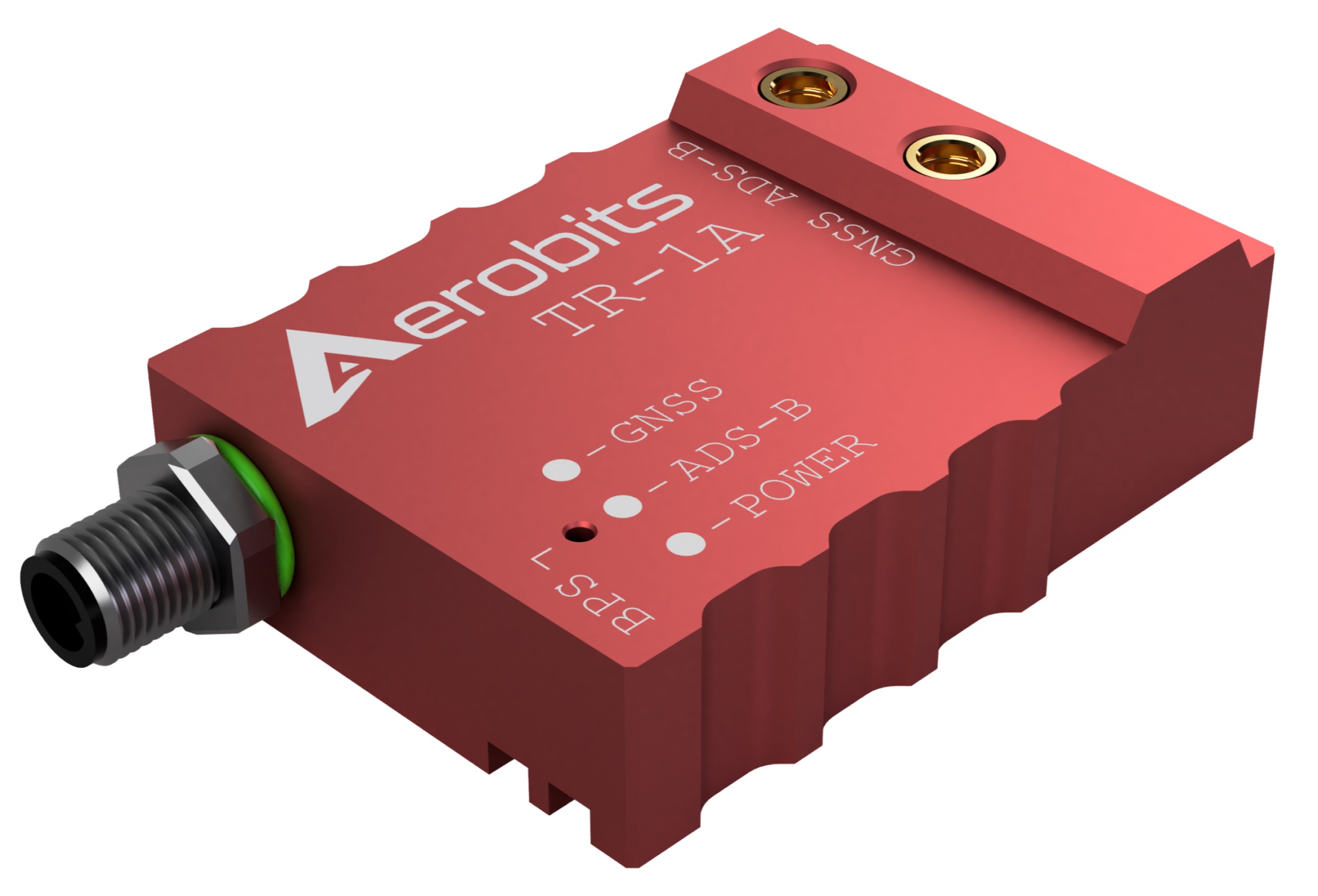

Aerobits TR-1A The Smallest ADS-B Transceiver for UAV Applications
TR-1A belongs to the second generation of the world’s smallest ADS-B transceivers, developed for civil and commercial Unmanned Aircraft Systems, with weight and size reduced by 33%. Operating on the 1090 MHz band, the device enables both receiving and transmitting ADS-B data with configurable RF output power of 0.25W, 0.5W, or 1W. The transceiver is designed as a fully standalone solution and requires no external devices for operation. It integrates a high-quality multi-GNSS receiver and a barometric pressure sensor, providing accurate positioning and altitude data for advanced UAV operations.
Built with durable aluminum housing and full ESD protection on all lines, TR-1A ensures reliable operation even in demanding environments. The device supports real-time aircraft tracking and paves the way for implementing Detect and Avoid algorithms, enabling the safe integration of UAS into controlled airspace. TR-1A is based on patented FPGA-In-The-Loop™ technology, enabling the reception of thousands of ADS-B frames per second while maintaining low power consumption and compact dimensions. The module supports MAVLink and AERO protocols, simple plug-and-play operation, and configuration via AT commands.
Designed to meet MOPS DO-260B requirements (except output power), TR-1A is an ideal solution for onboard traffic monitoring, position broadcasting, and advanced UAV traffic awareness systems.
Features
- Real-time aircraft tracking on the 1090 MHz band
- Patented FPGA-In-The-Loop™ technology
- The capability of receiving thousands of frames per second
- Integrated high-quality GNSS receiver and barometric altitude sensor
- Configurable RF output power: 0.25W, 0.5W, or 1W
- Implemented MAVLink and AERO protocols
- Low-power consumption and lightweight design
- Simple plug-and-play operation
- Configuration via AT commands
- Designed to meet MOPS DO-260B requirements (except output power)
- Compact dimensions: 35.0 × 25.0 × 8.5 mm
Applications
- On-board traffic monitoring
- Position broadcasting
- Detect and Avoid algorithm implementation
- UAV traffic awareness systems
- Civil and commercial drone operations
Basic Electrical Specification
| Parameter |
Value |
| Frequency Band |
1090 MHz |
| Input Voltage |
5V (+/- 5%) |
| Current Consumption |
Averaged 130mA |
| Sensitivity |
-80 dBm |
| RF Output Power |
Configurable +30 dBm (1W), +27 dBm (0.5W), +24 dBm (0.25W) |
| ESD Protection |
All lines protected |
| MAVLink (baud) |
115200 bps |
| AERO (baud) |
115200 bps (AT commands) |
| Main Connector |
PXMBNI05RPM04APC |
| Antenna Connector |
2 × MMCX |
| Dimensions |
35.0 × 25.0 × 8.5 mm |
| Weight (without cables and antennas) |
14 grams |
