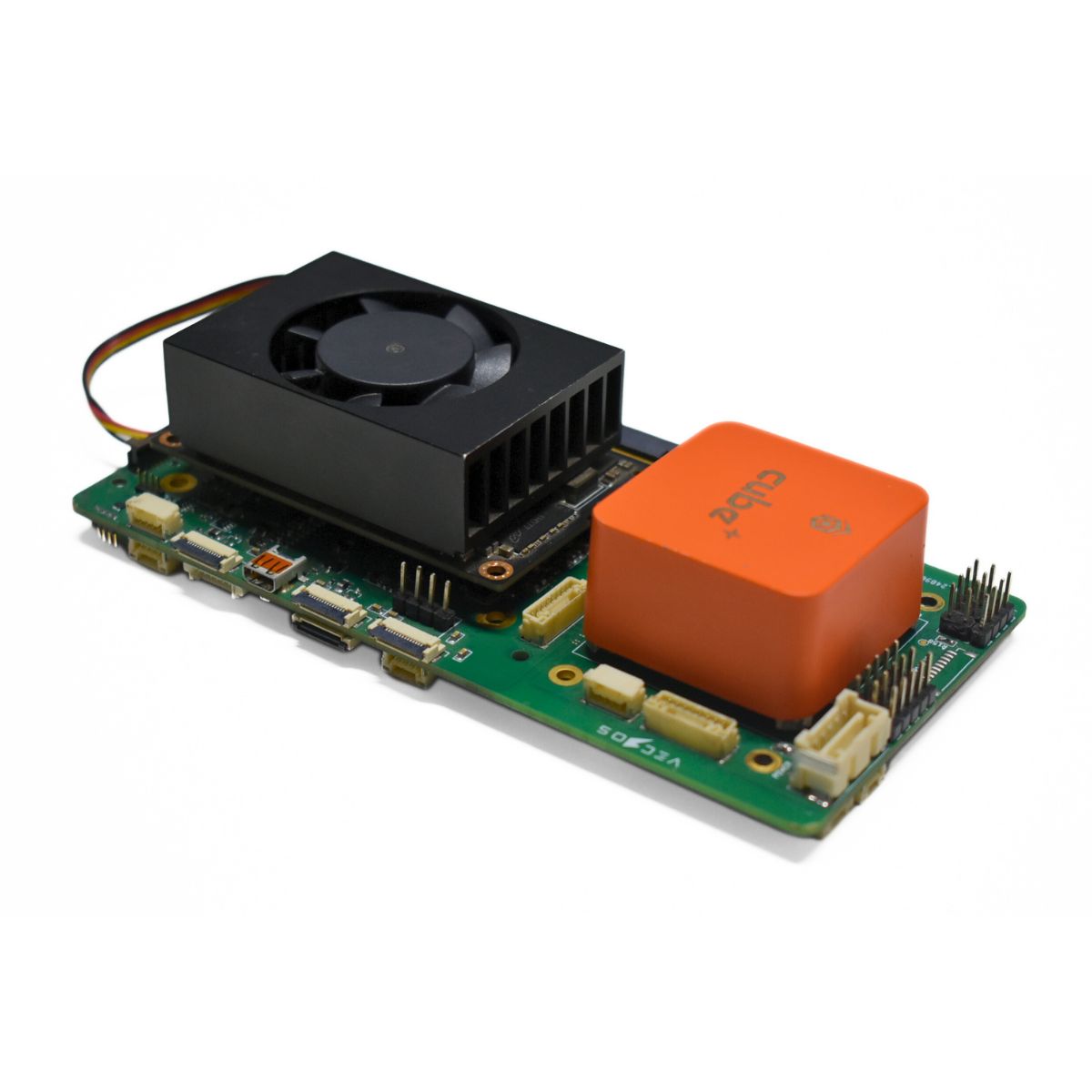

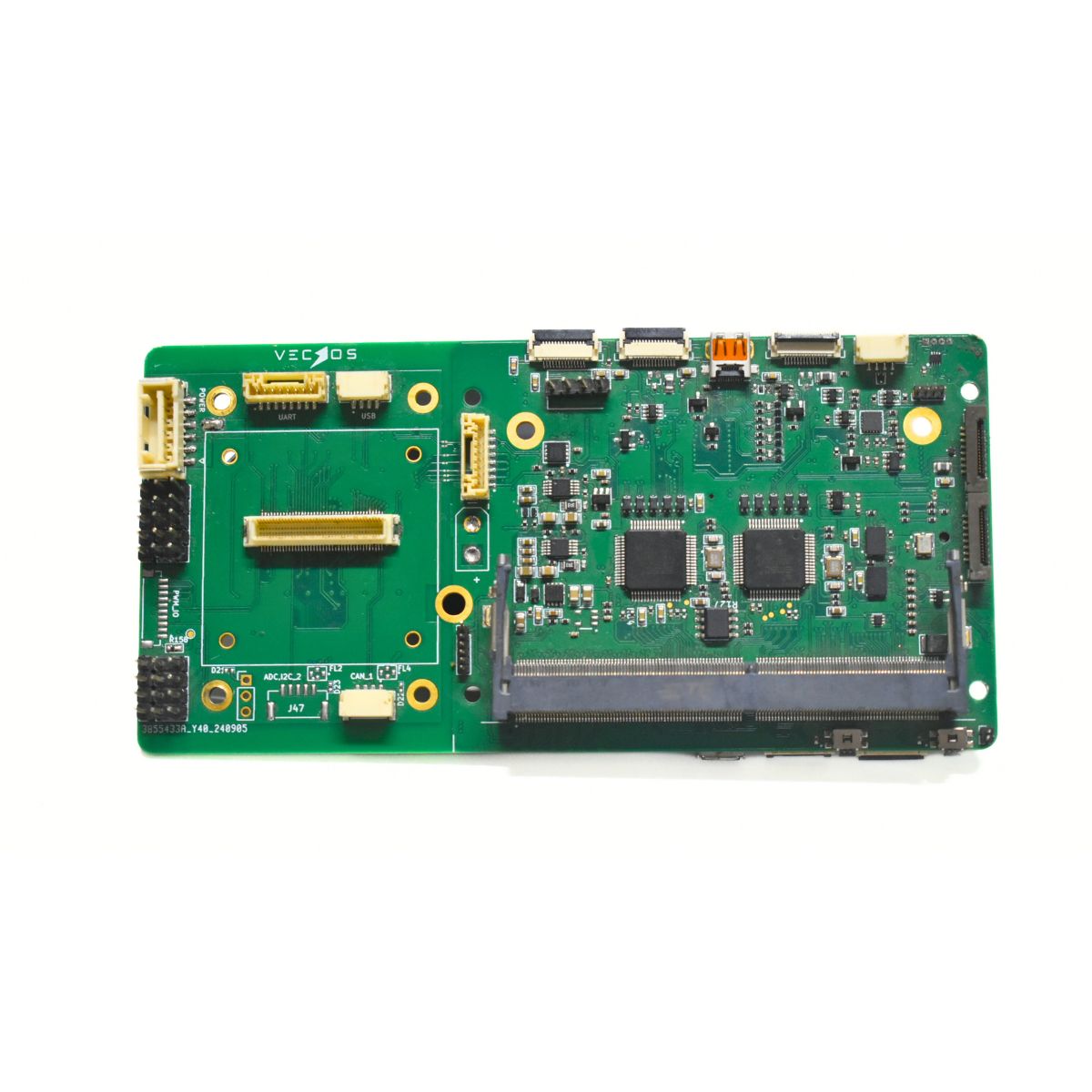

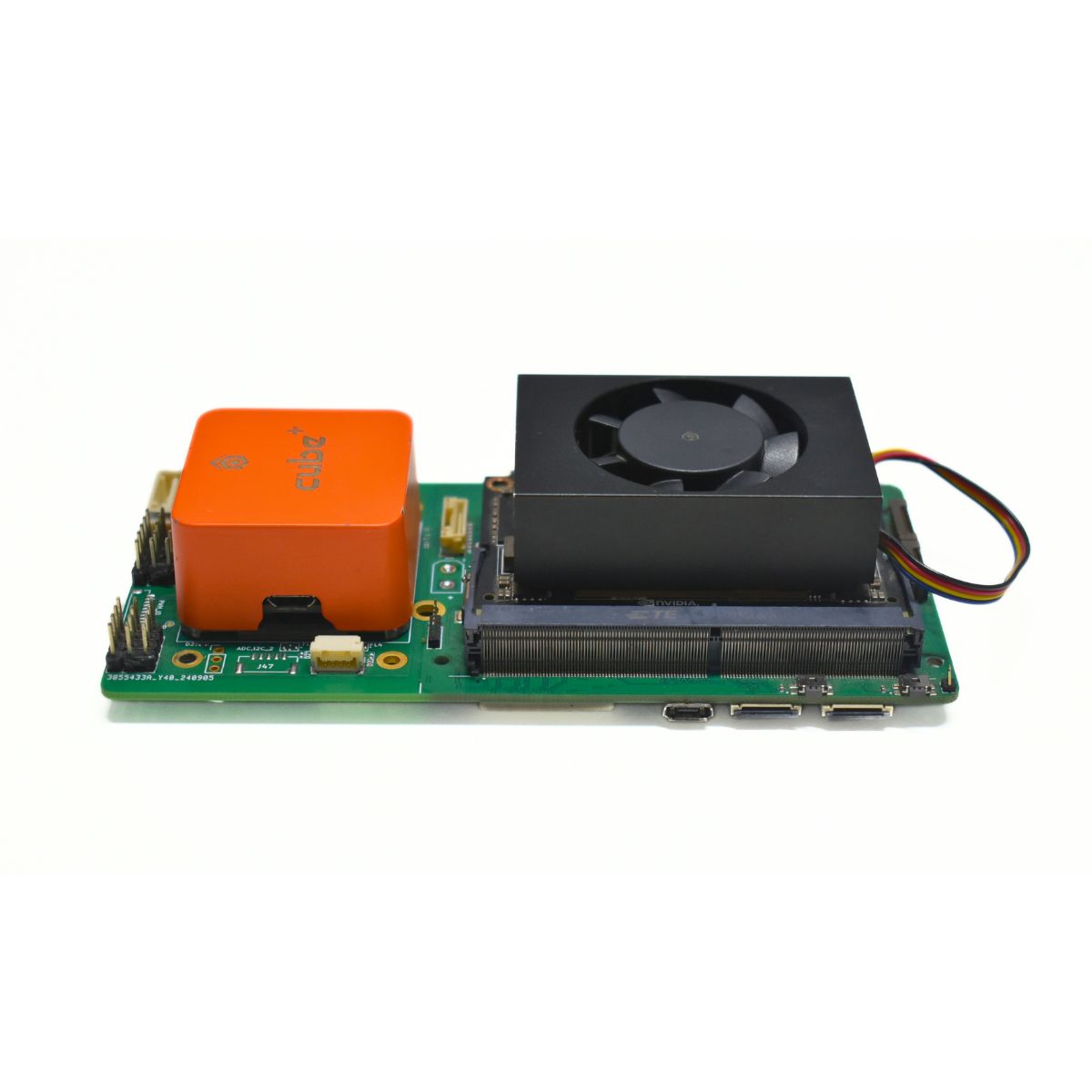

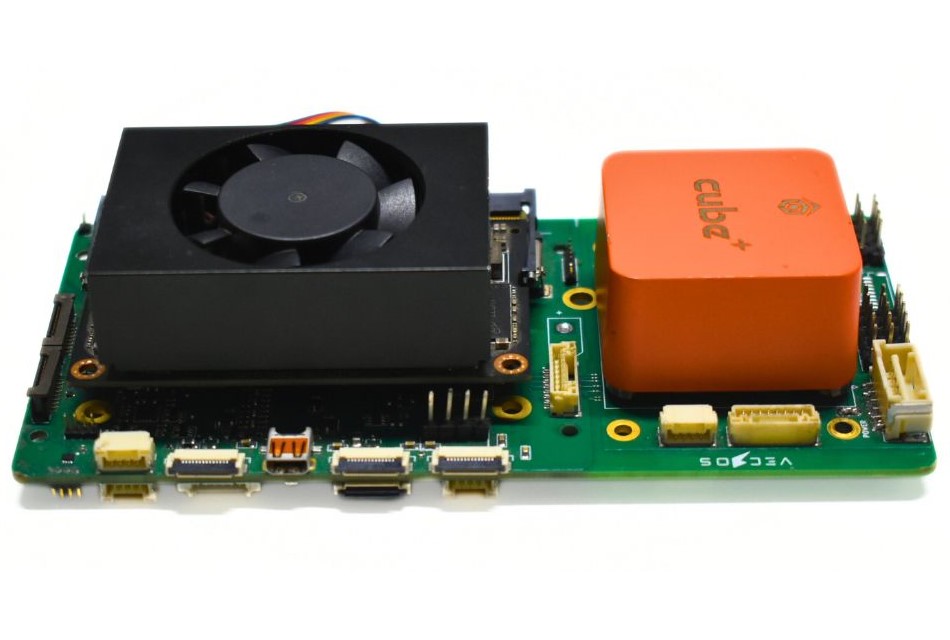

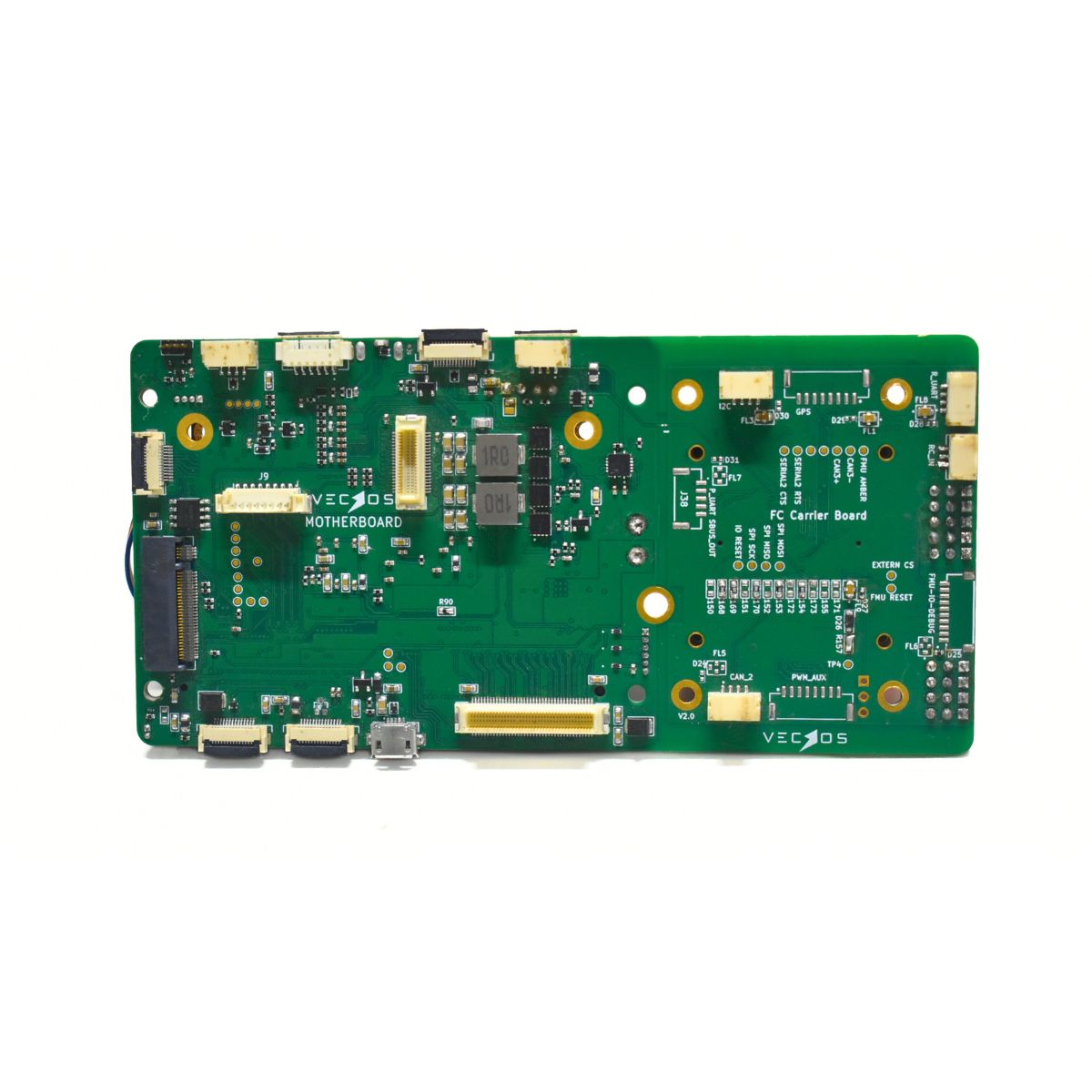

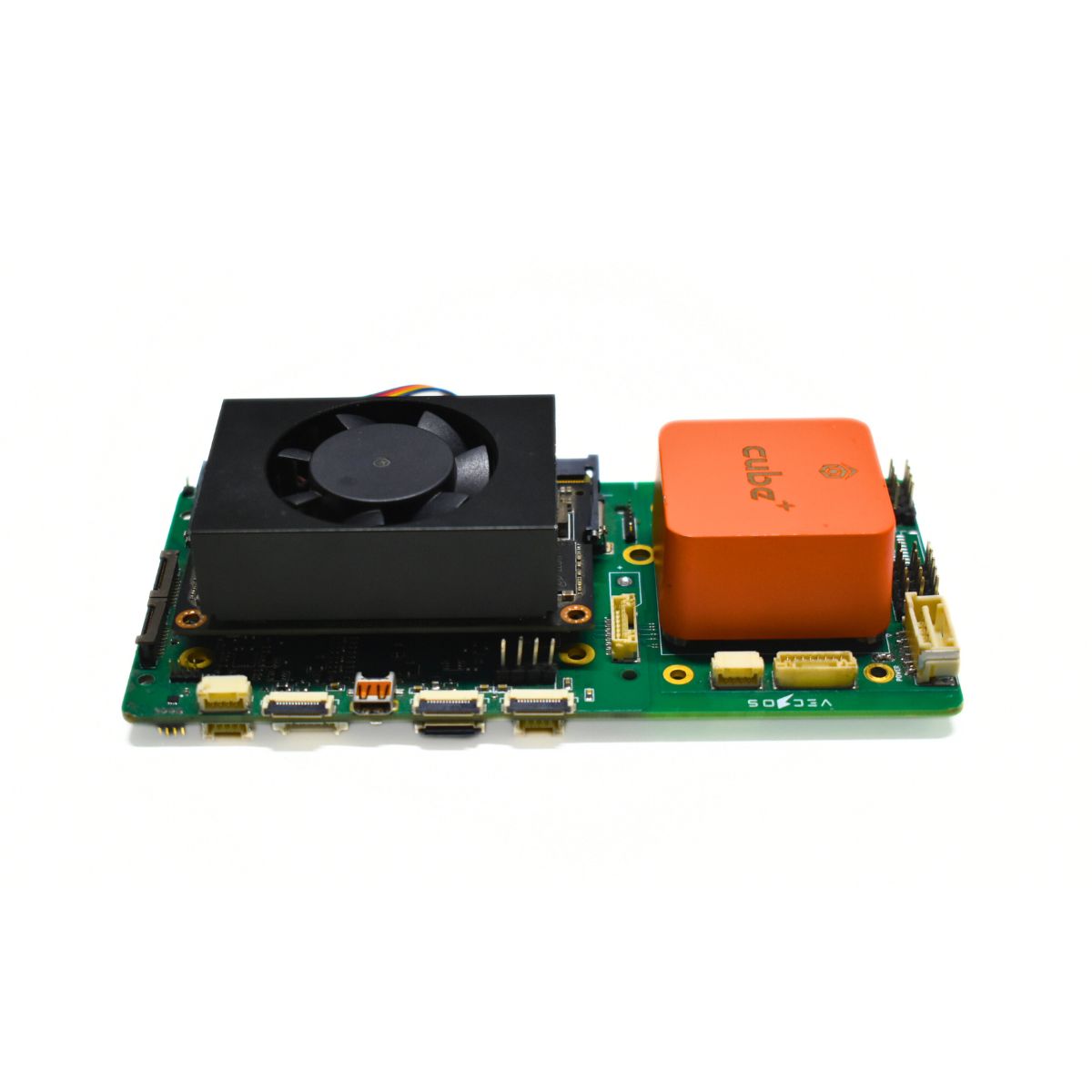

Jetcore FC Board for Advanced Drones, Robotics, and Industrial Edge Computing
The JetCore FC Board is an integrated, ultra-compact solution for advanced drones, robotics, and industrial edge computing. It uniquely merges the AI processing capabilities of the JetCore Carrier Board (for NVIDIA Jetson modules) with the robust flight and sensor interfacing of the Cube Carrier Board. This single-board system is engineered for mission-critical reliability, seamless connectivity, and compatibility with leading autopilot and AI software platforms. Its industrial-grade design, wide temperature tolerance, and vibration-resistant connectors make it ideal for demanding, space- and weight-constrained environments.
Specifications Table
Specification | Description |
---|---|
NVIDIA Jetson Compatibility | Xavier NX, Orin Nano, Orin NX, Nano, TX2 NX modules |
Flight Controller Compatibility | Cube Autopilot (Pixhawk ecosystem) |
USB Ports | 6 × USB 2.0, 1 × USB 3.0 (FPC Type), 1 × USB 2.0 (JST GH) |
Networking | 1 × Gigabit Ethernet (8-pin Molex connector) |
Video Output | 1 × Micro HDMI port (1920 × 1080 FHD) |
Storage Expansion | 1 × M.2 Key M interface for NVMe SSD |
PWM Outputs | 14 PWM servo outputs (6 FMU + 8 IO channels) |
RC Inputs | PPM, Spektrum/DSM, SBus |
CAN Ports | 2 × CAN Bus (JST GH) |
UART Ports | Multiple UARTs (JST GH) |
I2C Ports | 2 × I2C (JST GH) |
SPI Ports | 2 × SPI |
ADC Inputs | Voltage, current, and pressure sensing |
IMU/Motion Sensing | Integrated 6-axis IMU |
Security | Built-in Crypto Auth IC |
Power Input (Jetson) | 12 – 18 V DC |
Power Input (FCU) | 4 – 5.5 V DC |
Servo Rail Voltage | 3.3 V / 5 V |
Power Output | 12.75 W |
Operating Temperature | -40°C to +85°C |
Dimensions | 136 mm × 66 mm × 16 mm |
Weight | 55 grams |
Software Support | JetPack 4.x/5.x (Jetson), PX4, Ardupilot, QGroundControl, Mission Planner |
Key Features
- All-in-One Design: Combines high-performance AI computing and advanced flight control on a single board.
- Ultra-Lightweight & Compact: 55 grams and a slim profile (136 × 66 × 16 mm) for maximum payload efficiency.
- Industrial Temperature Range: Reliable operation from -40°C to +85°C.
- Comprehensive Connectivity: Includes USB, Ethernet, HDMI, CAN, UART, I2C, SPI, PWM, ADC, and more.
- Vibration-Resistant Connectors: JST GH and Molex connectors are used for secure operation in dynamic environments.
- Integrated Motion Sensing: Onboard 6-axis IMU for precise motion tracking.
- Enhanced Security: Built-in hardware crypto authentication for robust data protection.
- Drone Software Compatibility: Native support for PX4, Ardupilot, QGroundControl, and Mission Planner.
- Multi-Generation Jetson Support: Compatible with various NVIDIA Jetson modules for future-proofing projects.
- Typical Applications: It is ideal for autonomous drones/UAVs, robotics, industrial automation, edge AI vision, and research platforms.
Box Includes
Main Components
- 1 × JetCore FC Board
- 1 × NVIDIA Jetson Xavier NX Module (8GB)
- 1 × Heatsink Fan
- 1 × Cube Orange
- 1 × Quick Start Guide
JetCore Cables
- 1 × 4-Pin USB 2.0 Cable
- 1 × 8-Pin Telemetry + Camera Cable
- 1 × 4-Pin I2C Cable
- 1 × 4-Pin CAN Cable
- 1 × 6-Pin CAN + I2C Combo Cable
- 1 × FFC to USB Type-A Cable
- 1 × FFC to USB Type-C Cable
- 1 × XT30 to DC Jack Power Cable
Cube Carrier Board Cables
- 2 × 4-Pin CAN Cables
- 1 × 4-Pin I2C Cable
- 1 × 8-Pin PWM AUX Channel Cable
- 1 × 4-Pin USB 2.0 Cable
- 1 × 8-Pin GPS Cable
- 1 × 8-Pin Telemetry + Camera Cable
- 1 × 5-Pin ADC + I2C Cable
- 1 × Power Brick Cable
- 1 × 4-Pin UART Cable
- 1 × 3-Pin SBUS Cable
