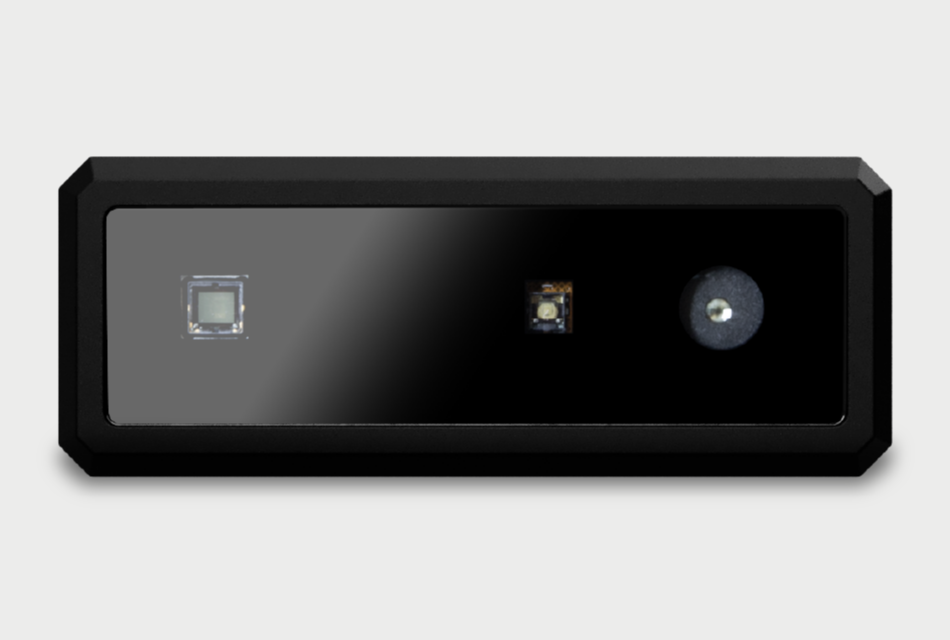

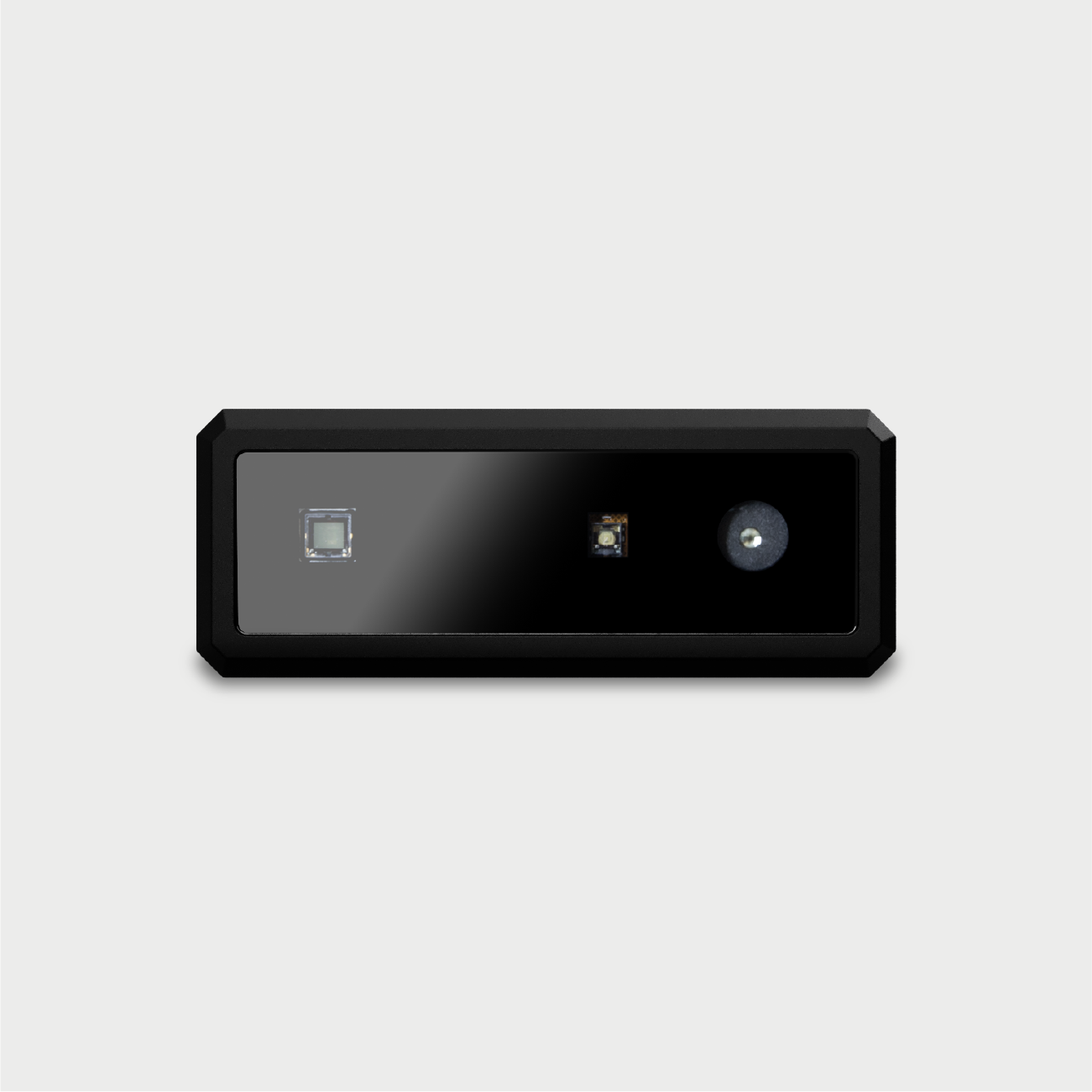

LIPSedge™ L235 High-Precision Structured Light 3D Depth Camera

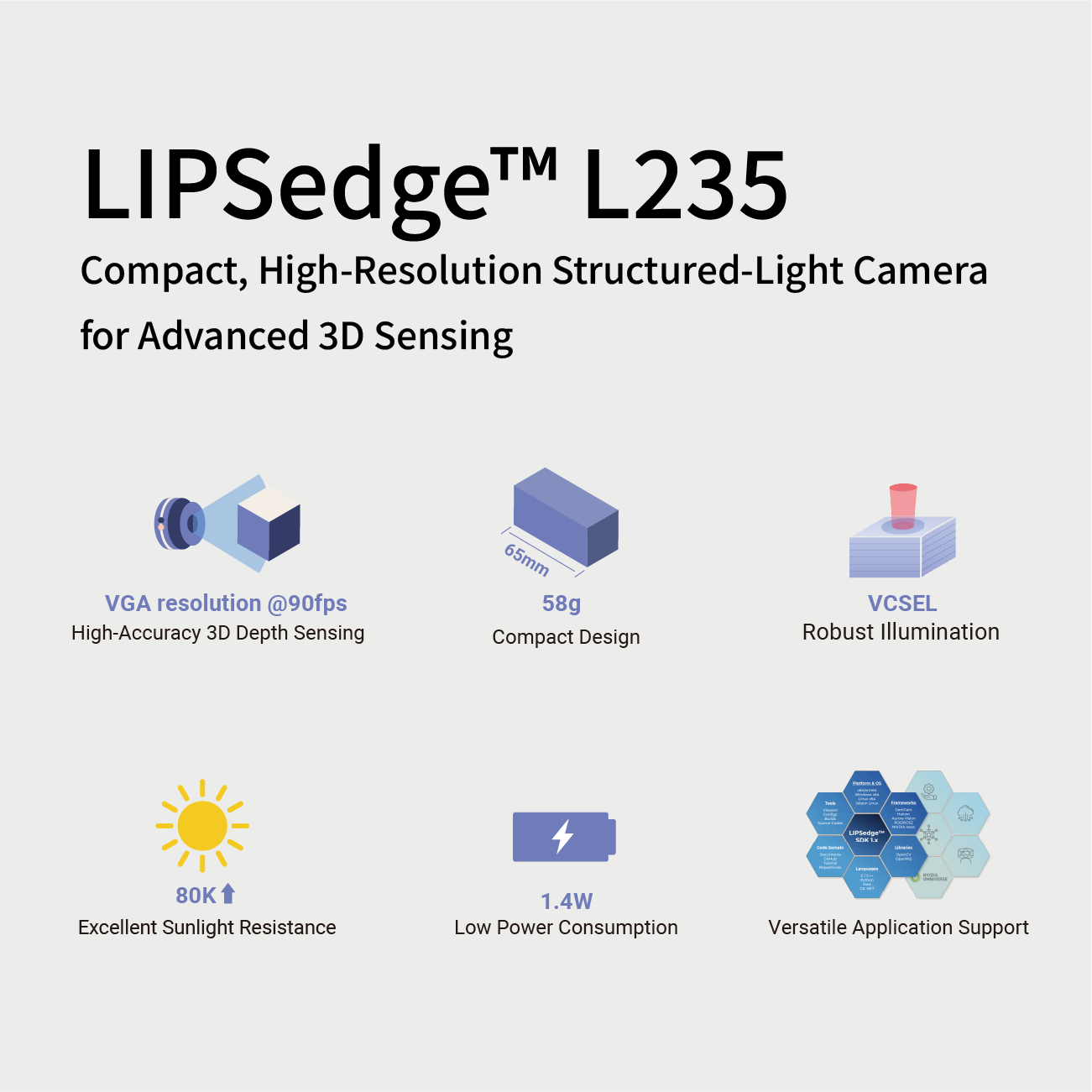

The LIPSedge™ L235 is a high-precision 3D Structured Light camera engineered for industrial and medical applications demanding sub-millimeter depth accuracy and seamless miniaturized integration. Optimized for smart handheld devices, medical assistance systems, and Human-Machine Interaction (HMI), it delivers an exceptional Z-accuracy of ≤ 0.3% at 1 meter.
Featuring robust 80,000 Lux ambient light resistance and an ultra-compact form factor, the LIPSedge™ L235 provides developers with reliable, high-fidelity 3D sensing performance in both space-constrained environments and high-intensity lighting conditions.
Key Benefits:
- Seamless Miniaturized Integration: The ultra-compact modular design (65 x 25 x 22 mm) enables effortless embedding in space-critical hardware, making it ideal for industrial tablets, PADs, and medical handheld devices.
- High Ambient Light Resilience: Capable of operating reliably under up to 80,000 Lux of ambient light. It eliminates the need for specialized shading or lighting setups near windows or under high-power surgical lamps.
- Sub-Millimeter 3D Precision: Utilizes advanced structured light technology to achieve a Z-accuracy of ≤ 0.3% within a 1-meter range, providing the meticulous measurement required for 3D modeling, gesture recognition, and eye-tracking.
- Motion Blur Elimination: Integrated with a Global Shutter sensor and supporting up to 640 x 480 @ 90 fps, the camera captures rapid movements without motion blur or jello effects, ensuring fluid, real-time dynamic tracking.
- Streamlined Developer Workflow: Fully compatible with the LIPSedge™ SDK, offering cross-platform support for Windows 11 and Linux Ubuntu 24.04. It natively integrates with mainstream frameworks including ROS/ROS2, NVIDIA Isaac, OpenNI 2, and HALCON using C++, Python, C#, and Java.
Product Specifications
| Technology |
Structured Light |
| Ideal Working Distance |
0.4m – 1.0m+ |
| Minimum Working Distance |
0.4m |
| Frame Rate |
640 × 480 @ 90fps |
| Shutter Type |
Global Shutter |
| FoV (H x V x D) |
72° x 57° x 92° (± 2°) |
| Z Accuracy |
≤ 0.3% (up to 1m and 70% of FoV)
*The Accuracy will vary with distance. |
| Illumination Type |
Infrared |
| IR Wavelength |
940 nm VCSEL |
| Ambient Light Resistance |
80,000 Lux |
| Power Consumption |
1.4W (Typical) |
| Size (L x D x H) |
65 * 25 * 22 mm |
| Weight |
58g (with enclosure) / 18g (module) |
| Ambient Temperature |
0~40°C |
| Storage Temperature |
-20~60°C |
| Output Interface |
USB Type-C |
| Power Input |
DC 5v (1A) via USB |
| SDK Support |
OpenNI 2, OpenCV, NVIDIA Isaac, ROS/ROS2, HALCON supported |
| Supported OS |
Windows 11, Linux Ubuntu 24.04 |
| Working Environment |
Indoor |
Frequently Asked Questions (Q&A)
Q: How does the LIPSedge™ L235 differ from standard ToF cameras?
A: The L235 utilizes Structured Light technology, offering a significant advantage in close-range precision (up to 0.3% Z-accuracy). Compared with ToF cameras, the L235 is optimized for applications requiring precise measurement and high-fidelity detail capture.
Q: Is the L235 suitable for outdoor or high-intensity light environments?
A: The L235 excels in high-intensity light environments, withstanding up to 80,000 Lux. However, while it handles bright light effectively, it is designed primarily for indoor or sheltered semi-outdoor use. It is not recommended for general outdoor environments as the product is not currently waterproof.
Q: Which programming languages and frameworks are supported?
A: Through the LIPSedge™ SDK, developers can leverage Python, C++, C#, and Java. Furthermore, it natively supports leading robotics and AI frameworks, including ROS/ROS2 and NVIDIA Isaac.
Q: What is the power consumption? Will it cause handheld devices to overheat?
A: The L235 is engineered for high efficiency with an ultra-low typical power consumption of only 1.4W. This low thermal footprint effectively prevents overheating and extends the battery life of host handheld or mobile devices.
