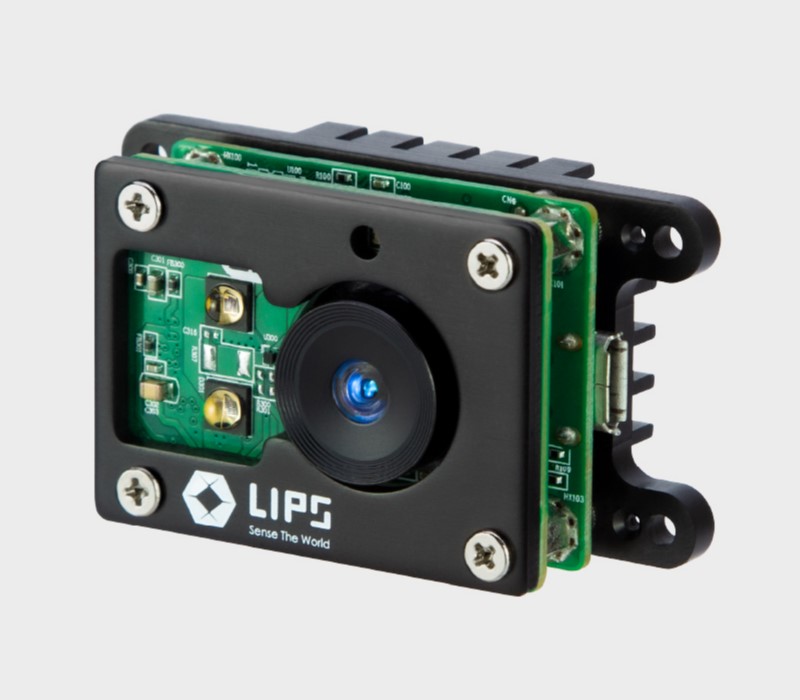

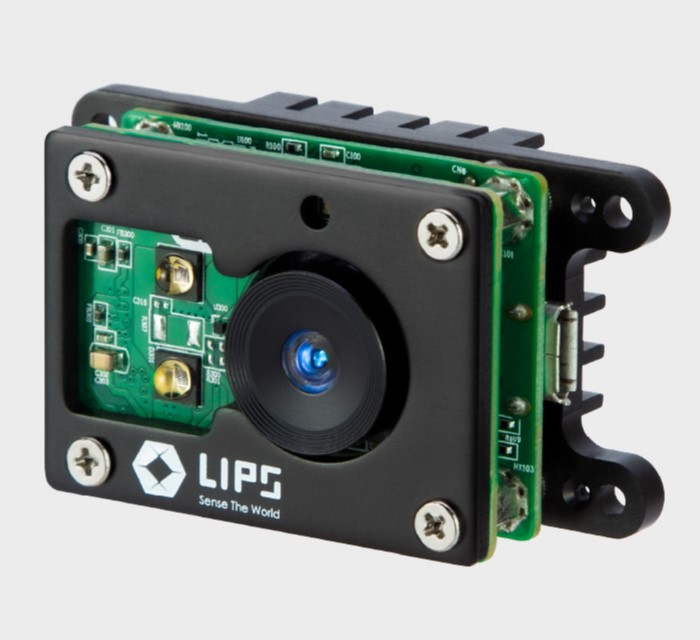

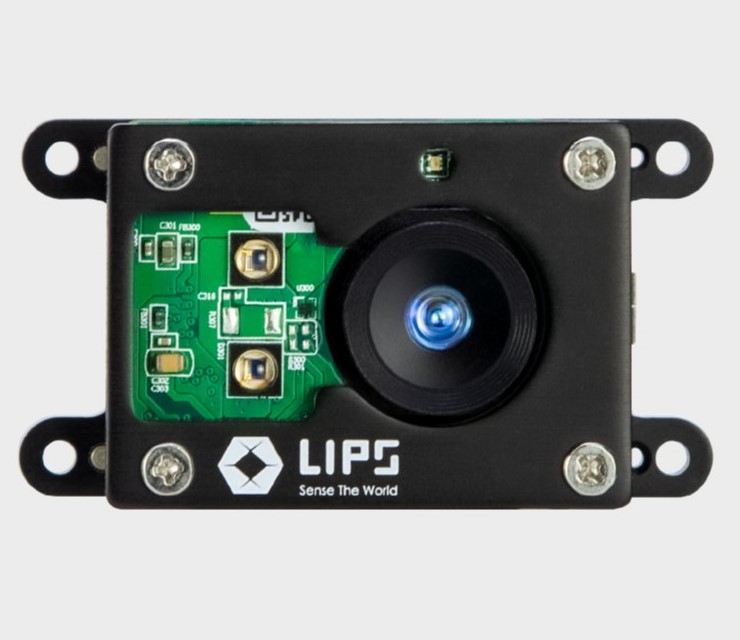

LIPSedge M3 LED 3D ToF Embedded Camera for Embedded Systems
Like its larger-cased sibling, the DL, the M3 uses similar sensing technology. It has evolved into a more compact, neater form, featuring an innovative modular design for embedded systems that operate reliably in both indoor and outdoor environments. Furthermore, this device includes a built-in IMU (accelerometer and gyroscope), enabling additional applications.
LIPSedge™ M3 is an innovative 3D Modular Camera targeting embedded systems with a built-in IMU for interactive applications.
Using similar sensing technology to its larger-cased sibling, the LIPSedge™ DL, the LIPSedge®M3 has adopted a more compact form factor. It features a smaller form factor and a pioneering modular design specifically for embedded systems that require precise operation. Furthermore, this device includes a built-in IMU (accelerometer and gyroscope) that enables additional applications, such as Gesture Control, People Counting, Behavior Analysis, Digital Signage, and Elevator Capacity Measurement.
USB Plug & Play: Works straight out of the box by plugging into a host through a USB 2.0 Micro-B interface
Open NI & OpenCV: Development support with Open NI and OpenCV SDK
Cross-platform: Cross-platform OS support on Windows & Linux. Cross-platform HW support on NVIDIA, Intel & Raspberry Pi
Success Case
The pandemic has accelerated the adoption of Smart Building applications, such as people-counting for occupancy monitoring and building management. LIPSedge M3 is a compact embedded 3D camera that captures only depth information and is GDPR-compliant by design.
Key Product Features
1. Compact Dimensioning for embedded integration: Two Versions (illumination): LED (indoor), Laser (Indoor / Semi-outdoor)
2. Ready for Multi-ToF Sensing Application
- (Optional) Up to 4 sensors in parallel operation.
- (Customized) Maximum 10 M3 sensors parallel sensing capability.
3. Solution Ready Package from LIPS: LIPSense – Hand Gesture Control Solution
- Developer Friendly
- Free SDK (OpenNI/OpenCV Compatible) Download & Support from LIPS
- Designed & Built For Your Applications
- Gesture Control, AR/VR/MR, People Counting, Behavior Analysis, Digital Signage, Elevator Capacity Measurement.
- Depth Data
- XY Resolution: 80×60@30fps
- Depth FOV: H74.1xV57.5xD92
- 2xLED @850nm
- Package includes
- LIPSedge® M3 x1
- USB2.0 Y-Cable x1
- Quick Start Guide x1
- Compact ToF Depth Sensor
- Optimized for embedded applications
- Accuracy: Up to 1% (typical)
​Time of Flight 3D
- Only 32 g / L x W x H: 51 x 28 x 22.4 mm
- FoV 74.1° x 57.5° / Range 0.2 ~ 4 m
- Built-in 6-axis IMU
Applications
- People Counting
- Hand Gesture Recognition
- Storage Level Monitoring
- Object Recognition
- Space Occupancy Monitoring
